UtilityPerformance profile

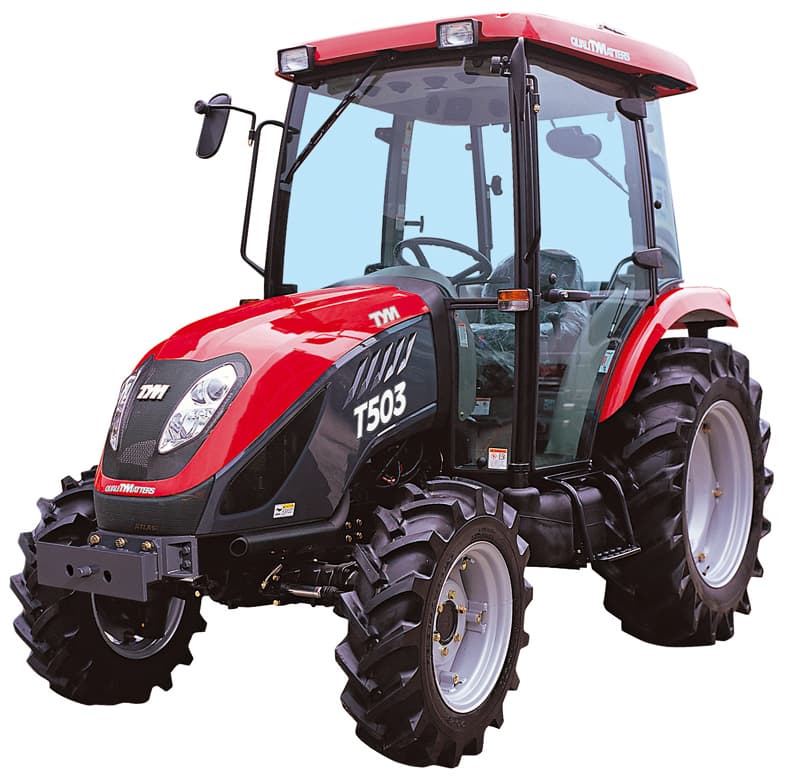

TYM T503
The TYM T503 is a versatile utility tractor built for farmers who need a reliable workhorse. This 4WD machine comes with a powerful Caterpillar C2.2 diesel engine, producing 50.7 hp at 2800 rpm. The engine's power output is average for its class, while its rated rpm is very high compared to similar tractors. With a liquid-cooled system and 9-quart coolant capacity, this tractor is designed to handle tough jobs without overheating. The T503 features a sync shuttle transmission with 16 forward and 16 reverse gears, giving operators plenty of options for different tasks. Its 4x4 MFWD chassis and power steering make it easy to maneuver in various conditions. The tractor's compact size (141.3 inches long, 62.6 inches wide, and 101.9 inches tall) allows it to work in tight spaces, while its 4140 lb operating weight provides stability. Equipped with agricultural tires and a rear Type 1 hitch, the TYM T503 is ready for a wide range of farming applications.
ManufacturerTYMPower50.7 hpEngine4-cylTransSync shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 51hp
- Operating Weight
- 4,140 lb
- Transmission
- Sync shuttle
At a glance
How the T503 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
50.7 hp · 47th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T503 ranks at the 47th percentile for engine power among recorded utility tractors.
Overview
About the TYM T503
The TYM T503 is a versatile utility tractor built for farmers who need a reliable workhorse. This 4WD machine comes with a powerful Caterpillar C2.2 diesel engine, producing 50.7 hp at 2800 rpm. The engine's power output is average for its class, while its rated rpm is very high compared to similar tractors. With a liquid-cooled system and 9-quart coolant capacity, this tractor is designed to handle tough jobs without overheating. The T503 features a sync shuttle transmission with 16 forward and 16 reverse gears, giving operators plenty of options for different tasks. Its 4x4 MFWD chassis and power steering make it easy to maneuver in various conditions. The tractor's compact size (141.3 inches long, 62.6 inches wide, and 101.9 inches tall) allows it to work in tight spaces, while its 4140 lb operating weight provides stability. Equipped with agricultural tires and a rear Type 1 hitch, the TYM T503 is ready for a wide range of farming applications.
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T503 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,140lb |
Engine
| Make | Caterpillar |
|---|---|
| Model | C2.2 |
| Power | 50.7hp |
| Cylinders | 4 |
| Displacement | 135.2ci |
Transmission
| Type | Sync shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | ROPS |
Hydraulics
| Type | Dual gear pump |
|---|
Dimensions
| Length | 141.3in |
|---|---|
| Width | 62.6in |
| Height | 101.9in |
| Operating weight | 4,140lb |
Capacities
| Cooling system | 2.25gal |
|---|
Head to head
T503 vs. Utility median
How the TYM T503 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 50.7 hp | 55 hp | -8% | 47th |
| Engine Displacement | 135 ci | 183 ci | -26% | 33rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 4,140 lb | 5,303 lb | -22% | 39th |
| Length | 141 in | 137 in | +3% | 57th |
| Width | 62.6 in | 66 in | -5% | 42nd |
| Height | 102 in | 94.1 in | +8% | 70th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5050 | 50 hp | 4,410 lb | 1977–1983 | Compare → |
| Allis Chalmers FD5 | 50 hp | 5,412 lb | — | Compare → |
| Belarus 4055 | 50 hp | 4,750 lb | — | Compare → |
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery
TYM T503 photos
FAQ
Common questions
How powerful is the TYM T503?
The TYM T503 has an engine power output of 50.7 hp. It is powered by a 4-cylinder engine displacing 135.2 ci.
What type of hydraulic system does the TYM T503 use?
Hydraulics on the TYM T503 are Dual gear pump.
What is the working weight of the TYM T503?
The operating weight of the TYM T503 is approximately 4,140 lb.
What type of transmission does the TYM T503 have?
The TYM T503 uses a Sync shuttle transmission offering 16 forward gears.
What routine service does the TYM T503 need?
Regular maintenance for the TYM T503 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
