Versatile 145
The Versatile 145 is a powerful tractor built for tough farm work. It has a strong Cummins engine with 8 cylinders arranged in a V shape. This engine runs on diesel fuel and can produce 145 horsepower. The tractor is cooled by liquid, which helps it work hard without overheating. This tractor has a gear transmission with 9 forward gears and 3 reverse gears. This gives the driver good control over speed and power. The Versatile 145 is quite heavy, weighing 16,000 pounds. It has big agricultural tires, with 18.4-30 size on both the front and back. These tires help it move well in fields. The tractor also has a category III hitch, which lets it work with many different farm tools. It starts easily with an electric starter, making it simple to use on cold mornings.
ManufacturerVersatilePower145 hp(108.1 kW)Class100–150 HP tractors →Engine8-cylinderTransmissionGear
Key specifications
- Category
- Agricultural
- Engine power
- 145hp
- Operating weight
- 16,000 lb
- Transmission
- Gear
Category comparison
145 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
145 hp · 67th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 145 ranks at the 67th percentile for engine power among recorded agricultural tractors.
Overview
About the Versatile 145
The Versatile 145 is a powerful tractor built for tough farm work. It has a strong Cummins engine with 8 cylinders arranged in a V shape. This engine runs on diesel fuel and can produce 145 horsepower. The tractor is cooled by liquid, which helps it work hard without overheating. This tractor has a gear transmission with 9 forward gears and 3 reverse gears. This gives the driver good control over speed and power. The Versatile 145 is quite heavy, weighing 16,000 pounds. It has big agricultural tires, with 18.4-30 size on both the front and back. These tires help it move well in fields. The tractor also has a category III hitch, which lets it work with many different farm tools. It starts easily with an electric starter, making it simple to use on cold mornings.
Full specifications
Recorded specifications
General
| Manufacturer | Versatile |
|---|---|
| Model | 145 |
| Category | Agricultural tractor |
| Operating weight | 16,000lb(7,257 kg) |
Engine
| Make | Cummins |
|---|---|
| Power | 145hp(108.1 kW) |
| Cylinders | 8 |
| Displacement | 470ci(7.7 L) |
| Bore | 4.63in(117.5 mm) |
| Stroke | 3.5in(88.9 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Dimensions
| Operating weight | 16,000lb(7,257 kg) |
|---|
Tires
| Front | 18.4-30Convert |
|---|---|
| Rear | 18.4-30Convert |
Closest alternatives
145 compared with the nearest models by horsepower
Among agricultural tractors, the McCormick Intl XTX145 and the Renault Ares 715 are closest to the Versatile 145 in rated horsepower. The McCormick Intl XTX145 matches it on rated power and weighs 1,670 lb less, carrying 99 lb per horsepower against 110 lb. The Renault Ares 715 matches it on rated power and weighs 260 lb less. Of the 3 models, the 145 has the highest weight per horsepower at 110 lb per hp.
| Spec | Versatile 145 | McCormick Intl XTX145 | Renault Ares 715 |
|---|---|---|---|
| Engine power | 145 hp108.1 kW | 145 hp108.1 kW | 145 hp108.1 kW |
| Operating weight | 16,000 lb7,257 kg | 14,330 lb6,500 kg | 15,743 lb7,141 kg |
| Weight per hp | 110 lb/hp67 kg/kW | 99 lb/hp60 kg/kW | 109 lb/hp66 kg/kW |
| Displacement | 470 ci7.7 L | 410.6 ci6.73 L | 414.2 ci6.79 L |
| Cylinders | 8 | 6 | 6 |
| Transmission | Gear | Partial power shift | - |
| Drive | - | 4WD | 4WD |
Calculators
Calculators for the 145
PTO power
About 120 to 131 PTO hp
Estimated from the 145 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 145 hp tractor can run
Maximum size is about a 17 ft rotary cutter or a 14.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
128 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
145 hp is 108.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 18.4-30 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
145 vs. Agricultural median
Versatile 145 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 145 hp | 110 hp | +32% | 67th |
| Engine Displacement | 470 ci | 336 ci | +40% | 84th |
| Cylinders | 8 | 5.5 | +45% | 99th |
| Forward Gears | 9 | 16 | -44% | 20th |
| Operating Weight | 16,000 lb | 10,914 lb | +47% | 74th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 971–1,130 models).
Same manufacturer
Other Versatile models
Other manufacturers
Models with similar horsepower
Gallery

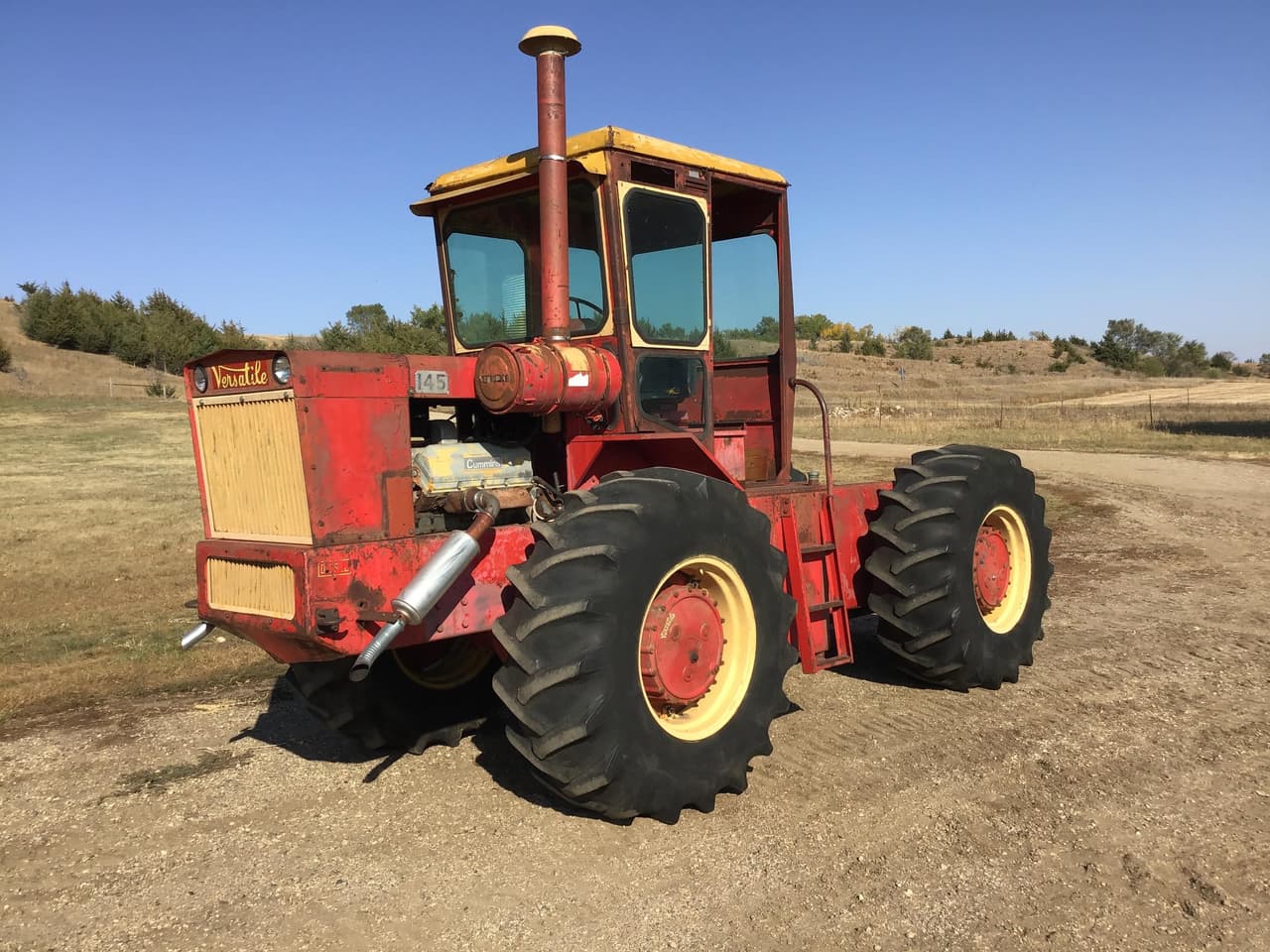

Versatile 145 photos
FAQ
Frequently asked questions
How powerful is the Versatile 145?
The Versatile 145 has an engine power output of 145 hp. It is powered by an 8-cylinder engine displacing 470 ci.
What is the working weight of the Versatile 145?
The operating weight of the Versatile 145 is approximately 16,000 lb.
What type of transmission does the Versatile 145 have?
The Versatile 145 uses a Gear transmission offering 9 forward gears.
What are the factory tire sizes for the Versatile 145?
The Versatile 145 comes with 18.4-30 front tires and 18.4-30 rear tires.
What three-point hitch category does the Versatile 145 use?
The Versatile 145 has a Category III three-point hitch.
What routine service does the Versatile 145 need?
Regular maintenance for the Versatile 145 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
