Versatile 570
The Versatile 570 is a powerful utility tractor built for tough jobs. It has a strong 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor uses a full power shift transmission with 16 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Versatile 570 has a Cummins QSX15 engine. This diesel engine is very big and strong compared to most tractors. It has 6 cylinders in a line and uses a turbocharger to make even more power. The engine can produce 570 horsepower, which is a lot for a tractor. The Versatile 570 is also very heavy, weighing 42,000 pounds. This weight helps it pull heavy loads and work in tough conditions. The tractor has a Category 3 hitch for attaching big implements and a special hydraulic system for powering tools.

Key specifications
- Category
- Utility
- Engine power
- 570hp
- Operating weight
- 42,000 lb
- Transmission
- Full power shift
Category comparison
570 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 570 ranks at the 99th percentile for engine power among recorded utility tractors.
Overview
About the Versatile 570
The Versatile 570 is a powerful utility tractor built for tough jobs. It has a strong 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor uses a full power shift transmission with 16 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Versatile 570 has a Cummins QSX15 engine. This diesel engine is very big and strong compared to most tractors. It has 6 cylinders in a line and uses a turbocharger to make even more power. The engine can produce 570 horsepower, which is a lot for a tractor. The Versatile 570 is also very heavy, weighing 42,000 pounds. This weight helps it pull heavy loads and work in tough conditions. The tractor has a Category 3 hitch for attaching big implements and a special hydraulic system for powering tools.
Full specifications
Recorded specifications
General
| Manufacturer | Versatile |
|---|---|
| Model | 570 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 42,000lb(19,050 kg) |
Engine
| Make | Cummins |
|---|---|
| Model | QSX15 |
| Power | 570hp(425 kW) |
| Cylinders | 6 |
| Displacement | 912ci(14.95 L) |
| Bore | 5.39in(137 mm) |
| Stroke | 6.65in(169 mm) |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Operating weight | 42,000lb(19,050 kg) |
|---|
Closest alternatives
570 compared with the nearest models by horsepower
Among utility tractors, the Versatile 575 and the CaseIH Steiger 580 are closest to the Versatile 570 in rated horsepower. The Versatile 575 is rated 5 hp higher and weighs 3,700 lb more. The CaseIH Steiger 580 makes 10 hp more and weighs 6,150 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the 570 has the lowest weight per horsepower at 74 lb per hp.
| Spec | Versatile 570 | Versatile 575 | CaseIH Steiger 580 |
|---|---|---|---|
| Engine power | 570 hp425 kW | 575 hp428.8 kW | 580 hp432.5 kW |
| Operating weight | 42,000 lb19,051 kg | 45,700 lb20,729 kg | 48,147 lb21,839 kg |
| Weight per hp | 74 lb/hp45 kg/kW | 79 lb/hp48 kg/kW | 83 lb/hp50 kg/kW |
| Displacement | 912 ci14.95 L | 912 ci14.95 L | 787 ci12.9 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Full power shift | Full power shift | Full power shift |
| Drive | 4WD | 4WD | Four-wheel Drive (4WD) |
Calculators
Calculators for the 570
PTO power
About 473 to 513 PTO hp
Estimated from the 570 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 570 hp tractor can run
Maximum size is about a 67.5 ft rotary cutter or a 58 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
86 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
570 hp is 425.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Versatile 570
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Cummins QSX15Amazon
Fits the Cummins QSX15 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Cummins QSX15Amazon
Fits the Cummins QSX15 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Cummins QSX15Amazon
Fits the Cummins QSX15 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Cummins QSX15Amazon
Fits the Cummins QSX15 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Versatile 570 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Versatile 570 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Versatile 570 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
570 vs. Utility median
Versatile 570 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 570 hp | 55 hp | +936% | 99th |
| Engine Displacement | 912 ci | 183 ci | +398% | 99th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 42,000 lb | 5,303 lb | +692% | 99th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other Versatile models
Other manufacturers
Models with similar horsepower
Gallery

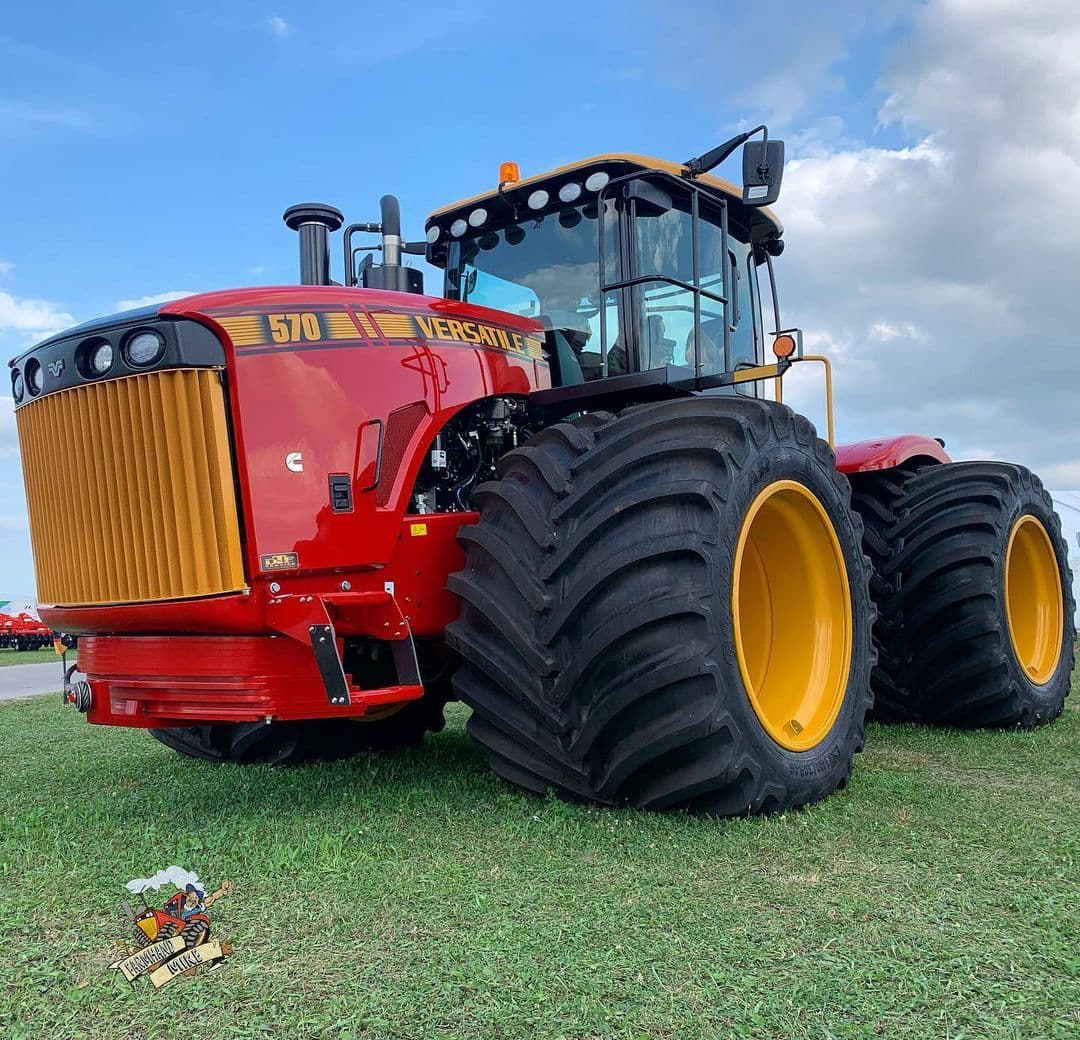

Versatile 570 photos




FAQ
Frequently asked questions
How much horsepower does the Versatile 570 have?
The Versatile 570 produces 570 hp from its 6-cylinder engine. Engine displacement is 912 ci.
How much does the Versatile 570 weigh?
The Versatile 570 weighs about 42,000 lb in operating condition.
What transmission is in the Versatile 570?
Transmission on the Versatile 570 is Full power shift, with 16 forward speeds.
What hydraulics does the Versatile 570 have?
The Versatile 570 uses a Closed center load sensing hydraulic system.
What three-point hitch category does the Versatile 570 use?
The Versatile 570 has a Category Category 3 three-point hitch.
What maintenance does the Versatile 570 require?
The Versatile 570 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
