Wagner WA-4
The Wagner WA-4 is a powerful utility tractor built for tough farm work. It has a strong 4-wheel drive system and can turn easily with its hydraulic power steering. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving the driver good control. Under the hood, the WA-4 has a General Motors diesel engine with 4 cylinders. This engine is very powerful for its size, producing 102 horsepower. It's cooled by liquid and doesn't use a turbocharger. The tractor is quite heavy, weighing 10,300 pounds, which helps it handle big jobs. It's also pretty big, measuring about 15.5 feet long, 6.5 feet wide, and 7 feet tall. The WA-4 has big 26-inch agricultural tires on both the front and back, giving it good traction in fields. It also has a high ground clearance of 14 inches, helping it move over rough ground easily.
ManufacturerWagnerPower102 hpEngine4-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 102hp
- Operating Weight
- 10,300 lb
- Transmission
- Manual
At a glance
How the WA-4 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
102 hp · 84th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The WA-4 ranks at the 84th percentile for engine power among recorded utility tractors.
Overview
About the Wagner WA-4
The Wagner WA-4 is a powerful utility tractor built for tough farm work. It has a strong 4-wheel drive system and can turn easily with its hydraulic power steering. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving the driver good control. Under the hood, the WA-4 has a General Motors diesel engine with 4 cylinders. This engine is very powerful for its size, producing 102 horsepower. It's cooled by liquid and doesn't use a turbocharger. The tractor is quite heavy, weighing 10,300 pounds, which helps it handle big jobs. It's also pretty big, measuring about 15.5 feet long, 6.5 feet wide, and 7 feet tall. The WA-4 has big 26-inch agricultural tires on both the front and back, giving it good traction in fields. It also has a high ground clearance of 14 inches, helping it move over rough ground easily.
Full specifications
Every recorded spec
General
| Manufacturer | Wagner |
|---|---|
| Model | WA-4 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 10,300lb |
Engine
| Make | General Motors |
|---|---|
| Model | Apr-53 |
| Power | 102hp |
| Cylinders | 4 |
| Displacement | 212.3ci |
| Bore | 3.88in |
| Stroke | 4.5in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydraulic power |
Dimensions
| Length | 186.25in |
|---|---|
| Width | 78.5in |
| Height | 85.5in |
| Operating weight | 10,300lb |
Capacities
| Cooling system | 5.75gal |
|---|
Head to head
WA-4 vs. Utility median
How the Wagner WA-4 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 102 hp | 55 hp | +85% | 84th |
| Engine Displacement | 212 ci | 183 ci | +16% | 59th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 10,300 lb | 5,303 lb | +94% | 86th |
| Length | 186 in | 137 in | +36% | 92nd |
| Width | 78.5 in | 66 in | +19% | 79th |
| Height | 85.5 in | 94.1 in | -9% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Wagner tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Wagner TR-6 | 105 hp | 12,700 lb | — | Compare → |
| Wagner TR-9 | 120 hp | 15,270 lb | — | Compare → |
| Wagner WA-9 | 160 hp | 18,100 lb | — | Compare → |
| Wagner TR-14A | 220 hp | 21,050 lb | — | Compare → |
| Wagner WA-17 | 250 hp | 27,000 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
Explore
Wagner siblings
Explore
Similar-spec models
Gallery

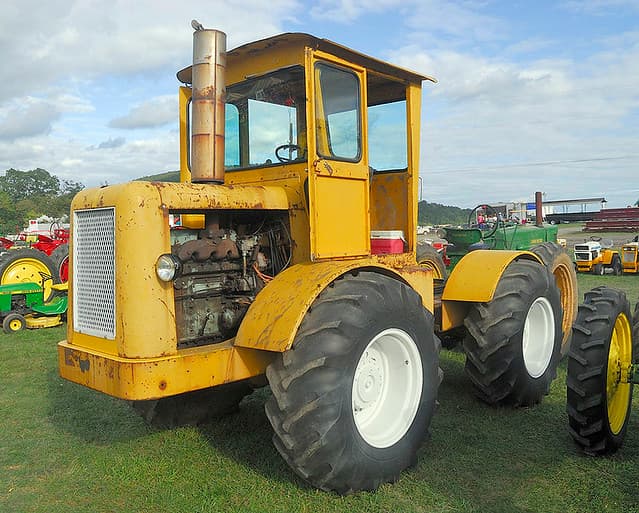

Wagner WA-4 photos
FAQ
Common questions
What is the engine power output of the Wagner WA-4?
Rated engine output for the Wagner WA-4 is 102 hp, delivered by a 4-cylinder engine. The engine displaces 212.3 ci.
Which transmission does the Wagner WA-4 use?
The Wagner WA-4 is equipped with a Manual transmission with 8 forward gears.
What three-point hitch category does the Wagner WA-4 use?
The Wagner WA-4 has a Category Category 3 three-point hitch.
What is the operating weight of the Wagner WA-4?
In working trim, the Wagner WA-4 comes in at roughly 10,300 lb.
How do I maintain a Wagner WA-4?
Routine service for the Wagner WA-4 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
