White 6510
The White 6510 is a versatile tractor designed for various farming tasks. It features a Cummins B3.9T engine, which is a 4-cylinder, turbocharged diesel engine with liquid cooling. The engine has a displacement of 239 cubic inches and operates at 2200 rated RPM, providing reliable power for field work. This tractor comes with a partially synchronized transmission, offering 24 forward and 24 reverse gears for flexible operation. The White 6510 uses hydrostatic steering for easy maneuverability and has an open center hydraulic system. It's equipped with a Category 2 hitch and a 540/1000 PTO, making it compatible with a wide range of implements. The tractor measures 165 inches long, 83 inches wide, and 103 inches tall, with a wheelbase of 99 inches. It has an operating weight of 7870 pounds and features a ROPS (Roll-Over Protective Structure) for operator safety.

Key specifications
- Category
- Utility
- Operating weight
- 7,870 lb
- Transmission
- Partially synchronized
Overview
About the White 6510
The White 6510 is a versatile tractor designed for various farming tasks. It features a Cummins B3.9T engine, which is a 4-cylinder, turbocharged diesel engine with liquid cooling. The engine has a displacement of 239 cubic inches and operates at 2200 rated RPM, providing reliable power for field work. This tractor comes with a partially synchronized transmission, offering 24 forward and 24 reverse gears for flexible operation. The White 6510 uses hydrostatic steering for easy maneuverability and has an open center hydraulic system. It's equipped with a Category 2 hitch and a 540/1000 PTO, making it compatible with a wide range of implements. The tractor measures 165 inches long, 83 inches wide, and 103 inches tall, with a wheelbase of 99 inches. It has an operating weight of 7870 pounds and features a ROPS (Roll-Over Protective Structure) for operator safety.
Full specifications
Recorded specifications
General
| Manufacturer | White |
|---|---|
| Model | 6510 |
| Category | Utility tractor |
| Operating weight | 7,870lb(3,570 kg) |
Engine
| Make | Cummins |
|---|---|
| Model | B3.9T |
| Cylinders | 4 |
| Displacement | 239ci(3.92 L) |
| Bore | 4.02in(102 mm) |
| Stroke | 4.72in(120 mm) |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Steering | Hydrostatic |
|---|---|
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | 540/1000 |
|---|
Dimensions
| Length | 165in(4,191 mm) |
|---|---|
| Width | 83in(2,108 mm) |
| Height | 103in(2,616 mm) |
| Operating weight | 7,870lb(3,570 kg) |
Tires
| Front | 9.5L-15Shop size |
|---|---|
| Rear | 13.6R38ConvertShop size |
Calculators
Calculators for the 6510
Parts and manuals
Parts and manuals for the White 6510
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Cummins B3.9TAmazon
Fits the Cummins B3.9T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Cummins B3.9TAmazon
Fits the Cummins B3.9T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Cummins B3.9TAmazon
Fits the Cummins B3.9T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Cummins B3.9TAmazon
Fits the Cummins B3.9T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- White 6510 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- White 6510 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- White 6510 service manualAmazon
Shop and repair manuals for this model.
Tires
- 9.5L-15 tiresAmazon
Listed front tire size for the White 6510.
- 13.6R38 tiresAmazon
Listed rear tire size for the White 6510.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
6510 vs. Utility median
White 6510 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 239 ci | 183 ci | +31% | 66th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 7,870 lb | 5,303 lb | +48% | 74th |
| Length | 165 in | 137 in | +21% | 83rd |
| Width | 83 in | 66 in | +26% | 86th |
| Height | 103 in | 94.1 in | +9% | 73rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other White models
Other manufacturers
Models with similar horsepower
Gallery

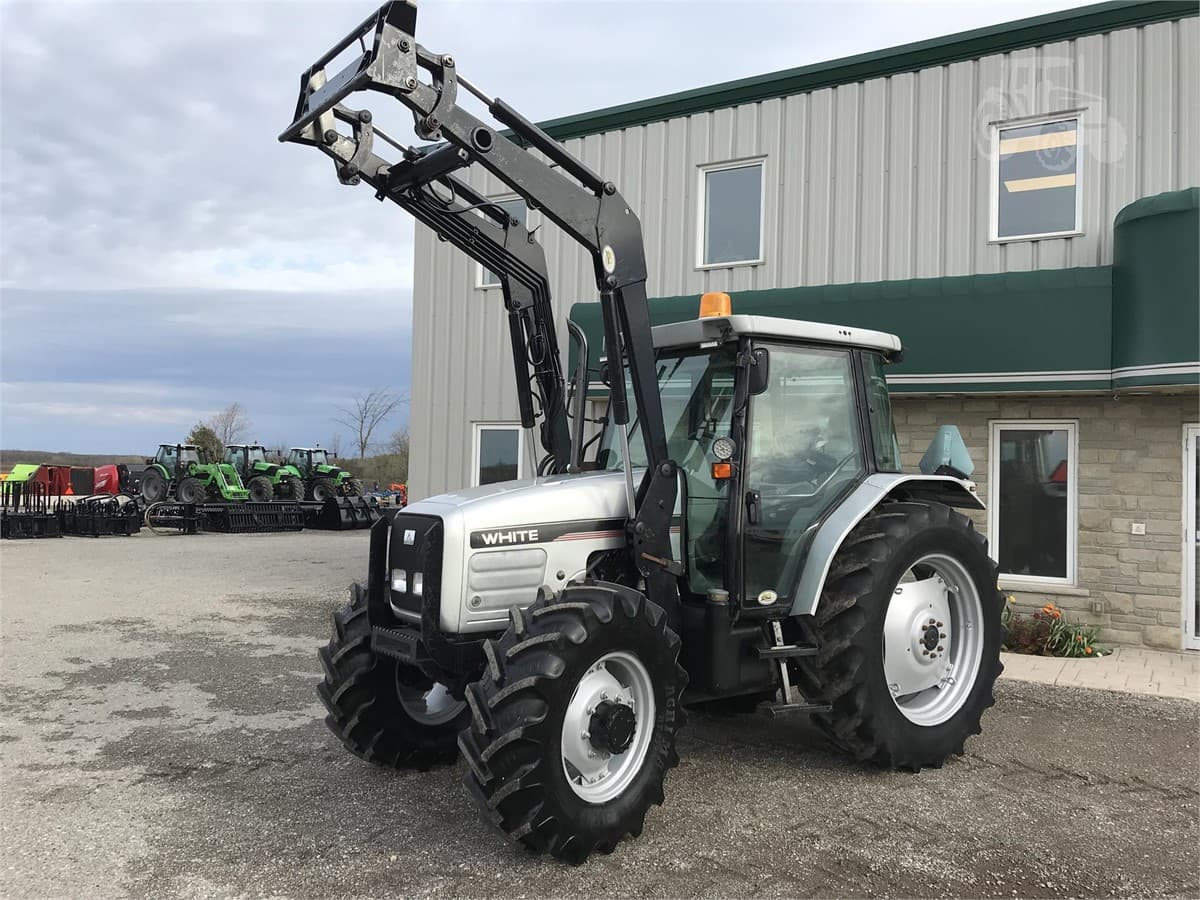

White 6510 photos





FAQ
Frequently asked questions
What engine configuration does the White 6510 use?
The White 6510 is equipped with a 4-cylinder engine displacing 239 ci.
What transmission is in the White 6510?
Transmission on the White 6510 is Partially synchronized, with 24 forward speeds.
What hydraulics does the White 6510 have?
The White 6510 uses an Open center hydraulic system.
What are the factory tire sizes for the White 6510?
The White 6510 comes with 9.5L-15 front tires and 13.6R38 rear tires.
What three-point hitch category does the White 6510 use?
The White 6510 has a Category Category 2 three-point hitch.
How much does the White 6510 weigh?
The White 6510 weighs about 7,870 lb in operating condition.
What maintenance does the White 6510 require?
The White 6510 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
