UtilityPerformance profile
Yanmar YM1500
The Yanmar YM1500 is a small utility tractor that was made from 1975 to 1979. It's a 2-wheel drive tractor with a gear transmission that has 8 forward speeds and 2 reverse speeds. This tractor is good for light farm work and small jobs. The YM1500 has a Yanmar 2TR15 diesel engine with 2 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It produces 15 horsepower, which is on the lower end for tractors. The engine size is also quite small compared to other tractors. The tractor weighs 1,350 pounds, making it very light and easy to move around. This Yanmar tractor has a Category 1 three-point hitch at the back, which can lift up to 1,430 pounds. This lifting capacity is about average for tractors of its size. The YM1500 has an open operator station, which means it doesn't have a cab. It uses agricultural tires and has an electric starter for easy operation. The tractor's small size, with a length of 101.6 inches, width of 40.9 inches, and height of 69.1 inches, makes it suitable for working in tight spaces.
ManufacturerYanmarPower15 hpEngine2-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 15hp
- Operating Weight
- 1,350 lb
- Transmission
- Gear
At a glance
How the YM1500 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
15 hp · 3rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The YM1500 ranks at the 3rd percentile for engine power among recorded utility tractors.
Overview
About the Yanmar YM1500
The Yanmar YM1500 is a small utility tractor that was made from 1975 to 1979. It's a 2-wheel drive tractor with a gear transmission that has 8 forward speeds and 2 reverse speeds. This tractor is good for light farm work and small jobs. The YM1500 has a Yanmar 2TR15 diesel engine with 2 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It produces 15 horsepower, which is on the lower end for tractors. The engine size is also quite small compared to other tractors. The tractor weighs 1,350 pounds, making it very light and easy to move around. This Yanmar tractor has a Category 1 three-point hitch at the back, which can lift up to 1,430 pounds. This lifting capacity is about average for tractors of its size. The YM1500 has an open operator station, which means it doesn't have a cab. It uses agricultural tires and has an electric starter for easy operation. The tractor's small size, with a length of 101.6 inches, width of 40.9 inches, and height of 69.1 inches, makes it suitable for working in tight spaces.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | YM1500 |
| Category | Utility tractor |
| Type | 4x2 |
| Years built | 1975–1979 |
| Operating weight | 1,350lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 2TR15 |
| Power | 15hp |
| Cylinders | 2 |
| Displacement | 52.1ci |
| Bore | 3.15in |
| Stroke | 3.35in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Cab | Open operator station |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 101.6in |
|---|---|
| Width | 40.9in |
| Height | 69.1in |
| Operating weight | 1,350lb |
Head to head
YM1500 vs. Utility median
How the Yanmar YM1500 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 15 hp | 55 hp | -73% | 3rd |
| Engine Displacement | 52.1 ci | 183 ci | -72% | 3rd |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 1,350 lb | 5,303 lb | -75% | 4th |
| Length | 102 in | 137 in | -26% | 9th |
| Width | 40.9 in | 66 in | -38% | 4th |
| Height | 69.1 in | 94.1 in | -27% | 15th |
| 3-Point Hitch Capacity | 1,430 lb | 3,197 lb | -55% | 13th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar F13D | 15 hp | — | — | Compare → |
| Yanmar YM1510 | 15 hp | 1,400 lb | — | Compare → |
| Yanmar YM155 | 15 hp | 1,200 lb | 1976–1979 | Compare → |
| Yanmar AF-15 | 14.8 hp | 1,587 lb | 1992–1996 | Compare → |
| Yanmar AF-150 | 14.8 hp | 1,587 lb | 1997–2000 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens G152 | 15 hp | 1,034 lb | — | Compare → |
| Bolens G154 | 15 hp | 1,124 lb | — | Compare → |
| Bolens H1502 | 15 hp | 1,080 lb | — | Compare → |
| Cub Cadet 1515 | 15 hp | 498 lb | 2002+ | Compare → |
| Cub Cadet 1525 | 15 hp | 500 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

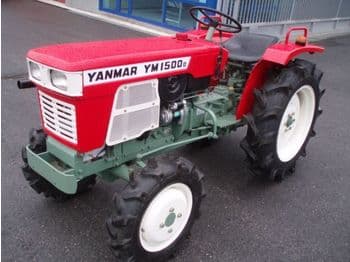

Yanmar YM1500 photos
FAQ
Common questions
What years was the Yanmar YM1500 manufactured?
Production of the Yanmar YM1500 ran from 1975 through 1979.
What hitch category is the Yanmar YM1500?
The Yanmar YM1500 uses a Category Category 1 hitch with a lift capacity of 1,430 lb.
How powerful is the Yanmar YM1500?
The Yanmar YM1500 has an engine power output of 15 hp. It is powered by a 2-cylinder engine displacing 52.1 ci.
What is the working weight of the Yanmar YM1500?
The operating weight of the Yanmar YM1500 is approximately 1,350 lb.
What type of transmission does the Yanmar YM1500 have?
The Yanmar YM1500 uses a Gear transmission offering 8 forward gears.
What type of hydraulic system does the Yanmar YM1500 use?
Hydraulics on the Yanmar YM1500 are Open center.
What routine service does the Yanmar YM1500 need?
Regular maintenance for the Yanmar YM1500 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
