Utility tractorsSpec sheet
Ag King AK2040
The Ag King AK2040 is a compact utility tractor built for small farms and outdoor work. It has a 4-wheel drive system and hydrostatic power steering, making it easy to control in tight spaces. The tractor uses a 12-speed transmission with 16 total gears, giving drivers plenty of options for different tasks. Under the hood, the AK2040 has a small 3-cylinder diesel engine that's naturally aspirated and liquid-cooled. The engine puts out 20 horsepower, which is on the lower end for tractors but suitable for light work. It measures 120 inches long, 54 inches wide, and 85 inches tall, with agricultural tires in the front and back. The tractor weighs 2,470 pounds and has a Category I hitch for attaching implements. While not the most powerful, the AK2040 is a practical choice for small-scale farming and property maintenance.
ManufacturerAg KingPower20 hp(14.9 kW)ClassUnder 25 HP tractors →Engine3-cylinderTransmission12-Speed
Key specifications
- Category
- Utility
- Engine power
- 20hp
- Operating weight
- 2,470 lb
- Transmission
- 12-Speed
Category comparison
AK2040 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
20 hp · 8th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The AK2040 ranks at the 8th percentile for engine power among recorded utility tractors.
Overview
About the Ag King AK2040
The Ag King AK2040 is a compact utility tractor built for small farms and outdoor work. It has a 4-wheel drive system and hydrostatic power steering, making it easy to control in tight spaces. The tractor uses a 12-speed transmission with 16 total gears, giving drivers plenty of options for different tasks. Under the hood, the AK2040 has a small 3-cylinder diesel engine that's naturally aspirated and liquid-cooled. The engine puts out 20 horsepower, which is on the lower end for tractors but suitable for light work. It measures 120 inches long, 54 inches wide, and 85 inches tall, with agricultural tires in the front and back. The tractor weighs 2,470 pounds and has a Category I hitch for attaching implements. While not the most powerful, the AK2040 is a practical choice for small-scale farming and property maintenance.
Full specifications
Recorded specifications
General
| Manufacturer | Ag King |
|---|---|
| Model | AK2040 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,470lb(1,120 kg) |
Engine
| Power | 20hp(14.91 kW) |
|---|---|
| Cylinders | 3 |
| Displacement | 82.8ci(1.36 L) |
Transmission
| Type | 12-Speed |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 120in(3,048 mm) |
|---|---|
| Width | 54in(1,372 mm) |
| Height | 85in(2,159 mm) |
| Operating weight | 2,470lb(1,120 kg) |
Capacities
| Cooling system | 2.6gal(9.84 L) |
|---|
Closest alternatives
AK2040 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the AK2040 are the New Holland T1010 and the Cub Cadet 7200. The New Holland T1010 matches it on rated power and weighs 1,020 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Cub Cadet 7200 matches it on rated power and weighs 510 lb less, carrying 98 lb per horsepower against 124 lb. Of the 3 models, the AK2040 has the highest weight per horsepower at 124 lb per hp.
| Spec | Ag King AK2040 | New Holland T1010 | Cub Cadet 7200 |
|---|---|---|---|
| Engine power | 20 hp14.9 kW | 20 hp14.9 kW | 20 hp14.9 kW |
| Operating weight | 2,470 lb1,120 kg | 1,455 lb660 kg | 1,964 lb891 kg |
| Weight per hp | 124 lb/hp75 kg/kW | 73 lb/hp44 kg/kW | 98 lb/hp60 kg/kW |
| Displacement | 82.8 ci1.36 L | 58.2 ci0.95 L | 68.6 ci1.12 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | 12-Speed | Hydrostatic | Partially Synchronized |
| Drive | 4WD | 4WD | 4WD |
| Years built | - | 2008+ | 2002-2003 |
Calculators
Calculators for the AK2040
PTO power
About 17 to 18 PTO hp
Estimated from the 20 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 20 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
144 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
20 hp is 14.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Ag King AK2040
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Ag King AK2040Amazon
For the 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Ag King AK2040Amazon
For the 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Ag King AK2040Amazon
For the 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Ag King AK2040Amazon
For the 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Ag King AK2040 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Ag King AK2040 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Ag King AK2040 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
AK2040 vs. Utility median
Ag King AK2040 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20 hp | 55 hp | -64% | 8th |
| Engine Displacement | 82.8 ci | 183 ci | -55% | 14th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,470 lb | 5,303 lb | -53% | 16th |
| Length | 120 in | 137 in | -12% | 27th |
| Width | 54 in | 66 in | -18% | 25th |
| Height | 85 in | 94.1 in | -10% | 33rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Ag King models
Other manufacturers
Models with similar horsepower
Gallery

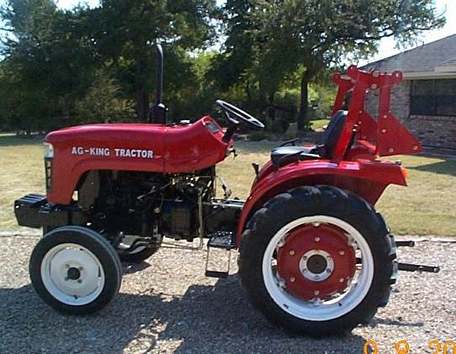

Ag King AK2040 photos
FAQ
Frequently asked questions
How much horsepower does the Ag King AK2040 have?
The Ag King AK2040 produces 20 hp from its 3-cylinder engine. Engine displacement is 82.8 ci.
How much does the Ag King AK2040 weigh?
The Ag King AK2040 weighs about 2,470 lb in operating condition.
What transmission is in the Ag King AK2040?
Transmission on the Ag King AK2040 is 12-Speed, with 12 forward speeds.
What hitch category is the Ag King AK2040?
The Ag King AK2040 uses a Category I hitch.
What maintenance does the Ag King AK2040 require?
The Ag King AK2040 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
