Row Crop tractorsSpec sheet
AGCO DT240A
The AGCO DT240A is a powerful row crop tractor made from 2005 to 2008. It has a strong 6-cylinder diesel engine made by Sisu Diesel. This engine is very big and powerful compared to most tractors, with 290 horsepower. The tractor uses a special transmission that lets it change speeds smoothly without shifting gears. This tractor is built tough, weighing 19,951 pounds, which is above average for its class. It has four-wheel drive and can handle big jobs on the farm. The back hitch can lift very heavy equipment, up to 14,400 pounds. The DT240A also has two PTO speeds, 540 and 1000 rpm, for running different kinds of farm tools. It comes with a comfortable cab for the driver, and you can even get one with special suspension to make the ride smoother. AGCO made this tractor in France. It's a big machine, measuring 206 inches long and 122 inches tall. The DT240A has wet disc brakes and a hydraulic steering system to make it easy to control. With its strong engine and many features, this tractor is great for farmers who need to do heavy work in their fields.
ManufacturerAGCOPower290 hp(216.3 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionContinuously variable transmission (CVT)
Key specifications
- Category
- Row Crop
- Engine power
- 290hp
- Operating weight
- 19,951 lb
- Transmission
- Continuously variable transmission (CVT)
Category comparison
DT240A compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
290 hp · 92nd
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The DT240A ranks at the 92nd percentile for engine power among recorded row crop tractors.
Overview
About the AGCO DT240A
The AGCO DT240A is a powerful row crop tractor made from 2005 to 2008. It has a strong 6-cylinder diesel engine made by Sisu Diesel. This engine is very big and powerful compared to most tractors, with 290 horsepower. The tractor uses a special transmission that lets it change speeds smoothly without shifting gears. This tractor is built tough, weighing 19,951 pounds, which is above average for its class. It has four-wheel drive and can handle big jobs on the farm. The back hitch can lift very heavy equipment, up to 14,400 pounds. The DT240A also has two PTO speeds, 540 and 1000 rpm, for running different kinds of farm tools. It comes with a comfortable cab for the driver, and you can even get one with special suspension to make the ride smoother. AGCO made this tractor in France. It's a big machine, measuring 206 inches long and 122 inches tall. The DT240A has wet disc brakes and a hydraulic steering system to make it easy to control. With its strong engine and many features, this tractor is great for farmers who need to do heavy work in their fields.
Full specifications
Recorded specifications
General
| Manufacturer | AGCO |
|---|---|
| Model | DT240A |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2005–2008 |
| Operating weight | 19,951lb(9,050 kg) |
Engine
| Make | Sisu Diesel |
|---|---|
| Power | 290hp(216.3 kW) |
| Cylinders | 6 |
| Displacement | 513ci(8.41 L) |
| Bore | 4.37in(111 mm) |
| Stroke | 5.71in(145 mm) |
Transmission
| Type | Continuously variable transmission (CVT) |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | Cab standard with optional pneumatic suspension |
Hydraulics
| Type | Closed center pressure flow compensated (PFC) |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 206in(5,232 mm) |
|---|---|
| Height | 122in(3,099 mm) |
| Operating weight | 19,951lb(9,050 kg) |
Closest alternatives
DT240A compared with the nearest models by horsepower
The closest row crop models to the AGCO DT240A by rated horsepower are the AGCO DT250B and the Massey Ferguson 8680. The AGCO DT250B matches it on rated power and weighs 6,010 lb more, at 90 lb per horsepower against 69 lb. The Massey Ferguson 8680 matches it on rated power and weighs 5,840 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the DT240A has the lowest weight per horsepower at 69 lb per hp.
| Spec | AGCO DT240A | AGCO DT250B | Massey Ferguson 8680 |
|---|---|---|---|
| Engine power | 290 hp216.3 kW | 290 hp216.3 kW | 290.2 hp216.4 kW |
| Operating weight | 19,951 lb9,050 kg | 25,960 lb11,775 kg | 25,795 lb11,700 kg |
| Weight per hp | 69 lb/hp42 kg/kW | 90 lb/hp54 kg/kW | 89 lb/hp54 kg/kW |
| Displacement | 513 ci8.41 L | 513 ci8.41 L | 513 ci8.41 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Continuously variable transmission (CVT) | Continuously variable transmission | Continuously Variable Transmission (CVT) |
| Drive | MFWD | 4WD | 4WD |
| Years built | 2005-2008 | 2009-2010 | 2009-2013 |
Calculators
Calculators for the DT240A
PTO power
About 241 to 261 PTO hp
Estimated from the 290 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 290 hp tractor can run
Maximum size is about a 34.5 ft rotary cutter or a 29.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
80 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
290 hp is 216.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the AGCO DT240A
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Sisu DieselAmazon
Fits the Sisu Diesel 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Sisu DieselAmazon
Fits the Sisu Diesel 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Sisu DieselAmazon
Fits the Sisu Diesel 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Sisu DieselAmazon
Fits the Sisu Diesel 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- AGCO DT240A service and repair manualseManualOnline
Digital manuals. Built 2005 to 2008. Check the serial number range on the listing.
- AGCO DT240A operator's manualAmazon
Printed and reprint manuals. Built 2005 to 2008. Check the serial number range on the listing.
- AGCO DT240A service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
DT240A vs. Row Crop median
AGCO DT240A compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 290 hp | 138 hp | +110% | 92nd |
| Engine Displacement | 513 ci | 391 ci | +31% | 92nd |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 19,951 lb | 12,307 lb | +62% | 84th |
| Length | 206 in | 180 in | +15% | 82nd |
| Height | 122 in | 114 in | +7% | 78th |
| 3-Point Hitch Capacity | 14,400 lb | 11,023 lb | +31% | 67th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 279–1,417 models).
Same manufacturer
Other AGCO models
Other manufacturers
Models with similar horsepower
Gallery

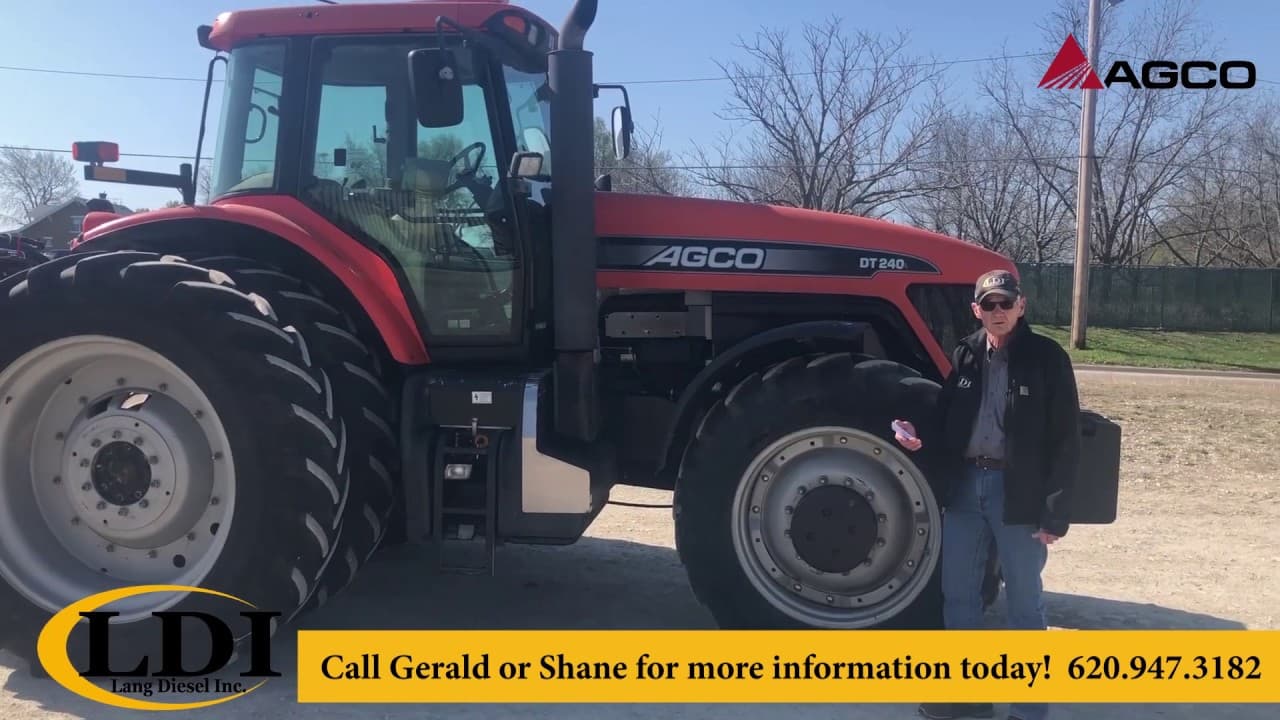

AGCO DT240A photos
FAQ
Frequently asked questions
When was the AGCO DT240A in production?
AGCO DT240A production started in 2005 and ended in 2008.
How much horsepower does the AGCO DT240A have?
The AGCO DT240A produces 290 hp from its 6-cylinder engine. Engine displacement is 513 ci.
How much does the AGCO DT240A weigh?
The AGCO DT240A weighs about 19,951 lb in operating condition.
What transmission is in the AGCO DT240A?
Transmission on the AGCO DT240A is Continuously variable transmission (CVT).
What hydraulics does the AGCO DT240A have?
The AGCO DT240A uses a Closed center pressure flow compensated (PFC) hydraulic system.
What three-point hitch category does the AGCO DT240A use?
The AGCO DT240A has a Category Category 3 three-point hitch rated to lift 14,400 lb.
What maintenance does the AGCO DT240A require?
The AGCO DT240A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
