The Allis Chalmers HD7 is a powerful crawler tractor built for both agricultural and general use. It runs on tracks instead of wheels, making it great for working in tough soil conditions. The HD7 has a sturdy build, measuring 128 inches long, 81 inches wide, and 69 inches tall. It's a heavy machine, weighing 14,000 pounds, which is about average for tractors of its kind. Under the hood, the HD7 has a General Motors diesel engine with three cylinders. The engine is liquid-cooled and has a blower to help it run better. It has an average engine size for its class, with 213 cubic inches of displacement. The engine runs at 1,500 RPM, which is on the lower end compared to other tractors. This tractor has a sliding gear transmission with four forward gears and one reverse gear, giving the driver good control over speed and power. The HD7 also features an electric starter and an oil bath air cleaner to keep the engine running smoothly.

Quick specs
- Category
- Crawler
- Operating Weight
- 14,000 lb
- Transmission
- Sliding Gear
Overview
About the Allis Chalmers HD7
The Allis Chalmers HD7 is a powerful crawler tractor built for both agricultural and general use. It runs on tracks instead of wheels, making it great for working in tough soil conditions. The HD7 has a sturdy build, measuring 128 inches long, 81 inches wide, and 69 inches tall. It's a heavy machine, weighing 14,000 pounds, which is about average for tractors of its kind. Under the hood, the HD7 has a General Motors diesel engine with three cylinders. The engine is liquid-cooled and has a blower to help it run better. It has an average engine size for its class, with 213 cubic inches of displacement. The engine runs at 1,500 RPM, which is on the lower end compared to other tractors. This tractor has a sliding gear transmission with four forward gears and one reverse gear, giving the driver good control over speed and power. The HD7 also features an electric starter and an oil bath air cleaner to keep the engine running smoothly.
Full specifications
Every recorded spec
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | HD7 |
| Category | Crawler tractor |
| Type | Crawler |
| Operating weight | 14,000lb |
Engine
| Make | General Motors |
|---|---|
| Model | Mar-71 |
| Cylinders | 3 |
| Displacement | 213ci |
| Bore | 4.25in |
| Stroke | 5in |
Transmission
| Type | Sliding Gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Drive | Track |
Dimensions
| Length | 128in |
|---|---|
| Width | 81in |
| Height | 69in |
| Operating weight | 14,000lb |
Capacities
| Cooling system | 5.75gal |
|---|
Head to head
HD7 vs. Crawler median
How the Allis Chalmers HD7 compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 213 ci | 468 ci | -54% | 29th |
| Cylinders | 3 | 6 | -50% | 10th |
| Forward Gears | 4 | 10 | -60% | 16th |
| Operating Weight | 14,000 lb | 23,320 lb | -40% | 43rd |
| Length | 128 in | 146 in | -12% | 33rd |
| Width | 81 in | 79.5 in | +2% | 51st |
| Height | 69 in | 90.6 in | -24% | 25th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 134–192 models).
Compare to tractors with similar specs
Commonly compared Allis Chalmers tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 170 | — | 5,720 lb | 1968–1973 | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| Allis Chalmers HD10 | — | 20,380 lb | — | Compare → |
| Allis Chalmers HD11 | 110 hp | 21,000 lb | 1955–1965 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Allis Chalmers siblings
Explore
Similar-spec models
Gallery

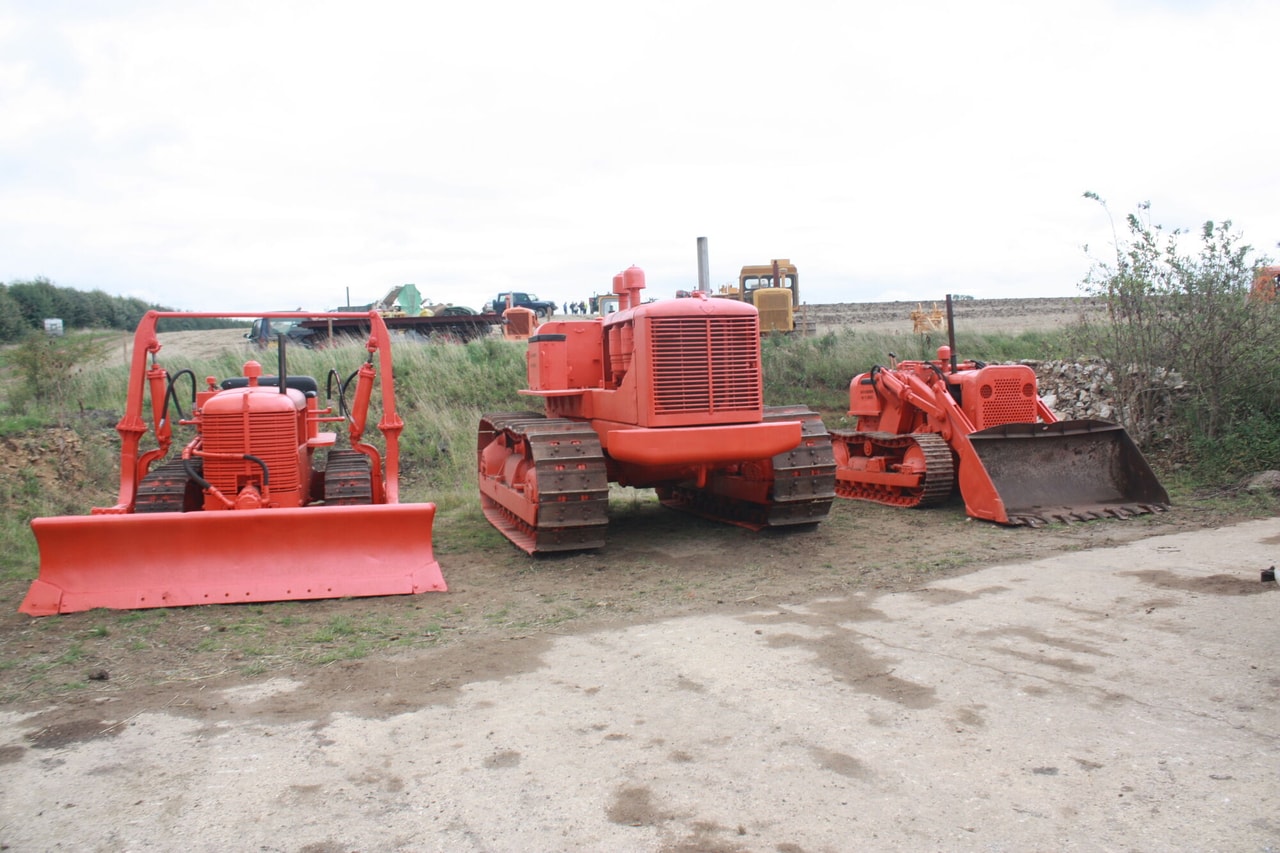

Allis Chalmers HD7 photos


FAQ
Common questions
How many cylinders does the Allis Chalmers HD7 have?
The Allis Chalmers HD7 runs a 3-cylinder engine with a displacement of 213 ci.
What type of transmission does the Allis Chalmers HD7 have?
The Allis Chalmers HD7 uses a Sliding Gear transmission offering 4 forward gears.
What is the working weight of the Allis Chalmers HD7?
The operating weight of the Allis Chalmers HD7 is approximately 14,000 lb.
What routine service does the Allis Chalmers HD7 need?
Regular maintenance for the Allis Chalmers HD7 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
