Brand siblingStandard Tread
Allis Chalmers WC
The Allis Chalmers WC is a classic tractor from the early 1900s. It has a 4-cylinder gasoline engine that makes 21.48 horsepower. The engine is 201 cubic inches big and runs at 1300 rpm. This tractor has a manual steering system and a simple gear transmission with 4 forward speeds and 1 reverse. The WC is a medium-sized tractor, measuring 136 inches long, 76 inches wide, and 63 inches tall. It weighs 3190 pounds with steel wheels or 3792 pounds with rubber tires. The tractor has a manual crank starter, which means you have to turn it by hand to start the engine. It uses an oil bath air cleaner to keep the engine clean. The WC performed well in tests, showing good fuel economy and pulling power for its time.
ManufacturerAllis ChalmersEngine4-cylTransNon-synchronized gear
Quick specs
- Category
- Standard Tread
- Operating Weight
- 3,190 lb
- Transmission
- Non-synchronized gear
Overview
About the Allis Chalmers WC
The Allis Chalmers WC is a classic tractor from the early 1900s. It has a 4-cylinder gasoline engine that makes 21.48 horsepower. The engine is 201 cubic inches big and runs at 1300 rpm. This tractor has a manual steering system and a simple gear transmission with 4 forward speeds and 1 reverse. The WC is a medium-sized tractor, measuring 136 inches long, 76 inches wide, and 63 inches tall. It weighs 3190 pounds with steel wheels or 3792 pounds with rubber tires. The tractor has a manual crank starter, which means you have to turn it by hand to start the engine. It uses an oil bath air cleaner to keep the engine clean. The WC performed well in tests, showing good fuel economy and pulling power for its time.
Full specifications
Every recorded spec
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | WC |
| Category | Standard Tread tractor |
| Operating weight | 3,190lb |
Engine
| Make | Allis-Chalmers |
|---|---|
| Model | Allis-Chalmers 3.3L 4-cyl gasoline |
| Cylinders | 4 |
| Displacement | 201ci |
| Bore | 4in |
| Stroke | 4in |
Transmission
| Type | Non-synchronized gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Steering | Manual |
|---|
Dimensions
| Length | 136in |
|---|---|
| Width | 76in |
| Height | 63in |
| Operating weight | 3,190lb |
Tires
| Front | 5.25x11 |
|---|---|
| Rear | 11.25x24 |
Capacities
| Cooling system | 3.5gal |
|---|
Head to head
WC vs. Standard Tread median
How the Allis Chalmers WC compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 201 ci | 382 ci | -47% | 11th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Operating Weight | 3,190 lb | 6,834 lb | -53% | 5th |
| Length | 136 in | 137 in | -1% | 48th |
| Width | 76 in | 72.4 in | +5% | 59th |
| Height | 63 in | 72.3 in | -13% | 24th |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 233–367 models).
Compare to tractors with similar specs
Commonly compared Allis Chalmers tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 20-35 | — | 7,095 lb | — | Compare → |
| Allis Chalmers 25-40 E | — | 7,000 lb | — | Compare → |
| Allis Chalmers A | — | 7,175 lb | — | Compare → |
| Allis Chalmers All-Crop | — | 5,955 lb | — | Compare → |
| Allis Chalmers E 30-60 Threshermans Special | — | 6,280 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Allis Chalmers siblings
Explore
Similar-spec models
Gallery

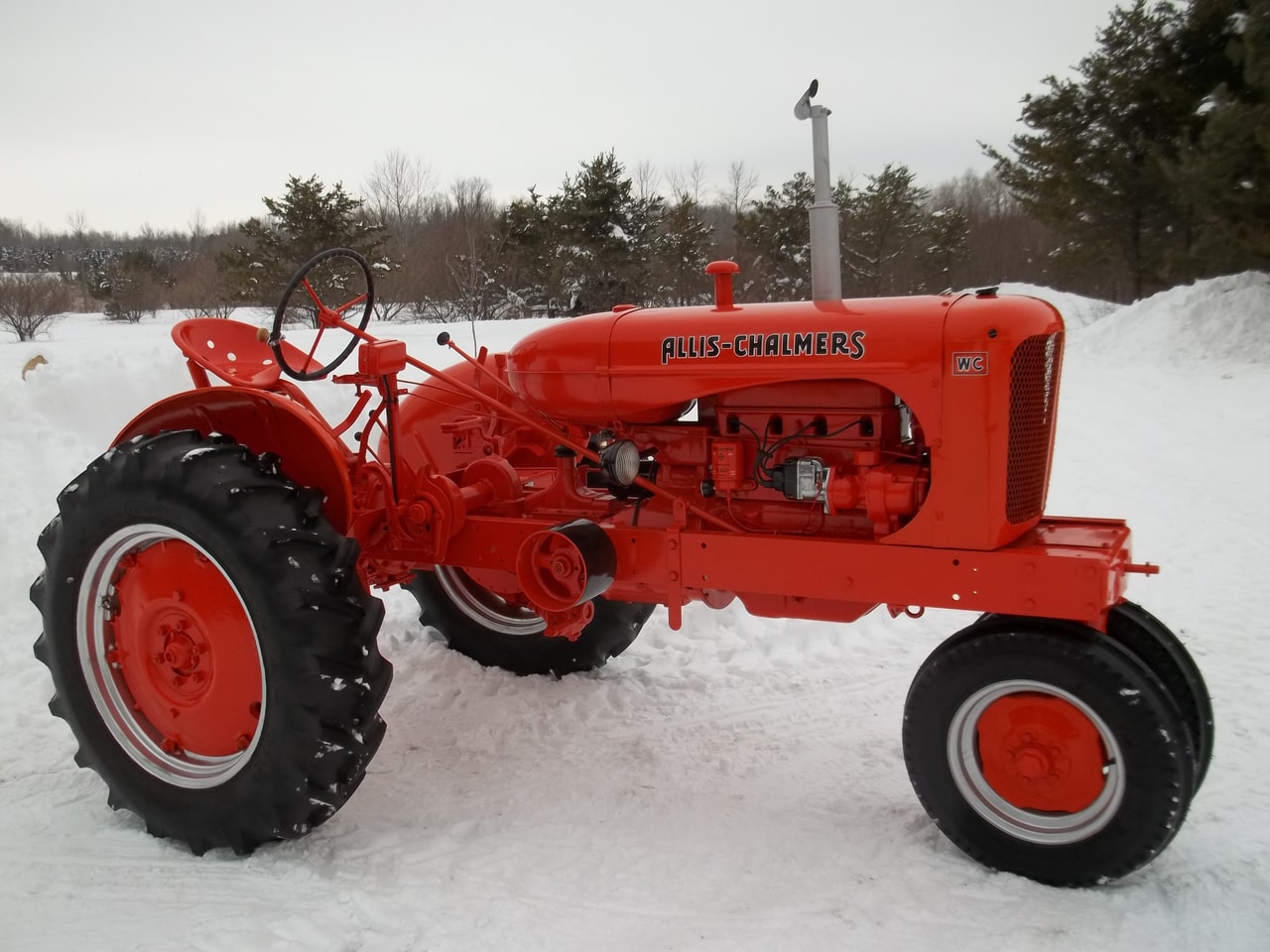

Allis Chalmers WC photos
FAQ
Common questions
What engine configuration does the Allis Chalmers WC use?
The Allis Chalmers WC is equipped with a 4-cylinder engine displacing 201 ci.
How much does the Allis Chalmers WC weigh?
The Allis Chalmers WC weighs about 3,190 lb in operating condition.
What transmission is in the Allis Chalmers WC?
Transmission on the Allis Chalmers WC is Non-synchronized gear, with 4 forward speeds.
What are the factory tire sizes for the Allis Chalmers WC?
The Allis Chalmers WC comes with 5.25x11 front tires and 11.25x24 rear tires.
What maintenance does the Allis Chalmers WC require?
Like any tractor, the Allis Chalmers WC needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
