Utility tractorsSpec sheet
Antonio Carraro Tigrone Jona 6400
The Antonio Carraro Tigrone Jona 6400 is a utility tractor built for versatility and power. It has a 4x4 articulated chassis and four-wheel drive, making it great for tough jobs on uneven ground. The tractor is powered by a VM Motori D703 diesel engine with three cylinders. This engine is turbocharged and liquid-cooled, giving it extra power when needed. The Tigrone Jona 6400 has a manual transmission with 12 forward and 12 reverse gears, offering plenty of options for different tasks. It has a power output of 56 hp, which is about average for tractors in its class. The tractor weighs 3,571 lb and has a height of 83.1 inches. It comes with agricultural tires on both front and rear, perfect for farm work. The tractor also features hydraulic power steering for easy handling and a category I hitch for attaching various implements.
ManufacturerAntonio CarraroPower56 hp(41.8 kW)Class40–60 HP tractors →Engine3-cylinderTransmissionManual
Key specifications
- Category
- Utility
- Engine power
- 56hp
- Operating weight
- 3,571 lb
- Transmission
- Manual
Category comparison
Tigrone Jona 6400 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
56 hp · 51st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Tigrone Jona 6400 ranks at the 51st percentile for engine power among recorded utility tractors.
Overview
About the Antonio Carraro Tigrone Jona 6400
The Antonio Carraro Tigrone Jona 6400 is a utility tractor built for versatility and power. It has a 4x4 articulated chassis and four-wheel drive, making it great for tough jobs on uneven ground. The tractor is powered by a VM Motori D703 diesel engine with three cylinders. This engine is turbocharged and liquid-cooled, giving it extra power when needed. The Tigrone Jona 6400 has a manual transmission with 12 forward and 12 reverse gears, offering plenty of options for different tasks. It has a power output of 56 hp, which is about average for tractors in its class. The tractor weighs 3,571 lb and has a height of 83.1 inches. It comes with agricultural tires on both front and rear, perfect for farm work. The tractor also features hydraulic power steering for easy handling and a category I hitch for attaching various implements.
Full specifications
Recorded specifications
General
| Manufacturer | Antonio Carraro |
|---|---|
| Model | Tigrone Jona 6400 |
| Category | Utility tractor |
| Type | 4x4 articulated |
| Operating weight | 3,571lb(1,620 kg) |
Engine
| Make | VM Motori |
|---|---|
| Model | D703 |
| Power | 56hp(41.76 kW) |
| Cylinders | 3 |
| Displacement | 127.05ci(2.08 L) |
| Bore | 3.7in(93.98 mm) |
| Stroke | 3.94in(100 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 articulated |
|---|---|
| Drive | 4WD |
| Steering | Hydraulic Power |
Dimensions
| Height | 83.1in(2,111 mm) |
|---|---|
| Operating weight | 3,571lb(1,620 kg) |
Closest alternatives
Tigrone Jona 6400 compared with the nearest models by horsepower
Among utility tractors, the Antonio Carraro Tigrone Jona 6400F and the New Holland TT60A are closest to the Antonio Carraro Tigrone Jona 6400 in rated horsepower. The Antonio Carraro Tigrone Jona 6400F matches it on rated power and weighs 290 lb more, at 69 lb per horsepower against 64 lb. The New Holland TT60A matches it on rated power and weighs 970 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the Tigrone Jona 6400 has the lowest weight per horsepower at 64 lb per hp.
| Spec | Antonio Carraro Tigrone Jona 6400 | Antonio Carraro Tigrone Jona 6400F | New Holland TT60A |
|---|---|---|---|
| Engine power | 56 hp41.8 kW | 56 hp41.8 kW | 56 hp41.8 kW |
| Operating weight | 3,571 lb1,620 kg | 3,858 lb1,750 kg | 4,540 lb2,059 kg |
| Weight per hp | 64 lb/hp39 kg/kW | 69 lb/hp42 kg/kW | 81 lb/hp49 kg/kW |
| Displacement | 127.1 ci2.08 L | 127.1 ci2.08 L | 179 ci2.93 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Manual | Manual | Partially synchronized |
| Drive | 4WD | 4WD | 2WD |
Calculators
Calculators for the Tigrone Jona 6400
PTO power
About 46 to 50 PTO hp
Estimated from the 56 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 56 hp tractor can run
Maximum size is about a 6.5 ft rotary cutter or a 5.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
74 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
56 hp is 41.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Antonio Carraro Tigrone Jona 6400
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the VM Motori D703Amazon
Fits the VM Motori D703 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the VM Motori D703Amazon
Fits the VM Motori D703 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the VM Motori D703Amazon
Fits the VM Motori D703 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the VM Motori D703Amazon
Fits the VM Motori D703 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Antonio Carraro Tigrone Jona 6400 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Antonio Carraro Tigrone Jona 6400 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Antonio Carraro Tigrone Jona 6400 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Tigrone Jona 6400 vs. Utility median
Antonio Carraro Tigrone Jona 6400 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 56 hp | 55 hp | +2% | 51st |
| Engine Displacement | 127 ci | 183 ci | -31% | 30th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,571 lb | 5,303 lb | -33% | 30th |
| Height | 83.1 in | 94.1 in | -12% | 30th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Antonio Carraro models
Other manufacturers
Models with similar horsepower
Gallery

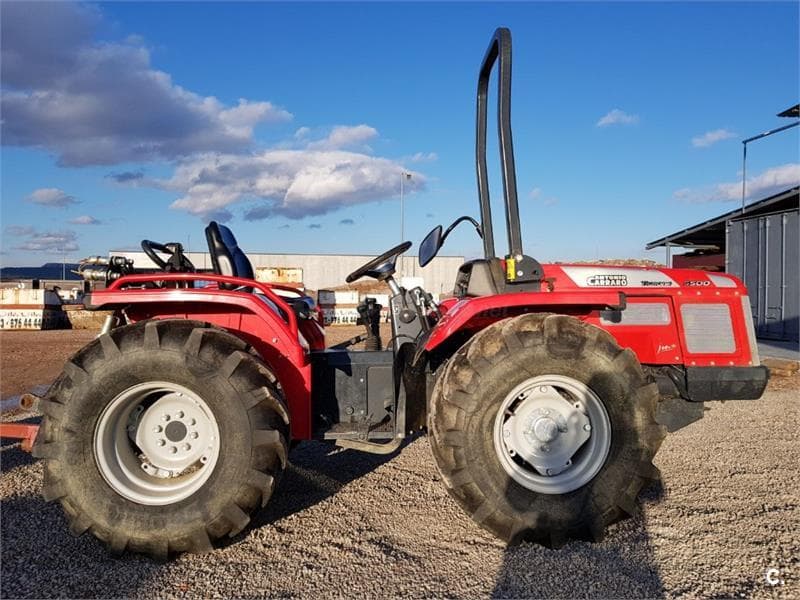

Antonio Carraro Tigrone Jona 6400 photos
FAQ
Frequently asked questions
How powerful is the Antonio Carraro Tigrone Jona 6400?
The Antonio Carraro Tigrone Jona 6400 has an engine power output of 56 hp. It is powered by a 3-cylinder engine displacing 127.05 ci.
What three-point hitch category does the Antonio Carraro Tigrone Jona 6400 use?
The Antonio Carraro Tigrone Jona 6400 has a Category I three-point hitch.
What is the working weight of the Antonio Carraro Tigrone Jona 6400?
The operating weight of the Antonio Carraro Tigrone Jona 6400 is approximately 3,571 lb.
What type of transmission does the Antonio Carraro Tigrone Jona 6400 have?
The Antonio Carraro Tigrone Jona 6400 uses a Manual transmission offering 12 forward gears.
What routine service does the Antonio Carraro Tigrone Jona 6400 need?
Regular maintenance for the Antonio Carraro Tigrone Jona 6400 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
