UtilityPerformance profile
Antonio Carraro Tigrone Jona 5800
The Antonio Carraro Tigrone Jona 5800 is a utility tractor built for versatility and power. It features a 4x4 articulated chassis with four-wheel drive, making it great for tough jobs on uneven ground. The tractor is powered by a Yanmar 4TNV88 diesel engine with 4 cylinders and 48 horsepower. This engine is liquid-cooled and runs at a very high 2800 rpm, giving it plenty of power for its size. The Tigrone Jona 5800 comes with a 12-speed transmission, offering 12 forward and 12 reverse gears. This gives the operator lots of choices for different tasks. The tractor has hydraulic power steering, making it easy to control. It's compact, measuring 123.8 inches long, 48.6 inches wide, and 83.1 inches tall. The tractor is equipped with 16x7.5 tires on both front and rear, and it has a rear hitch for attaching implements. While the engine displacement is below average for its class, the high rpm and good power output make it a capable machine for many farm and utility tasks.
ManufacturerAntonio CarraroPower48 hpEngine4-cylTrans12-speed
Quick specs
- Category
- Utility
- Engine Power Output
- 48hp
- Transmission
- 12-speed
At a glance
How the Tigrone Jona 5800 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
48 hp · 43rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Tigrone Jona 5800 ranks at the 43rd percentile for engine power among recorded utility tractors.
Overview
About the Antonio Carraro Tigrone Jona 5800
The Antonio Carraro Tigrone Jona 5800 is a utility tractor built for versatility and power. It features a 4x4 articulated chassis with four-wheel drive, making it great for tough jobs on uneven ground. The tractor is powered by a Yanmar 4TNV88 diesel engine with 4 cylinders and 48 horsepower. This engine is liquid-cooled and runs at a very high 2800 rpm, giving it plenty of power for its size. The Tigrone Jona 5800 comes with a 12-speed transmission, offering 12 forward and 12 reverse gears. This gives the operator lots of choices for different tasks. The tractor has hydraulic power steering, making it easy to control. It's compact, measuring 123.8 inches long, 48.6 inches wide, and 83.1 inches tall. The tractor is equipped with 16x7.5 tires on both front and rear, and it has a rear hitch for attaching implements. While the engine displacement is below average for its class, the high rpm and good power output make it a capable machine for many farm and utility tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Antonio Carraro |
|---|---|
| Model | Tigrone Jona 5800 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
Engine
| Make | Yanmar |
|---|---|
| Model | 4TNV88 |
| Power | 48hp |
| Cylinders | 4 |
| Displacement | 133.6ci |
| Bore | 3.46in |
| Stroke | 3.54in |
Transmission
| Type | 12-speed |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydraulic Power |
Dimensions
| Length | 123.8in |
|---|---|
| Width | 48.6in |
| Height | 83.1in |
Tires
| Front | 16x7.5 |
|---|---|
| Rear | 16x7.5 |
Head to head
Tigrone Jona 5800 vs. Utility median
How the Antonio Carraro Tigrone Jona 5800 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 48 hp | 55 hp | -13% | 43rd |
| Engine Displacement | 134 ci | 183 ci | -27% | 31st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Length | 124 in | 137 in | -9% | 33rd |
| Width | 48.6 in | 66 in | -26% | 15th |
| Height | 83.1 in | 94.1 in | -12% | 30th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Antonio Carraro tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400 | 56 hp | 3,571 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400F | 56 hp | 3,858 lb | — | Compare → |
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Allis Chalmers 5050 | 50 hp | 4,410 lb | 1977–1983 | Compare → |
| Allis Chalmers FD5 | 50 hp | 5,412 lb | — | Compare → |
| Belarus 4055 | 50 hp | 4,750 lb | — | Compare → |
Explore
Antonio Carraro siblings
Brand siblingExplore
Similar-spec models
Gallery

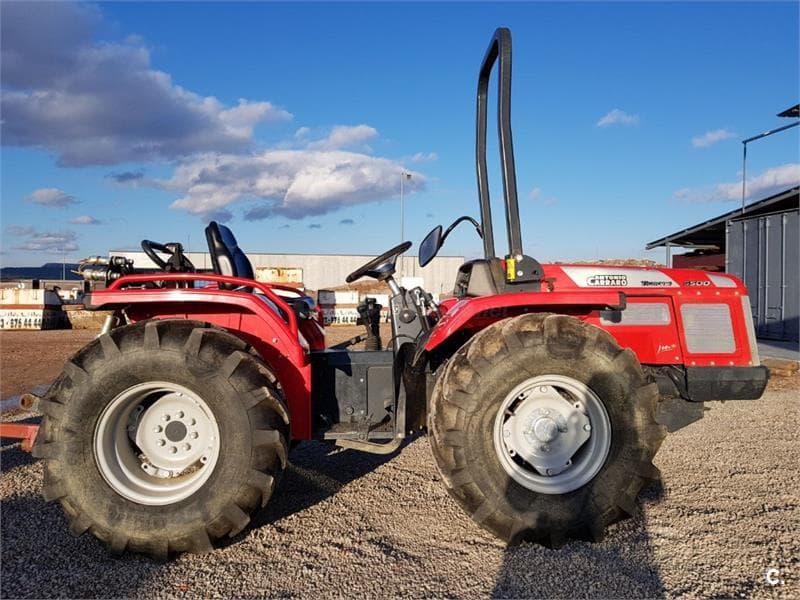

Antonio Carraro Tigrone Jona 5800 photos
FAQ
Common questions
How powerful is the Antonio Carraro Tigrone Jona 5800?
The Antonio Carraro Tigrone Jona 5800 has an engine power output of 48 hp. It is powered by a 4-cylinder engine displacing 133.6 ci.
What hitch category is the Antonio Carraro Tigrone Jona 5800?
The Antonio Carraro Tigrone Jona 5800 uses a Category I hitch.
What type of transmission does the Antonio Carraro Tigrone Jona 5800 have?
The Antonio Carraro Tigrone Jona 5800 uses a 12-speed transmission offering 12 forward gears.
What size tires does the Antonio Carraro Tigrone Jona 5800 use?
Factory rubber for the Antonio Carraro Tigrone Jona 5800 is 16x7.5 front tires and 16x7.5 rear tires.
What routine service does the Antonio Carraro Tigrone Jona 5800 need?
Regular maintenance for the Antonio Carraro Tigrone Jona 5800 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
