Sub-Compact
CaseIH 2130
The CaseIH 2130 is a compact tractor designed for various farming tasks. It features hydrostatic power steering, making it easy to control in tight spaces. The tractor has a partially synchronized transmission, which helps smooth gear changes during operation. Under the hood, the CaseIH 2130 is powered by a Carraro SLH 100.3.A engine. This air-cooled diesel engine has 3 cylinders and a displacement of 183.1 ci. It runs at 2350 rpm, providing steady power for farm work. The engine's bore is 4.134 inches, and its stroke is 4.547 inches. For convenience, the tractor uses an electric starter. The CaseIH 2130 is built with farmers in mind. It has agricultural tires on both front and rear, suitable for field work. The tractor stands 52.1 inches tall and comes with a Type I/II hitch at the rear for attaching implements. Its hydraulic system is an open center type, which is common in tractors of this size. Overall, the CaseIH 2130 is a practical choice for small to medium-sized farms.
ManufacturerCaseIHEngine3-cylTransPartially synchronized
Quick specs
- Category
- Sub-Compact
- Transmission
- Partially synchronized
Overview
About the CaseIH 2130
The CaseIH 2130 is a compact tractor designed for various farming tasks. It features hydrostatic power steering, making it easy to control in tight spaces. The tractor has a partially synchronized transmission, which helps smooth gear changes during operation. Under the hood, the CaseIH 2130 is powered by a Carraro SLH 100.3.A engine. This air-cooled diesel engine has 3 cylinders and a displacement of 183.1 ci. It runs at 2350 rpm, providing steady power for farm work. The engine's bore is 4.134 inches, and its stroke is 4.547 inches. For convenience, the tractor uses an electric starter. The CaseIH 2130 is built with farmers in mind. It has agricultural tires on both front and rear, suitable for field work. The tractor stands 52.1 inches tall and comes with a Type I/II hitch at the rear for attaching implements. Its hydraulic system is an open center type, which is common in tractors of this size. Overall, the CaseIH 2130 is a practical choice for small to medium-sized farms.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 2130 |
| Category | Sub-Compact tractor |
Engine
| Make | Carraro |
|---|---|
| Model | SLH 100.3.A |
| Cylinders | 3 |
| Displacement | 183.1ci |
| Bore | 4.13in |
| Stroke | 4.55in |
Transmission
| Type | Partially synchronized |
|---|
Chassis & drive
| Steering | Hydrostatic power steering |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Height | 52.1in |
|---|
Head to head
2130 vs. Sub-Compact median
How the CaseIH 2130 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 183 ci | 91.4 ci | +100% | 93rd |
| Cylinders | 3 | 3 | at median | 50th |
| Height | 52.1 in | 78.4 in | -34% | 13th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 625–802 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 1140 | 27 hp | 2,060 lb | — | Compare → |
| CaseIH 2120 | — | 4,101 lb | — | Compare → |
| CaseIH 2150 | — | 4,718 lb | — | Compare → |
| CaseIH 254 | — | 1,950 lb | — | Compare → |
| CaseIH C42 | 42 hp | 5,204 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

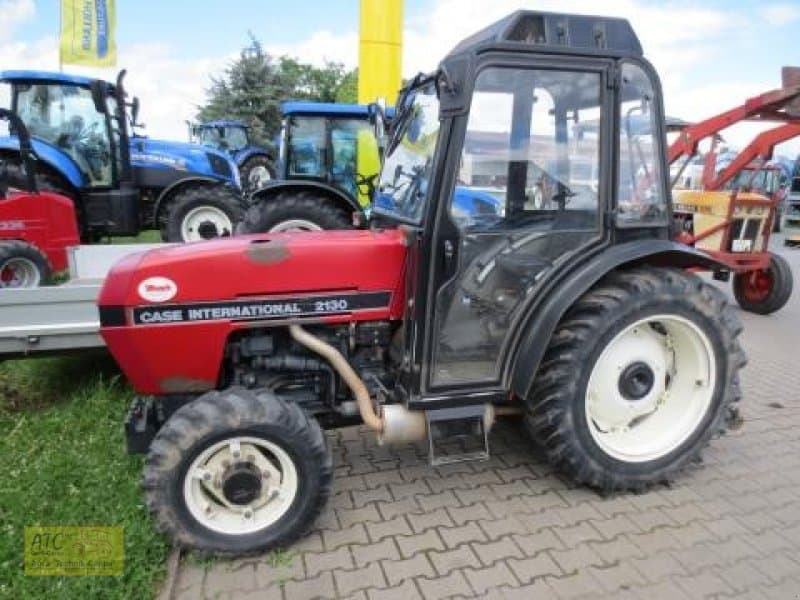

CaseIH 2130 photos
FAQ
Common questions
What engine configuration does the CaseIH 2130 use?
The CaseIH 2130 is equipped with a 3-cylinder engine displacing 183.1 ci.
What transmission is in the CaseIH 2130?
Transmission on the CaseIH 2130 is Partially synchronized.
What hydraulics does the CaseIH 2130 have?
The CaseIH 2130 uses an Open Center hydraulic system.
What maintenance does the CaseIH 2130 require?
Like any tractor, the CaseIH 2130 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
