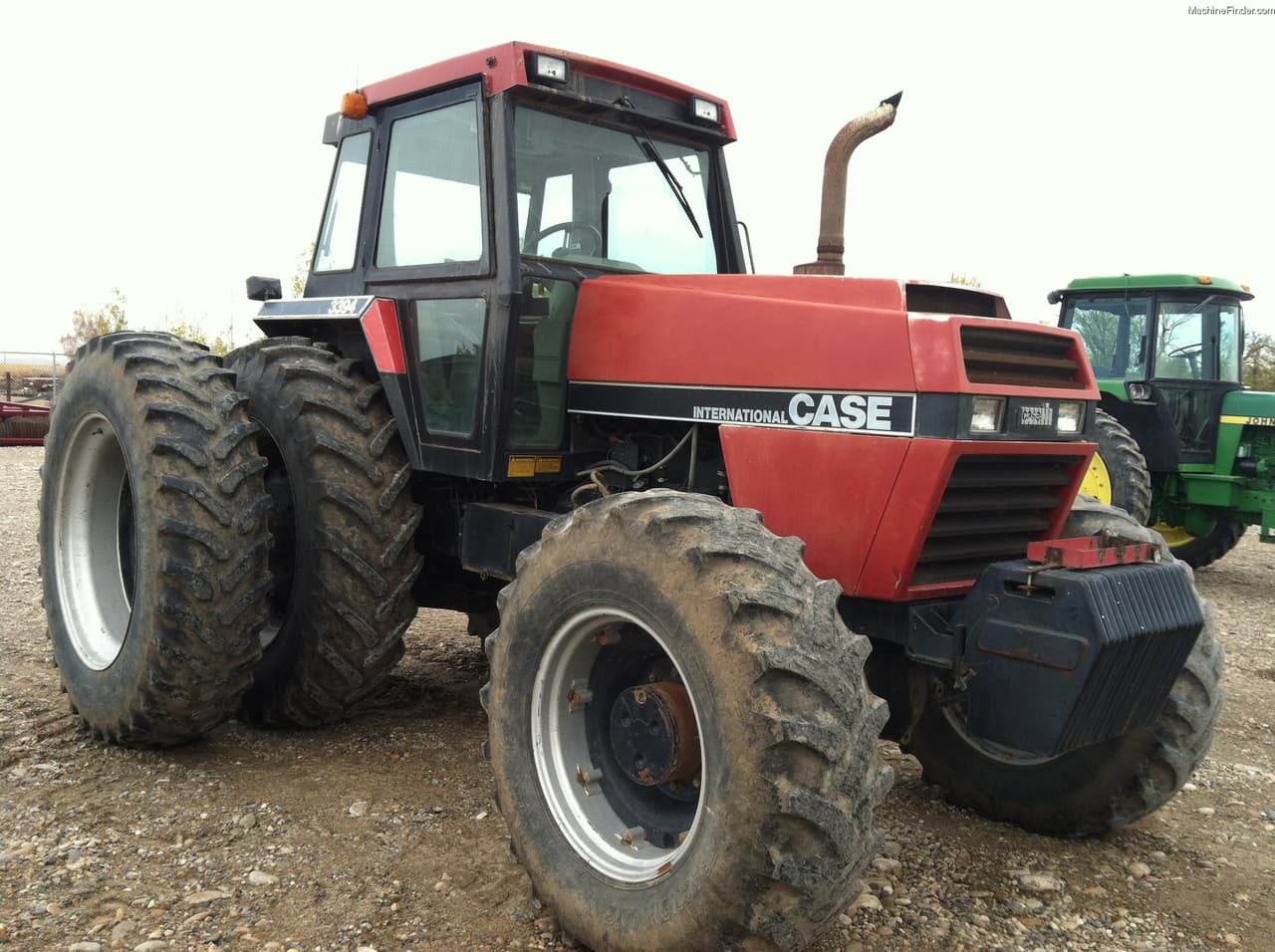

CaseIH 3394
The CaseIH 3394 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by Case, with 6 cylinders and a turbocharger for extra power. The engine is liquid-cooled to keep it running smoothly, even on hot days. With a displacement of 504 cubic inches, this tractor has plenty of muscle for tough jobs. This tractor is built for comfort and ease of use. It has a cab for the operator, keeping them safe and comfortable while working. The steering is hydrostatic power, which makes it easy to control. The transmission has 24 forward gears and 3 reverse gears, giving the driver lots of options for different tasks. The CaseIH 3394 also has a three-point hitch at the back, which can lift up to 20,500 pounds. This makes it great for attaching and using many different farm tools.
ManufacturerCaseIHEngine6-cylTranspartial power shift
Quick specs
- Category
- Utility
- Operating Weight
- 15,620 lb
- Transmission
- partial power shift
Overview
About the CaseIH 3394
The CaseIH 3394 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by Case, with 6 cylinders and a turbocharger for extra power. The engine is liquid-cooled to keep it running smoothly, even on hot days. With a displacement of 504 cubic inches, this tractor has plenty of muscle for tough jobs. This tractor is built for comfort and ease of use. It has a cab for the operator, keeping them safe and comfortable while working. The steering is hydrostatic power, which makes it easy to control. The transmission has 24 forward gears and 3 reverse gears, giving the driver lots of options for different tasks. The CaseIH 3394 also has a three-point hitch at the back, which can lift up to 20,500 pounds. This makes it great for attaching and using many different farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 3394 |
| Category | Utility tractor |
| Operating weight | 15,620lb |
Engine
| Make | Case |
|---|---|
| Cylinders | 6 |
| Displacement | 504ci |
| Bore | 4.63in |
| Stroke | 5in |
Transmission
| Type | partial power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 3 |
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Cab | Cab |
Hydraulics
| Type | Closed center |
|---|
Dimensions
| Length | 192.5in |
|---|---|
| Width | 60in |
| Height | 120in |
| Operating weight | 15,620lb |
Capacities
| Cooling system | 11gal |
|---|
Head to head
3394 vs. Utility median
How the CaseIH 3394 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 504 ci | 183 ci | +175% | 93rd |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 15,620 lb | 5,303 lb | +195% | 93rd |
| Length | 193 in | 137 in | +41% | 93rd |
| Width | 60 in | 66 in | -9% | 37th |
| Height | 120 in | 94.1 in | +28% | 95th |
| 3-Point Hitch Capacity | 20,500 lb | 3,197 lb | +541% | 98th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 1056 XL | 105 hp | 9,634 lb | — | Compare → |
| CaseIH 1120 | 19 hp | 1,380 lb | 1991+ | Compare → |
| CaseIH 1130 | 23 hp | 2,006 lb | 1991+ | Compare → |
| CaseIH 1394 | 77 hp | 6,520 lb | 1985–1988 | Compare → |
| CaseIH 1494 | 85 hp | 7,375 lb | 1983–1988 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH 3394 photos
FAQ
Common questions
How many cylinders does the CaseIH 3394 have?
The CaseIH 3394 runs a 6-cylinder engine with a displacement of 504 ci.
Which transmission does the CaseIH 3394 use?
The CaseIH 3394 is equipped with a partial power shift transmission with 24 forward gears.
What type of hydraulic system does the CaseIH 3394 use?
Hydraulics on the CaseIH 3394 are Closed center.
What hitch category is the CaseIH 3394?
The CaseIH 3394 uses a Category III hitch with a lift capacity of 20,500 lb.
What is the operating weight of the CaseIH 3394?
In working trim, the CaseIH 3394 comes in at roughly 15,620 lb.
How do I maintain a CaseIH 3394?
Routine service for the CaseIH 3394 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
