CaseIH 1130
The CaseIH 1130 is a compact utility tractor built for small farms and light work. It has a 2WD chassis and power steering, making it easy to handle. The tractor uses a simple gear transmission with 9 forward and 3 reverse speeds, giving farmers good control over their work. Under the hood, the 1130 has a Mitsubishi diesel engine with 3 cylinders. The engine is naturally aspirated and liquid-cooled, producing 23 hp at 2500 rpm. While the engine power is below average for tractors, it's enough for many small farm tasks. The tractor has a Category I hitch that can lift up to 2200 lb, which is above average for its size. It also has a live PTO running at 540 rpm, useful for powering attachments. The CaseIH 1130 is compact, measuring 115 inches long, 50.8 inches wide, and 83.5 inches tall. It's lightweight at 2006 lb, making it easy to move around without damaging fields.
ManufacturerCaseIHPower23 hpEngine3-cylTransGear type
Quick specs
- Category
- Utility
- Engine Power Output
- 23hp
- Operating Weight
- 2,006 lb
- Transmission
- Gear type
At a glance
How the 1130 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
23 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1130 ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH 1130
The CaseIH 1130 is a compact utility tractor built for small farms and light work. It has a 2WD chassis and power steering, making it easy to handle. The tractor uses a simple gear transmission with 9 forward and 3 reverse speeds, giving farmers good control over their work. Under the hood, the 1130 has a Mitsubishi diesel engine with 3 cylinders. The engine is naturally aspirated and liquid-cooled, producing 23 hp at 2500 rpm. While the engine power is below average for tractors, it's enough for many small farm tasks. The tractor has a Category I hitch that can lift up to 2200 lb, which is above average for its size. It also has a live PTO running at 540 rpm, useful for powering attachments. The CaseIH 1130 is compact, measuring 115 inches long, 50.8 inches wide, and 83.5 inches tall. It's lightweight at 2006 lb, making it easy to move around without damaging fields.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 1130 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1991+ |
| Operating weight | 2,006lb |
Engine
| Make | Mitsubishi |
|---|---|
| Power | 23hp |
| Cylinders | 3 |
| Displacement | 75.4ci |
| Bore | 3.23in |
| Stroke | 3.07in |
Transmission
| Type | Gear type |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Wet disc |
| Cab | Two-post folding ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 115in |
|---|---|
| Width | 50.8in |
| Height | 83.5in |
| Operating weight | 2,006lb |
Head to head
1130 vs. Utility median
How the CaseIH 1130 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23 hp | 55 hp | -58% | 12th |
| Engine Displacement | 75.4 ci | 183 ci | -59% | 11th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 2,006 lb | 5,303 lb | -62% | 12th |
| Length | 115 in | 137 in | -16% | 20th |
| Width | 50.8 in | 66 in | -23% | 19th |
| Height | 83.5 in | 94.1 in | -11% | 31st |
| 3-Point Hitch Capacity | 2,200 lb | 3,197 lb | -31% | 27th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 255 | 24 hp | 1,940 lb | — | Compare → |
| CaseIH Farmall DX22E | 22 hp | 1,314 lb | — | Compare → |
| CaseIH Farmall DX24 | 24 hp | 1,502 lb | — | Compare → |
| CaseIH Farmall DX24E | 24 hp | 1,323 lb | — | Compare → |
| CaseIH Farmall 25A | 24.6 hp | 2,469 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

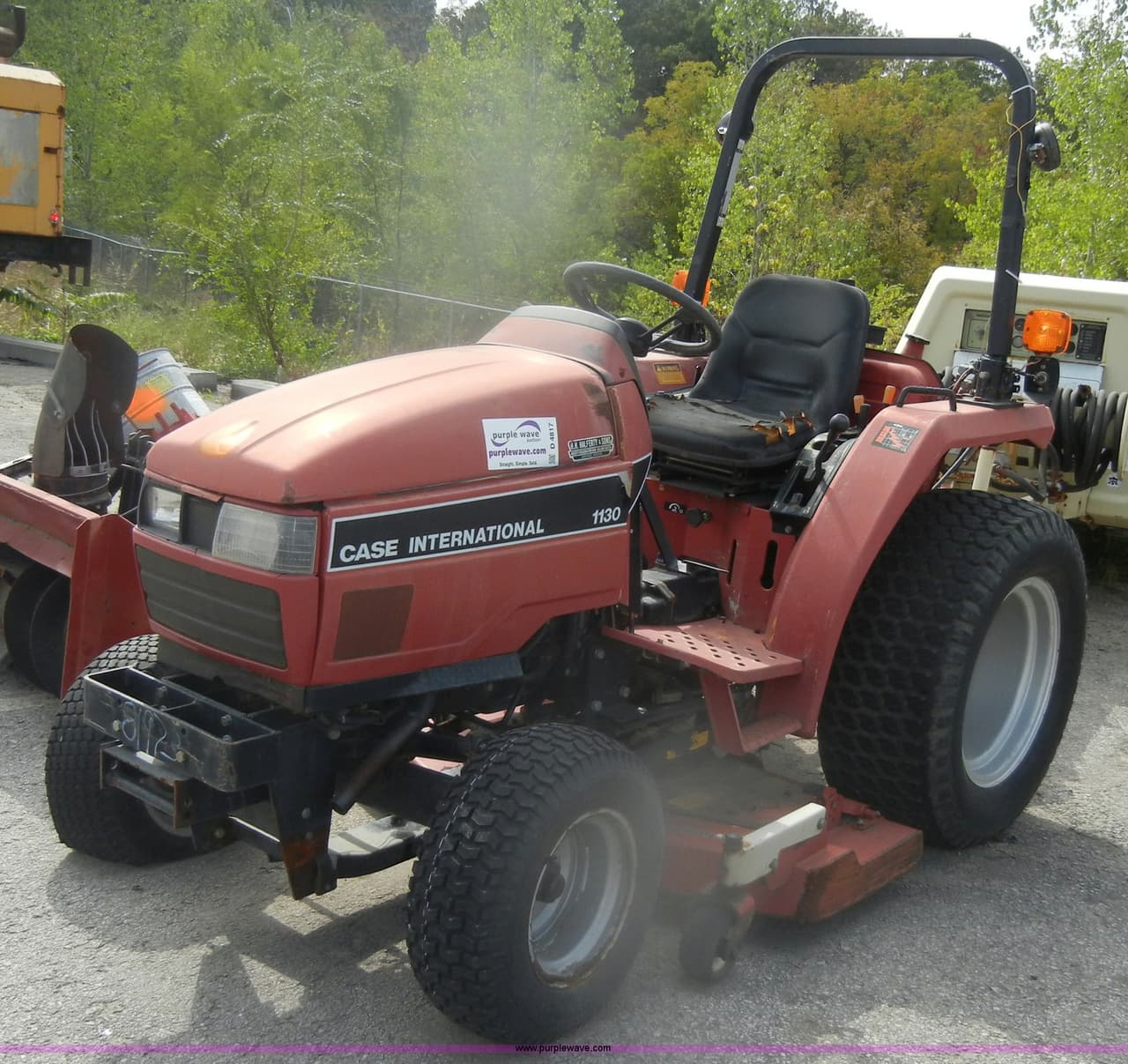

CaseIH 1130 photos
FAQ
Common questions
What years was the CaseIH 1130 manufactured?
Production of the CaseIH 1130 began in 1991.
What is the working weight of the CaseIH 1130?
The operating weight of the CaseIH 1130 is approximately 2,006 lb.
What type of transmission does the CaseIH 1130 have?
The CaseIH 1130 uses a Gear type transmission offering 9 forward gears.
What type of hydraulic system does the CaseIH 1130 use?
Hydraulics on the CaseIH 1130 are Open center.
What hitch category is the CaseIH 1130?
The CaseIH 1130 uses a Category I hitch with a lift capacity of 2,200 lb.
How powerful is the CaseIH 1130?
The CaseIH 1130 has an engine power output of 23 hp. It is powered by a 3-cylinder engine displacing 75.4 ci.
What routine service does the CaseIH 1130 need?
Regular maintenance for the CaseIH 1130 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
