Brand siblingRow CropPerformance profile
CaseIH 3594
The CaseIH 3594 is a powerful row crop tractor built from 1985 to 1988. It has a strong 6-cylinder diesel engine that makes 202 horsepower, which is above average for tractors of its time. The engine is turbocharged and liquid-cooled, helping it work hard in tough conditions. With a very high displacement of 504 cubic inches, this tractor has plenty of pulling power for big farm jobs. This tractor is designed for comfort and ease of use. It has a cab to keep the driver safe and comfortable, and power steering to make turning easier. The transmission has 24 forward gears and 3 reverse gears, giving the driver lots of options for different tasks. The 3594 is a 4-wheel drive tractor, which means it can handle tough terrain and heavy loads. It has a strong hitch that can lift up to 7,750 pounds, which is above average for tractors in its class. The tractor also has a rear PTO that spins at 1000 rpm, making it great for running all kinds of farm equipment.
ManufacturerCaseIHPower202 hpEngine6-cylTransPartial power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 202hp
- Operating Weight
- 17,590 lb
- Transmission
- Partial power shift
At a glance
How the 3594 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
202 hp · 77th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 3594 ranks at the 77th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH 3594
The CaseIH 3594 is a powerful row crop tractor built from 1985 to 1988. It has a strong 6-cylinder diesel engine that makes 202 horsepower, which is above average for tractors of its time. The engine is turbocharged and liquid-cooled, helping it work hard in tough conditions. With a very high displacement of 504 cubic inches, this tractor has plenty of pulling power for big farm jobs. This tractor is designed for comfort and ease of use. It has a cab to keep the driver safe and comfortable, and power steering to make turning easier. The transmission has 24 forward gears and 3 reverse gears, giving the driver lots of options for different tasks. The 3594 is a 4-wheel drive tractor, which means it can handle tough terrain and heavy loads. It has a strong hitch that can lift up to 7,750 pounds, which is above average for tractors in its class. The tractor also has a rear PTO that spins at 1000 rpm, making it great for running all kinds of farm equipment.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 3594 |
| Category | Row Crop tractor |
| Type | 4x4 |
| Years built | 1985–1988 |
| Operating weight | 17,590lb |
Engine
| Make | Case |
|---|---|
| Power | 202hp |
| Cylinders | 6 |
| Displacement | 504ci |
| Bore | 4.61in |
| Stroke | 5in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | MFWD 4WD |
| Steering | Power |
| Brakes | Differential hydraulic wet disc |
| Cab | Cab |
Hydraulics
| Type | Closed Center |
|---|
Power take-off
| Rear PTO | Independent Rear PTO |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Length | 192.5in |
|---|---|
| Width | 59.8in |
| Height | 120in |
| Operating weight | 17,590lb |
Head to head
3594 vs. Row Crop median
How the CaseIH 3594 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 202 hp | 138 hp | +46% | 77th |
| Engine Displacement | 504 ci | 391 ci | +29% | 85th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 17,590 lb | 12,307 lb | +43% | 75th |
| Length | 193 in | 180 in | +7% | 66th |
| Width | 59.8 in | 91.2 in | -34% | 2nd |
| Height | 120 in | 114 in | +6% | 72nd |
| 3-Point Hitch Capacity | 7,750 lb | 11,023 lb | -30% | 29th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Magnum 200 | 200 hp | 20,705 lb | — | Compare → |
| CaseIH MX210 Magnum | 200 hp | — | — | Compare → |
| CaseIH Puma 200 | 200 hp | 18,940 lb | — | Compare → |
| CaseIH 8940 Magnum | 205 hp | 18,170 lb | 1997–1998 | Compare → |
| CaseIH 2394 | 197 hp | 16,240 lb | 1984–1988 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger MT575D | 202.4 hp | 18,660 lb | — | Compare → |
| AGCO RT165A | 200 hp | 17,460 lb | — | Compare → |
| Challenger MT565E | 197.8 hp | 11,180 lb | — | Compare → |
| Allis Chalmers 7080 | 210 hp | 13,638 lb | 1975–1981 | Compare → |
| Challenger 35 | 210 hp | 22,262 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

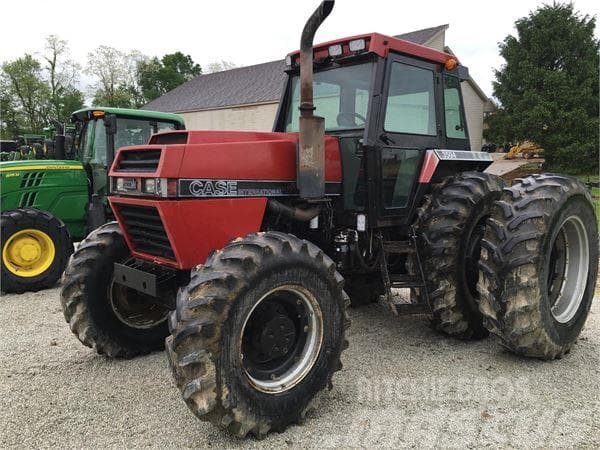

CaseIH 3594 photos
FAQ
Common questions
When was the CaseIH 3594 in production?
CaseIH 3594 production started in 1985 and ended in 1988.
What transmission is in the CaseIH 3594?
Transmission on the CaseIH 3594 is Partial power shift, with 24 forward speeds.
What type of hydraulic system does the CaseIH 3594 use?
Hydraulics on the CaseIH 3594 are Closed Center.
What hitch category is the CaseIH 3594?
The CaseIH 3594 uses a Category III hitch with a lift capacity of 7,750 lb.
How much horsepower does the CaseIH 3594 have?
The CaseIH 3594 produces 202 hp from its 6-cylinder engine. Engine displacement is 504 ci.
How much does the CaseIH 3594 weigh?
The CaseIH 3594 weighs about 17,590 lb in operating condition.
What maintenance does the CaseIH 3594 require?
Like any tractor, the CaseIH 3594 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
