UtilityPerformance profile
CaseIH 585XL
The CaseIH 585XL is a utility tractor built for farm work. It has a 2WD drive system and a strong 60 hp diesel engine. This tractor is good for many jobs around the farm. It has a cab to keep the driver comfortable and safe. The 585XL has a synchromesh transmission with 16 forward gears and 8 reverse gears. This gives the driver lots of options for different tasks. The engine is liquid-cooled and has 4 cylinders. It's an above-average size for tractors like this. The tractor weighs 6400 lb, which is also above average. This weight helps it pull heavy loads. It has standard ag tires in the front and back, good for farm use. The tractor is 142.5 inches long and 103.1 inches tall.
ManufacturerCaseIHPower60 hpEngine4-cylTransSynchromesh; Two-Speed Power Shift
Quick specs
- Category
- Utility
- Engine Power Output
- 60hp
- Operating Weight
- 6,400 lb
- Transmission
- Synchromesh; Two-Speed Power Shift
At a glance
How the 585XL compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
60 hp · 54th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 585XL ranks at the 54th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH 585XL
The CaseIH 585XL is a utility tractor built for farm work. It has a 2WD drive system and a strong 60 hp diesel engine. This tractor is good for many jobs around the farm. It has a cab to keep the driver comfortable and safe. The 585XL has a synchromesh transmission with 16 forward gears and 8 reverse gears. This gives the driver lots of options for different tasks. The engine is liquid-cooled and has 4 cylinders. It's an above-average size for tractors like this. The tractor weighs 6400 lb, which is also above average. This weight helps it pull heavy loads. It has standard ag tires in the front and back, good for farm use. The tractor is 142.5 inches long and 103.1 inches tall.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 585XL |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 6,400lb |
Engine
| Make | CaseIH |
|---|---|
| Model | D-206 |
| Power | 60hp |
| Cylinders | 4 |
| Displacement | 206ci |
| Bore | 3.88in |
| Stroke | 4.37in |
Transmission
| Type | Synchromesh; Two-Speed Power Shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
| Cab | Cab |
Dimensions
| Length | 142.5in |
|---|---|
| Height | 103.1in |
| Operating weight | 6,400lb |
Head to head
585XL vs. Utility median
How the CaseIH 585XL compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60 hp | 55 hp | +9% | 54th |
| Engine Displacement | 206 ci | 183 ci | +13% | 57th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,400 lb | 5,303 lb | +21% | 61st |
| Length | 143 in | 137 in | +4% | 58th |
| Height | 103 in | 94.1 in | +10% | 73rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 3230 | 60 hp | 6,147 lb | — | Compare → |
| CaseIH 585 | 60 hp | — | — | Compare → |
| CaseIH 595 | 60 hp | 5,640 lb | — | Compare → |
| CaseIH Farmall DX60 | 60 hp | 4,209 lb | — | Compare → |
| CaseIH JX70 | 62 hp | 5,152 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 426 | 58 hp | 7,188 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

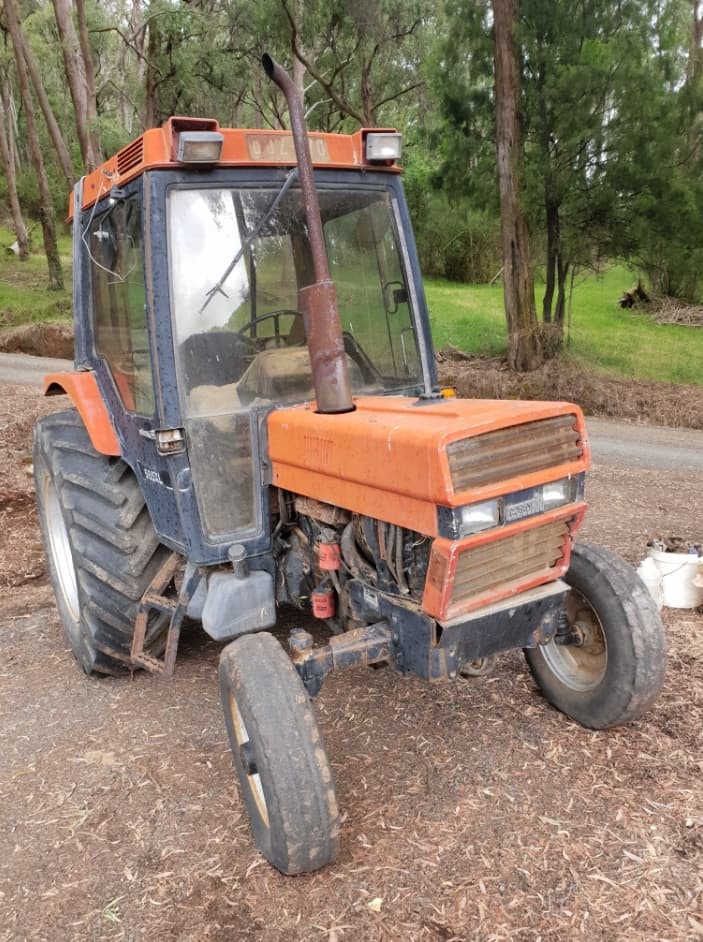

CaseIH 585XL photos
FAQ
Common questions
How powerful is the CaseIH 585XL?
The CaseIH 585XL has an engine power output of 60 hp. It is powered by a 4-cylinder engine displacing 206 ci.
What three-point hitch category does the CaseIH 585XL use?
The CaseIH 585XL has a Category II/I three-point hitch.
What is the working weight of the CaseIH 585XL?
The operating weight of the CaseIH 585XL is approximately 6,400 lb.
What type of transmission does the CaseIH 585XL have?
The CaseIH 585XL uses a Synchromesh; Two-Speed Power Shift transmission offering 16 forward gears.
What routine service does the CaseIH 585XL need?
Regular maintenance for the CaseIH 585XL includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
