Brand siblingUtilityPerformance profile
CaseIH JX70
The CaseIH JX70 is a utility tractor built for farmers who need a reliable workhorse. This 2WD tractor has a 4x2 chassis and hydrostatic power steering, making it easy to handle in the field. It comes with a mechanical shuttle transmission that offers 12 forward and 12 reverse gears, giving drivers plenty of options for different tasks. Under the hood, the JX70 has a turbocharged diesel engine made by Iveco. This 3-cylinder engine is liquid-cooled and has an average displacement of 179 ci. It runs at 2500 rpm and produces 62 hp, which is above average for tractors in its class. The tractor weighs 5152 lb and measures 154.3 inches long, 71.2 inches wide, and 100 inches tall with a cab. It features a Category 3 hitch at the rear and an open center hydraulic system. Farmers can choose between a cab or ROPS (Roll-Over Protective Structure) for the operator station, depending on their needs and preferences.
ManufacturerCaseIHPower62 hpEngine3-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 62hp
- Operating Weight
- 5,152 lb
- Transmission
- Mechanical shuttle
At a glance
How the JX70 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
62 hp · 56th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The JX70 ranks at the 56th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH JX70
The CaseIH JX70 is a utility tractor built for farmers who need a reliable workhorse. This 2WD tractor has a 4x2 chassis and hydrostatic power steering, making it easy to handle in the field. It comes with a mechanical shuttle transmission that offers 12 forward and 12 reverse gears, giving drivers plenty of options for different tasks. Under the hood, the JX70 has a turbocharged diesel engine made by Iveco. This 3-cylinder engine is liquid-cooled and has an average displacement of 179 ci. It runs at 2500 rpm and produces 62 hp, which is above average for tractors in its class. The tractor weighs 5152 lb and measures 154.3 inches long, 71.2 inches wide, and 100 inches tall with a cab. It features a Category 3 hitch at the rear and an open center hydraulic system. Farmers can choose between a cab or ROPS (Roll-Over Protective Structure) for the operator station, depending on their needs and preferences.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | JX70 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,152lb |
Engine
| Make | Iveco |
|---|---|
| Model | Turbocharged diesel |
| Power | 62hp |
| Cylinders | 3 |
| Displacement | 179ci |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
| Cab | Cab or ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 154.3in |
|---|---|
| Width | 71.2in |
| Height | 100in |
| Operating weight | 5,152lb |
Head to head
JX70 vs. Utility median
How the CaseIH JX70 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 62 hp | 55 hp | +13% | 56th |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 5,152 lb | 5,303 lb | -3% | 49th |
| Length | 154 in | 137 in | +13% | 71st |
| Width | 71.2 in | 66 in | +8% | 63rd |
| Height | 100 in | 94.1 in | +6% | 66th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH CS 63 | 63 hp | 5,975 lb | — | Compare → |
| CaseIH 3230 | 60 hp | 6,147 lb | — | Compare → |
| CaseIH 585 | 60 hp | — | — | Compare → |
| CaseIH 585XL | 60 hp | 6,400 lb | — | Compare → |
| CaseIH 595 | 60 hp | 5,640 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| Belarus 5011 | 60 hp | — | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

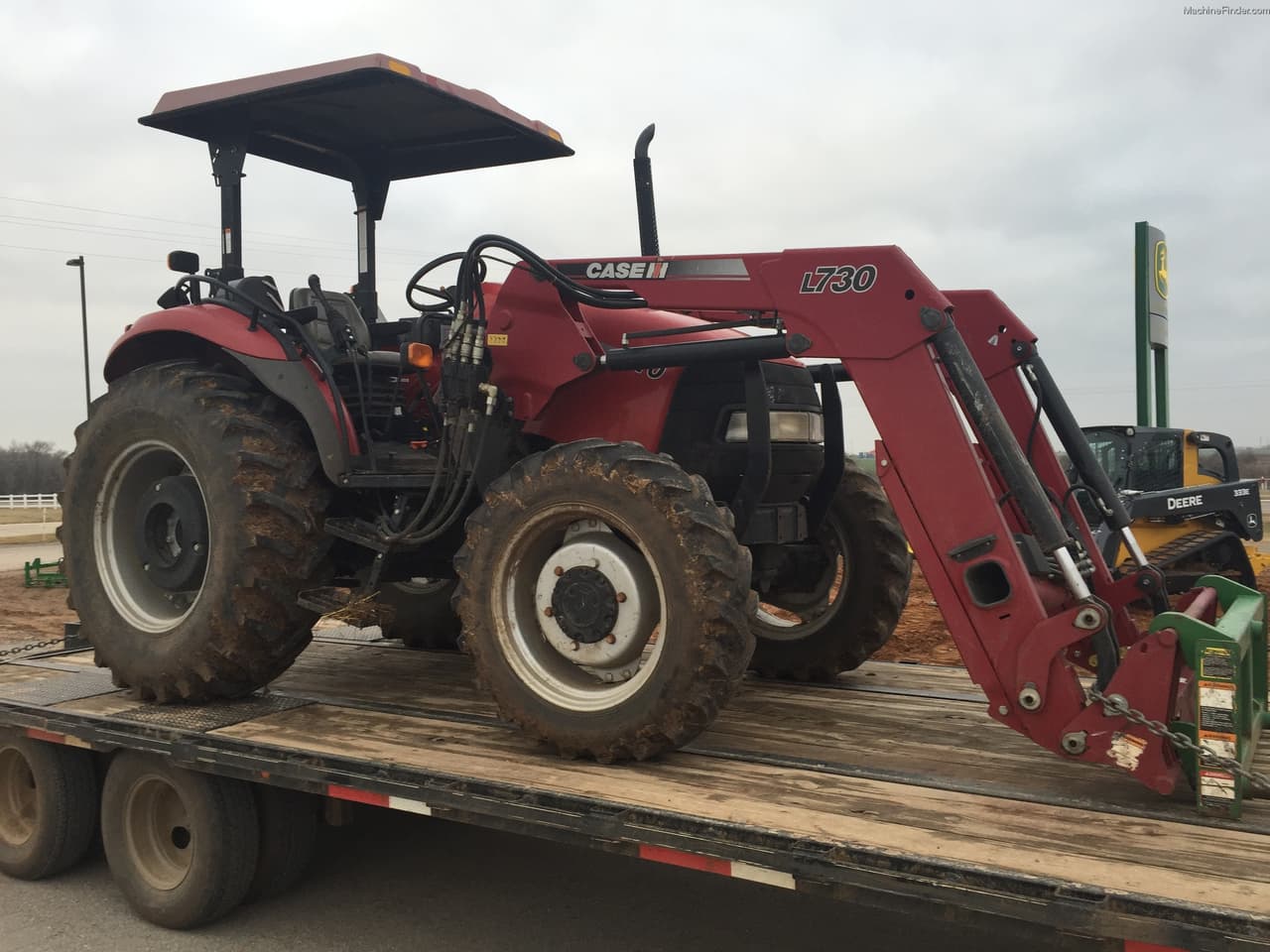

CaseIH JX70 photos
FAQ
Common questions
How powerful is the CaseIH JX70?
The CaseIH JX70 has an engine power output of 62 hp. It is powered by a 3-cylinder engine displacing 179 ci.
What type of transmission does the CaseIH JX70 have?
The CaseIH JX70 uses a Mechanical shuttle transmission offering 12 forward gears.
What type of hydraulic system does the CaseIH JX70 use?
Hydraulics on the CaseIH JX70 are Open Center.
What hitch category is the CaseIH JX70?
The CaseIH JX70 uses a Category Category 3 hitch.
What is the working weight of the CaseIH JX70?
The operating weight of the CaseIH JX70 is approximately 5,152 lb.
What routine service does the CaseIH JX70 need?
Regular maintenance for the CaseIH JX70 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
