CaseIH Farmall 110A
The CaseIH Farmall 110A is a powerful utility tractor designed for various farm tasks. It features a 2WD chassis with power steering, making it easy to handle in the field. The tractor is equipped with a Power Shuttle transmission, allowing for smooth gear changes and improved efficiency. Under the hood, the Farmall 110A boasts a robust FPT engine. This 4-cylinder, turbocharged diesel engine has a very high displacement of 273.7 ci, providing plenty of power for demanding jobs. With 110 hp output at 2200 rpm, this tractor offers above-average performance in its class. The engine is liquid-cooled and features an 8-valve configuration for reliable operation. Weighing in at 8003 lb, the Farmall 110A has an above-average operating weight, giving it good stability and traction. It comes with a Category II rear hitch and an open center hydraulic system, making it versatile for various implements and attachments.
ManufacturerCaseIHPower110 hpEngine4-cylTransPower Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 110hp
- Operating Weight
- 8,003 lb
- Transmission
- Power Shuttle
At a glance
How the Farmall 110A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
110 hp · 87th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 110A ranks at the 87th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 110A
The CaseIH Farmall 110A is a powerful utility tractor designed for various farm tasks. It features a 2WD chassis with power steering, making it easy to handle in the field. The tractor is equipped with a Power Shuttle transmission, allowing for smooth gear changes and improved efficiency. Under the hood, the Farmall 110A boasts a robust FPT engine. This 4-cylinder, turbocharged diesel engine has a very high displacement of 273.7 ci, providing plenty of power for demanding jobs. With 110 hp output at 2200 rpm, this tractor offers above-average performance in its class. The engine is liquid-cooled and features an 8-valve configuration for reliable operation. Weighing in at 8003 lb, the Farmall 110A has an above-average operating weight, giving it good stability and traction. It comes with a Category II rear hitch and an open center hydraulic system, making it versatile for various implements and attachments.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 110A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 8,003lb |
Engine
| Make | FPT |
|---|---|
| Power | 110hp |
| Cylinders | 4 |
| Displacement | 273.7ci |
| Bore | 4.09in |
| Stroke | 5.2in |
Transmission
| Type | Power Shuttle |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Operating weight | 8,003lb |
|---|
Head to head
Farmall 110A vs. Utility median
How the CaseIH Farmall 110A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 110 hp | 55 hp | +100% | 87th |
| Engine Displacement | 274 ci | 183 ci | +49% | 79th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 8,003 lb | 5,303 lb | +51% | 75th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 5,107–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH JXU 115 | 111.3 hp | 9,369 lb | — | Compare → |
| CaseIH 5140 Maxxum | 108.5 hp | 9,810 lb | 1990–1997 | Compare → |
| CaseIH 5250 Maxxum | 112 hp | 9,810 lb | 1992–1997 | Compare → |
| CaseIH Farmall 105A | 112 hp | 7,304 lb | — | Compare → |
| CaseIH Farmall 110C | 107 hp | 6,989 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
| Agrinar T-110 | 110 hp | — | — | Compare → |
| Allis Chalmers HD11 | 110 hp | 21,000 lb | 1955–1965 | Compare → |
| Apollo 1104 | 110 hp | 10,710 lb | — | Compare → |
| AGCO LT85A | 110.1 hp | 10,605 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

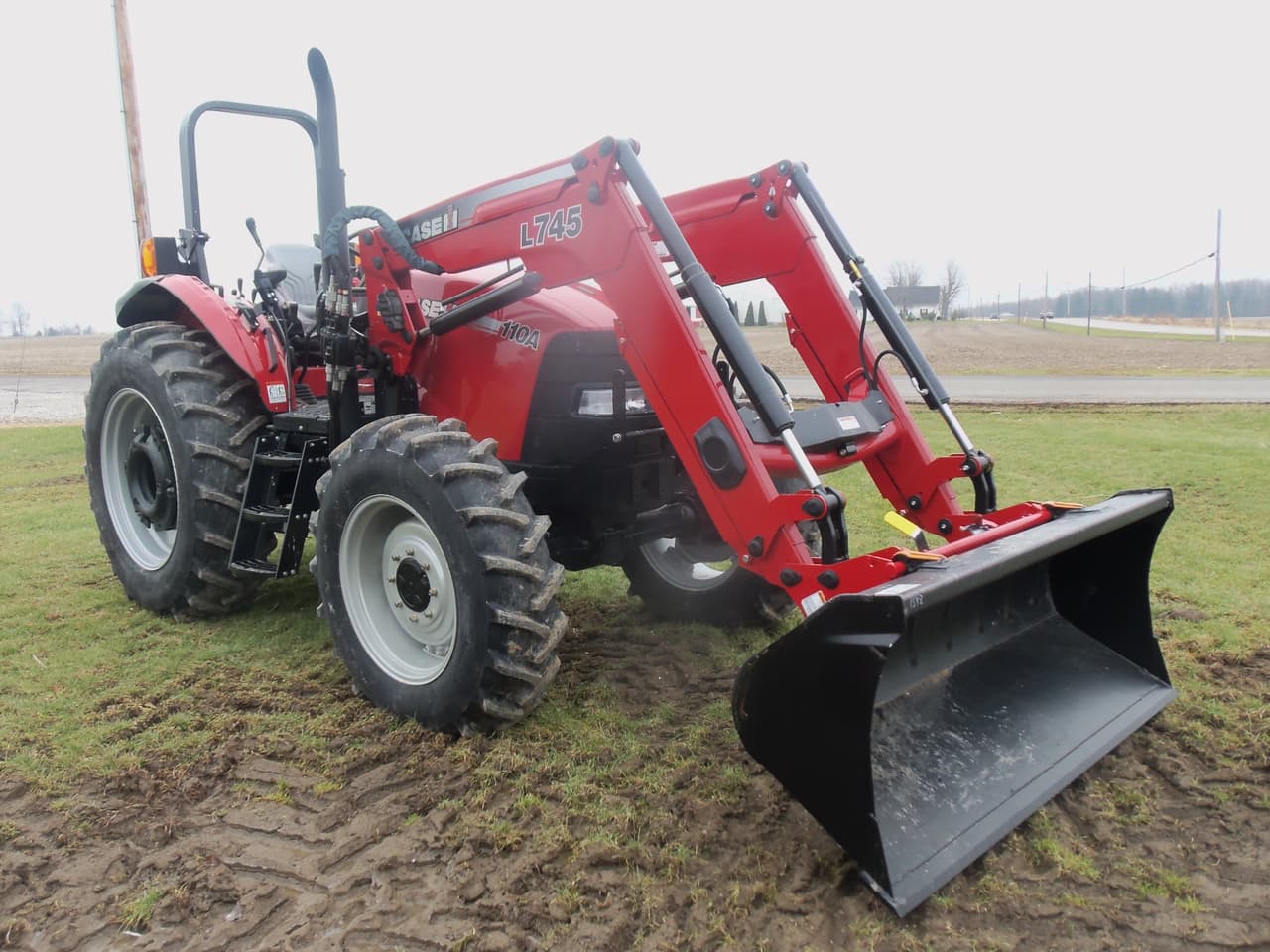

CaseIH Farmall 110A photos
FAQ
Common questions
How powerful is the CaseIH Farmall 110A?
The CaseIH Farmall 110A has an engine power output of 110 hp. It is powered by a 4-cylinder engine displacing 273.7 ci.
What hitch category is the CaseIH Farmall 110A?
The CaseIH Farmall 110A uses a Category II hitch.
What is the working weight of the CaseIH Farmall 110A?
The operating weight of the CaseIH Farmall 110A is approximately 8,003 lb.
What type of transmission does the CaseIH Farmall 110A have?
The CaseIH Farmall 110A uses a Power Shuttle transmission.
What type of hydraulic system does the CaseIH Farmall 110A use?
Hydraulics on the CaseIH Farmall 110A are Open Center.
What routine service does the CaseIH Farmall 110A need?
Regular maintenance for the CaseIH Farmall 110A includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
