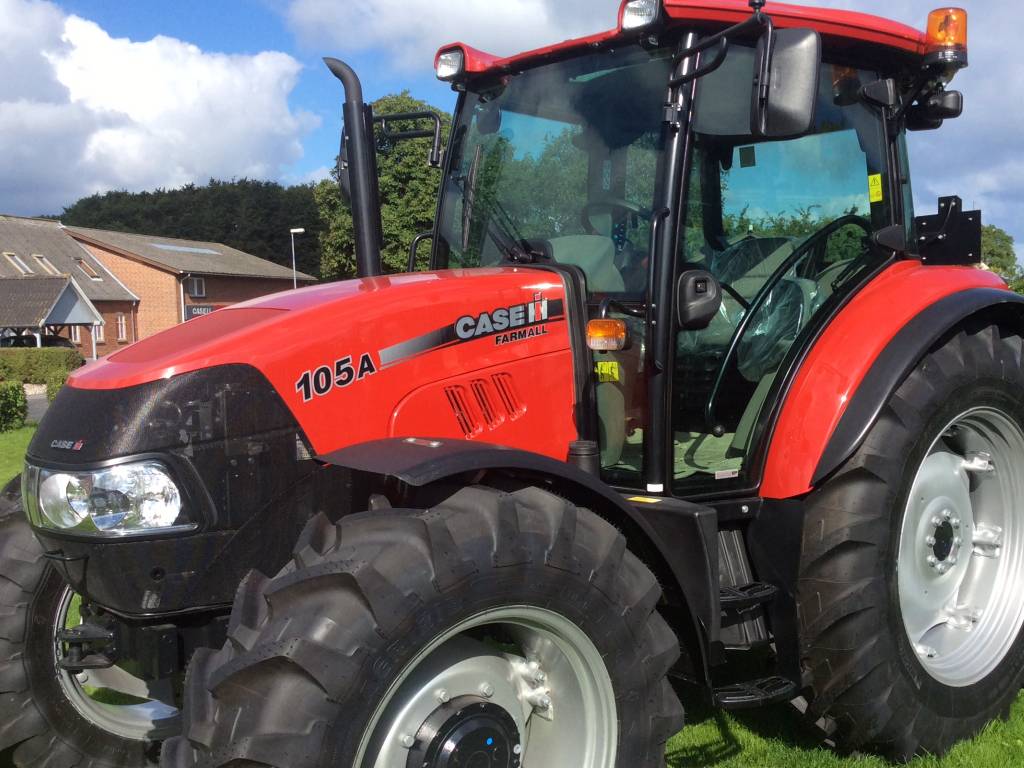

CaseIH Farmall 105A
The CaseIH Farmall 105A is a powerful utility tractor built for tough farm work. It has a 2WD chassis and power steering, making it easy to handle. The tractor uses a 12-speed power shuttle transmission, giving drivers lots of options for different tasks. Under the hood, the Farmall 105A has a strong FPT F5G engine. This diesel engine is turbocharged and has 4 cylinders. It puts out 112 hp, which is very high for its class. The engine size is above average at 207 cubic inches. The tractor weighs 7,304 lb, which is also above average. It has a Category II/I rear hitch and an open center hydraulic system. The operator station is a ROPS type for safety. The tractor is 162 inches long and 103 inches tall, with ag tires in front and back.
ManufacturerCaseIHPower112 hpEngine4-cylTransPower Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 112hp
- Operating Weight
- 7,304 lb
- Transmission
- Power Shuttle
At a glance
How the Farmall 105A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
112 hp · 87th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 105A ranks at the 87th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 105A
The CaseIH Farmall 105A is a powerful utility tractor built for tough farm work. It has a 2WD chassis and power steering, making it easy to handle. The tractor uses a 12-speed power shuttle transmission, giving drivers lots of options for different tasks. Under the hood, the Farmall 105A has a strong FPT F5G engine. This diesel engine is turbocharged and has 4 cylinders. It puts out 112 hp, which is very high for its class. The engine size is above average at 207 cubic inches. The tractor weighs 7,304 lb, which is also above average. It has a Category II/I rear hitch and an open center hydraulic system. The operator station is a ROPS type for safety. The tractor is 162 inches long and 103 inches tall, with ag tires in front and back.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 105A |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 7,304lb |
Engine
| Make | FPT |
|---|---|
| Model | F5G |
| Power | 112hp |
| Cylinders | 4 |
| Displacement | 207ci |
| Bore | 3.9in |
| Stroke | 4.33in |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 162in |
|---|---|
| Height | 103in |
| Operating weight | 7,304lb |
Head to head
Farmall 105A vs. Utility median
How the CaseIH Farmall 105A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 112 hp | 55 hp | +104% | 87th |
| Engine Displacement | 207 ci | 183 ci | +13% | 57th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,304 lb | 5,303 lb | +38% | 70th |
| Length | 162 in | 137 in | +19% | 79th |
| Height | 103 in | 94.1 in | +9% | 73rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 5250 Maxxum | 112 hp | 9,810 lb | 1992–1997 | Compare → |
| CaseIH JXU 115 | 111.3 hp | 9,369 lb | — | Compare → |
| CaseIH Farmall 110A | 110 hp | 8,003 lb | — | Compare → |
| CaseIH Puma 115 | 115 hp | 13,230 lb | — | Compare → |
| CaseIH 5140 Maxxum | 108.5 hp | 9,810 lb | 1990–1997 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| AGCO LT85A | 110.1 hp | 10,605 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
| Agrinar T-110 | 110 hp | — | — | Compare → |
| Allis Chalmers HD11 | 110 hp | 21,000 lb | 1955–1965 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH Farmall 105A photos
FAQ
Common questions
What is the engine power output of the CaseIH Farmall 105A?
Rated engine output for the CaseIH Farmall 105A is 112 hp, delivered by a 4-cylinder engine. The engine displaces 207 ci.
Which transmission does the CaseIH Farmall 105A use?
The CaseIH Farmall 105A is equipped with a Power Shuttle transmission with 12 forward gears.
What type of hydraulic system does the CaseIH Farmall 105A use?
Hydraulics on the CaseIH Farmall 105A are Open Center.
What hitch category is the CaseIH Farmall 105A?
The CaseIH Farmall 105A uses a Category II/I hitch.
What is the operating weight of the CaseIH Farmall 105A?
In working trim, the CaseIH Farmall 105A comes in at roughly 7,304 lb.
How do I maintain a CaseIH Farmall 105A?
Routine service for the CaseIH Farmall 105A covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
