Row CropPerformance profile
CaseIH Farmall 115C
The CaseIH Farmall 115C is a powerful 4-wheel drive tractor built for tough farm work. It has a strong engine made by Fiat Powertrain Technologies (FPT) that can produce 115 horsepower. This tractor uses diesel fuel and has a turbocharged engine with four cylinders, which helps it work hard in the fields. The Farmall 115C has a mechanical shuttle transmission with 12 forward and 12 reverse gears. This gives the driver lots of options for different speeds and tasks. The tractor is big and sturdy, measuring 149 inches long, 83 inches wide, and 103 inches tall. It weighs 7,937 pounds, which helps it stay stable during heavy work. The tractor has a three-point hitch at the back for attaching tools and equipment. This CaseIH model comes with some helpful features. It has a system to control emissions and make the engine run cleaner. The fuel system uses advanced technology for better performance. The tractor also has a grid heater to help it start in cold weather. With its open center hydraulic system and ROPS (Roll-Over Protective Structure) for safety, the Farmall 115C is ready to tackle many farm jobs.
ManufacturerCaseIHPower115 hpEngine4-cylTransMechanical shuttle
Quick specs
- Category
- Row Crop
- Engine Power Output
- 115hp
- Operating Weight
- 7,937 lb
- Transmission
- Mechanical shuttle
At a glance
How the Farmall 115C compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
115 hp · 35th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Farmall 115C ranks at the 35th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH Farmall 115C
The CaseIH Farmall 115C is a powerful 4-wheel drive tractor built for tough farm work. It has a strong engine made by Fiat Powertrain Technologies (FPT) that can produce 115 horsepower. This tractor uses diesel fuel and has a turbocharged engine with four cylinders, which helps it work hard in the fields. The Farmall 115C has a mechanical shuttle transmission with 12 forward and 12 reverse gears. This gives the driver lots of options for different speeds and tasks. The tractor is big and sturdy, measuring 149 inches long, 83 inches wide, and 103 inches tall. It weighs 7,937 pounds, which helps it stay stable during heavy work. The tractor has a three-point hitch at the back for attaching tools and equipment. This CaseIH model comes with some helpful features. It has a system to control emissions and make the engine run cleaner. The fuel system uses advanced technology for better performance. The tractor also has a grid heater to help it start in cold weather. With its open center hydraulic system and ROPS (Roll-Over Protective Structure) for safety, the Farmall 115C is ready to tackle many farm jobs.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 115C |
| Category | Row Crop tractor |
| Type | 4WD |
| Operating weight | 7,937lb |
Engine
| Make | Fiat Powertrain Technologies (FPT) |
|---|---|
| Model | F5H |
| Power | 115hp |
| Cylinders | 4 |
| Displacement | 207ci |
| Bore | 3.9in |
| Stroke | 4.33in |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4WD |
|---|---|
| Drive | 4-Wheel Drive |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 149in |
|---|---|
| Width | 83in |
| Height | 103in |
| Operating weight | 7,937lb |
Head to head
Farmall 115C vs. Row Crop median
How the CaseIH Farmall 115C compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 115 hp | 138 hp | -17% | 35th |
| Engine Displacement | 207 ci | 391 ci | -47% | 10th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 12 | 16 | -25% | 27th |
| Operating Weight | 7,937 lb | 12,307 lb | -36% | 20th |
| Length | 149 in | 180 in | -17% | 16th |
| Width | 83 in | 91.2 in | -9% | 32nd |
| Height | 103 in | 114 in | -9% | 25th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 2096 | 116 hp | 11,875 lb | 1985–1989 | Compare → |
| CaseIH 1694 | 112 hp | 9,580 lb | — | Compare → |
| CaseIH CS 120 | 118.4 hp | 11,563 lb | — | Compare → |
| CaseIH Maxxum 110 | 110 hp | 10,240 lb | — | Compare → |
| CaseIH CS 110 | 108.5 hp | 11,056 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| AGCO RT110A | 116.9 hp | 12,200 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

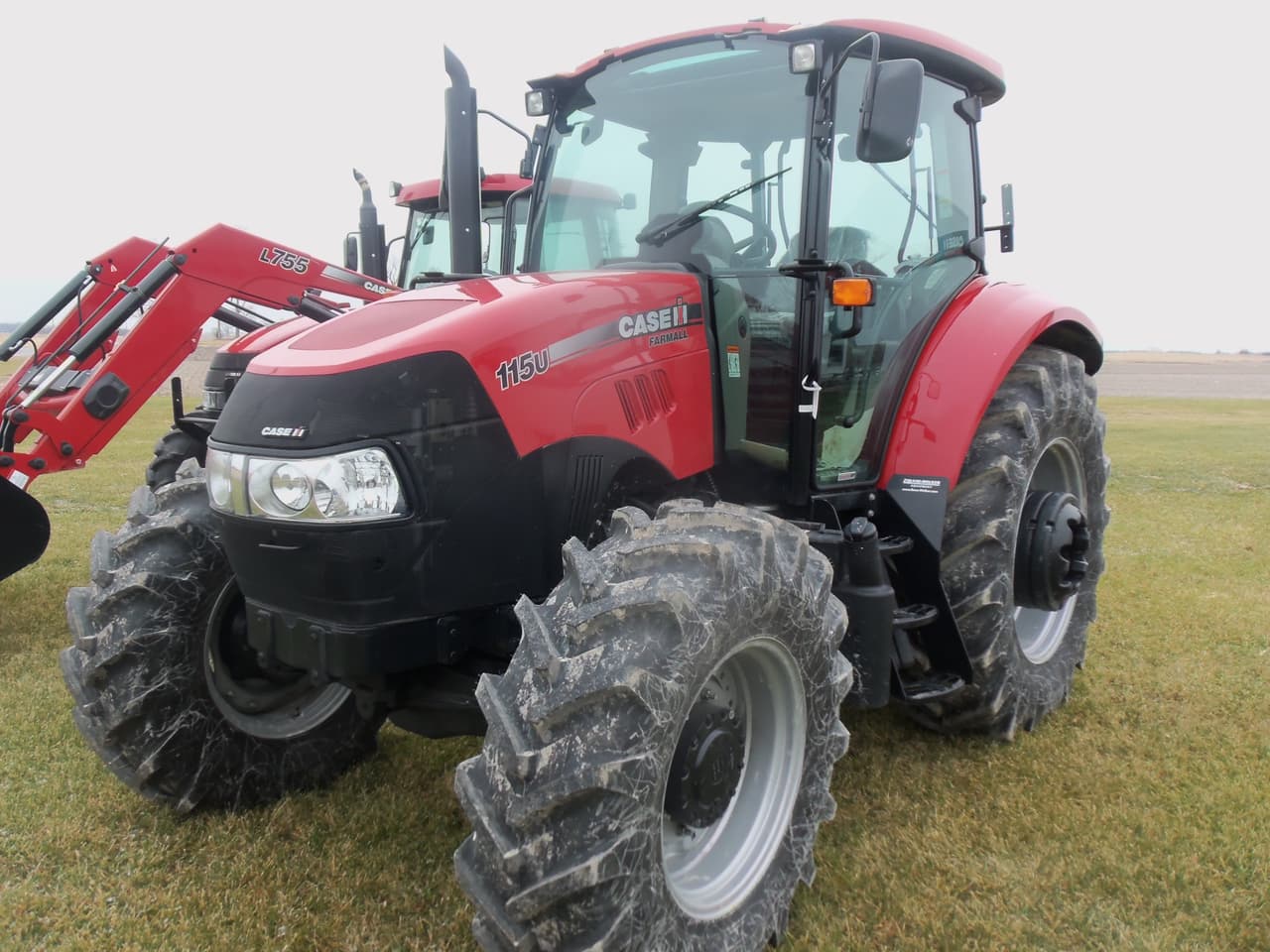

CaseIH Farmall 115C photos
FAQ
Common questions
What is the engine power output of the CaseIH Farmall 115C?
Rated engine output for the CaseIH Farmall 115C is 115 hp, delivered by a 4-cylinder engine. The engine displaces 207 ci.
What hydraulics does the CaseIH Farmall 115C have?
The CaseIH Farmall 115C uses an Open Center hydraulic system.
What three-point hitch category does the CaseIH Farmall 115C use?
The CaseIH Farmall 115C has a Category II three-point hitch.
What is the operating weight of the CaseIH Farmall 115C?
In working trim, the CaseIH Farmall 115C comes in at roughly 7,937 lb.
Which transmission does the CaseIH Farmall 115C use?
The CaseIH Farmall 115C is equipped with a Mechanical shuttle transmission with 12 forward gears.
How do I maintain a CaseIH Farmall 115C?
Routine service for the CaseIH Farmall 115C covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
