Row CropPerformance profile
CaseIH CS 110
The CaseIH CS 110 is a powerful row crop tractor built for tough farm work. It has a 4WD drive system and power steering, making it easy to handle in the fields. The tractor uses a four-speed power shift transmission with 24 forward and 24 reverse gears, giving farmers lots of options for different tasks. Under the hood, the CS 110 has a Sisu 420.85 diesel engine. This engine is turbocharged and liquid-cooled, with 4 cylinders. It can produce 108.5 hp at 2300 rpm, which is average power for its class. The engine size is below average, but it makes up for it with above-average rpm. The tractor weighs 11,056 lb, which is about average for similar models. It's 94.1 inches wide and 114.2 inches tall, with a rear hitch for attaching farm tools. CaseIH is known for making reliable tractors, and the CS 110 is no exception.
ManufacturerCaseIHPower108.5 hpEngine4-cylTransFour-speed power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 109hp
- Operating Weight
- 11,056 lb
- Transmission
- Four-speed power shift
At a glance
How the CS 110 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
108.5 hp · 30th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The CS 110 ranks at the 30th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH CS 110
The CaseIH CS 110 is a powerful row crop tractor built for tough farm work. It has a 4WD drive system and power steering, making it easy to handle in the fields. The tractor uses a four-speed power shift transmission with 24 forward and 24 reverse gears, giving farmers lots of options for different tasks. Under the hood, the CS 110 has a Sisu 420.85 diesel engine. This engine is turbocharged and liquid-cooled, with 4 cylinders. It can produce 108.5 hp at 2300 rpm, which is average power for its class. The engine size is below average, but it makes up for it with above-average rpm. The tractor weighs 11,056 lb, which is about average for similar models. It's 94.1 inches wide and 114.2 inches tall, with a rear hitch for attaching farm tools. CaseIH is known for making reliable tractors, and the CS 110 is no exception.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | CS 110 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 11,056lb |
Engine
| Make | Sisu |
|---|---|
| Model | 420.85 |
| Power | 108.5hp |
| Cylinders | 4 |
| Displacement | 268.5ci |
| Bore | 4.25in |
| Stroke | 4.72in |
Transmission
| Type | Four-speed power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Width | 94.1in |
|---|---|
| Height | 114.2in |
| Operating weight | 11,056lb |
Head to head
CS 110 vs. Row Crop median
How the CaseIH CS 110 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 109 hp | 138 hp | -21% | 30th |
| Engine Displacement | 269 ci | 391 ci | -31% | 23rd |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 11,056 lb | 12,307 lb | -10% | 40th |
| Width | 94.1 in | 91.2 in | +3% | 60th |
| Height | 114 in | 114 in | +1% | 53rd |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Maxxum 110 | 110 hp | 10,240 lb | — | Compare → |
| CaseIH Farmall 105V | 106 hp | 5,979 lb | — | Compare → |
| CaseIH 1694 | 112 hp | 9,580 lb | — | Compare → |
| CaseIH 5130 | 105 hp | 9,458 lb | 1990–1997 | Compare → |
| CaseIH Farmall 115C | 115 hp | 7,937 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
| Agrinar T-110 | 110 hp | — | — | Compare → |
| Allis Chalmers HD11 | 110 hp | 21,000 lb | 1955–1965 | Compare → |
| Apollo 1104 | 110 hp | 10,710 lb | — | Compare → |
| AGCO LT85A | 110.1 hp | 10,605 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

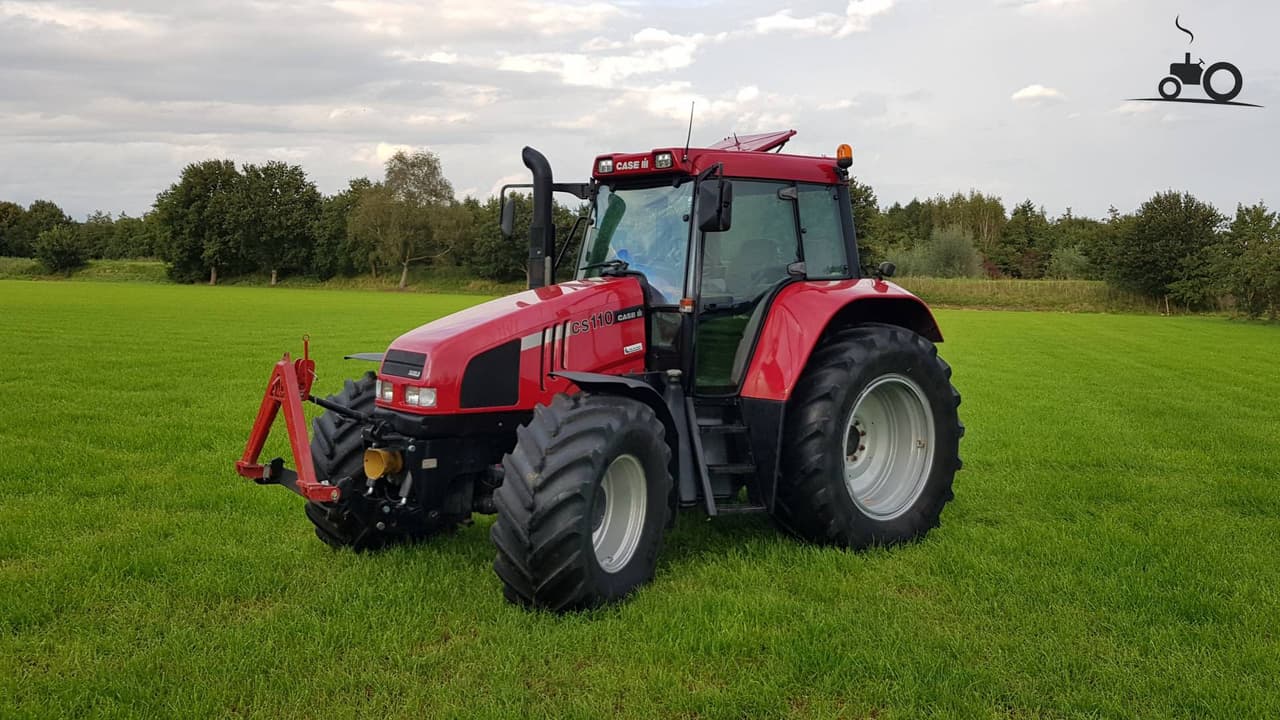

CaseIH CS 110 photos
FAQ
Common questions
What is the engine power output of the CaseIH CS 110?
Rated engine output for the CaseIH CS 110 is 108.5 hp, delivered by a 4-cylinder engine. The engine displaces 268.5 ci.
Which transmission does the CaseIH CS 110 use?
The CaseIH CS 110 is equipped with a Four-speed power shift transmission with 24 forward gears.
What hitch category is the CaseIH CS 110?
The CaseIH CS 110 uses a Category III hitch.
What is the operating weight of the CaseIH CS 110?
In working trim, the CaseIH CS 110 comes in at roughly 11,056 lb.
How do I maintain a CaseIH CS 110?
Routine service for the CaseIH CS 110 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
