Utility tractorsSpec sheet
CaseIH Farmall 140A
The CaseIH Farmall 140A is a powerful utility tractor built for tough farm work. It has a 2WD chassis with power steering, making it easy to handle in the fields. The tractor features a power shuttle transmission with 8 forward and 8 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmall 140A boasts a strong FPT engine. This 6-cylinder diesel engine is turbocharged and liquid-cooled, with 12 valves. It has a very high displacement of 411 ci, which means it can handle heavy loads with ease. The engine produces an impressive 140 hp at 2200 rpm, putting it well above average in power output for its class. With an operating weight of 9061 lb, this tractor is built to tackle serious farm work. It also comes with a rear-mounted category II hitch and an open center hydraulic system, making it versatile for various attachments and implements.
ManufacturerCaseIHPower140 hp(104.4 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionPower Shuttle
Key specifications
- Category
- Utility
- Engine power
- 140hp
- Operating weight
- 9,061 lb
- Transmission
- Power Shuttle
Category comparison
Farmall 140A compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
140 hp · 92nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 140A ranks at the 92nd percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 140A
The CaseIH Farmall 140A is a powerful utility tractor built for tough farm work. It has a 2WD chassis with power steering, making it easy to handle in the fields. The tractor features a power shuttle transmission with 8 forward and 8 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmall 140A boasts a strong FPT engine. This 6-cylinder diesel engine is turbocharged and liquid-cooled, with 12 valves. It has a very high displacement of 411 ci, which means it can handle heavy loads with ease. The engine produces an impressive 140 hp at 2200 rpm, putting it well above average in power output for its class. With an operating weight of 9061 lb, this tractor is built to tackle serious farm work. It also comes with a rear-mounted category II hitch and an open center hydraulic system, making it versatile for various attachments and implements.
Full specifications
Recorded specifications
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 140A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 9,061lb(4,110 kg) |
Engine
| Make | FPT |
|---|---|
| Power | 140hp(104.4 kW) |
| Cylinders | 6 |
| Displacement | 411ci(6.74 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 5.2in(132 mm) |
Transmission
| Type | Power Shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Operating weight | 9,061lb(4,110 kg) |
|---|
Closest alternatives
Farmall 140A compared with the nearest models by horsepower
Among utility tractors, the CaseIH Puma 140 and the Massey Ferguson 5480 are closest to the CaseIH Farmall 140A in rated horsepower. The CaseIH Puma 140 matches it on rated power and weighs 4,660 lb more, at 98 lb per horsepower against 65 lb. The Massey Ferguson 5480 matches it on rated power and weighs 390 lb more. Of the 3 models, the Farmall 140A has the lowest weight per horsepower at 65 lb per hp.
| Spec | CaseIH Farmall 140A | CaseIH Puma 140 | Massey Ferguson 5480 |
|---|---|---|---|
| Engine power | 140 hp104.4 kW | 140 hp104.4 kW | 140 hp104.4 kW |
| Operating weight | 9,061 lb4,110 kg | 13,725 lb6,226 kg | 9,453 lb4,288 kg |
| Weight per hp | 65 lb/hp39 kg/kW | 98 lb/hp60 kg/kW | 68 lb/hp41 kg/kW |
| Displacement | 411 ci6.74 L | 411 ci6.74 L | 299 ci4.9 L |
| Cylinders | 6 | 6 | 4 |
| Transmission | Power Shuttle | Partial Power Shift | Partial power shift |
| Drive | 2WD | 4x4 MFWD 4WD | 2WD |
Calculators
Calculators for the Farmall 140A
PTO power
About 116 to 126 PTO hp
Estimated from the 140 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 140 hp tractor can run
Maximum size is about a 16.5 ft rotary cutter or a 14 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
75 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
140 hp is 104.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Farmall 140A vs. Utility median
CaseIH Farmall 140A compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 140 hp | 55 hp | +155% | 92nd |
| Engine Displacement | 411 ci | 183 ci | +124% | 91st |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 9,061 lb | 5,303 lb | +71% | 82nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other CaseIH models
Other manufacturers
Models with similar horsepower
Gallery

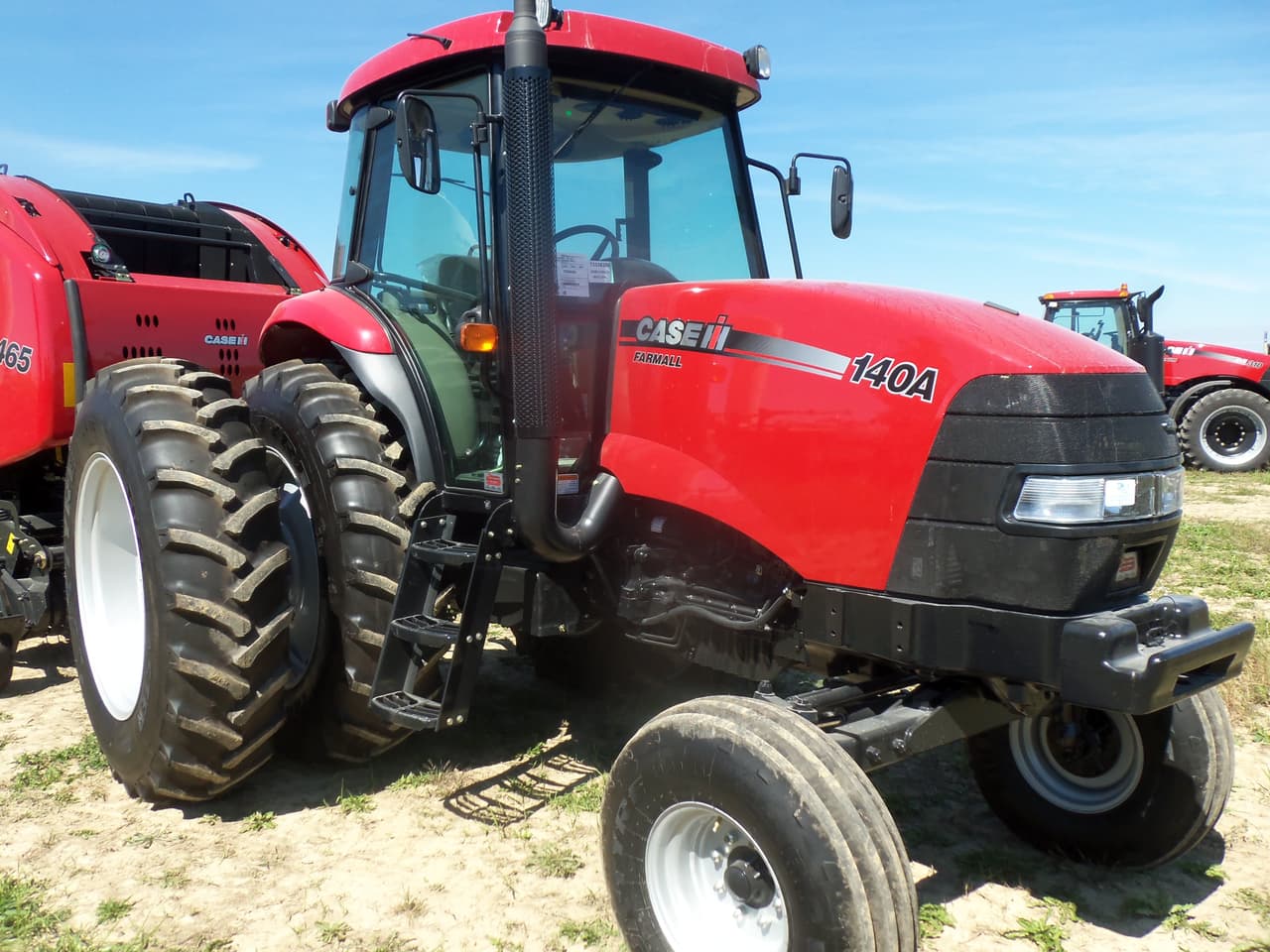

CaseIH Farmall 140A photos
FAQ
Frequently asked questions
How powerful is the CaseIH Farmall 140A?
The CaseIH Farmall 140A has an engine power output of 140 hp. It is powered by a 6-cylinder engine displacing 411 ci.
What is the working weight of the CaseIH Farmall 140A?
The operating weight of the CaseIH Farmall 140A is approximately 9,061 lb.
What type of transmission does the CaseIH Farmall 140A have?
The CaseIH Farmall 140A uses a Power Shuttle transmission offering 8 forward gears.
What hydraulics does the CaseIH Farmall 140A have?
The CaseIH Farmall 140A uses an Open Center hydraulic system.
What three-point hitch category does the CaseIH Farmall 140A use?
The CaseIH Farmall 140A has a Category II three-point hitch.
What routine service does the CaseIH Farmall 140A need?
Regular maintenance for the CaseIH Farmall 140A includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
