Brand siblingUtilityPerformance profile
CaseIH Farmall 25A
The CaseIH Farmall 25A is a compact utility tractor designed for small farms and light work. It's powered by a Mitsubishi diesel engine with three cylinders and a turbocharger. The engine has 24.6 horsepower, which is on the lower end compared to other tractors. It's built to meet Tier IV emissions standards, making it environmentally friendly. This tractor has a sync shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. The Farmall 25A is small, measuring 117.2 inches long and 88.2 inches tall. It weighs 2,469 pounds, which is lighter than many other tractors. The tractor has a 540 RPM PTO and an open center hydraulic system. These features make it good for using various attachments and tools.
ManufacturerCaseIHPower24.6 hpEngine3-cylTranssync shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 25hp
- Operating Weight
- 2,469 lb
- Transmission
- sync shuttle
At a glance
How the Farmall 25A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
24.6 hp · 15th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 25A ranks at the 15th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 25A
The CaseIH Farmall 25A is a compact utility tractor designed for small farms and light work. It's powered by a Mitsubishi diesel engine with three cylinders and a turbocharger. The engine has 24.6 horsepower, which is on the lower end compared to other tractors. It's built to meet Tier IV emissions standards, making it environmentally friendly. This tractor has a sync shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. The Farmall 25A is small, measuring 117.2 inches long and 88.2 inches tall. It weighs 2,469 pounds, which is lighter than many other tractors. The tractor has a 540 RPM PTO and an open center hydraulic system. These features make it good for using various attachments and tools.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 25A |
| Category | Utility tractor |
| Operating weight | 2,469lb |
Engine
| Make | Mitsubishi |
|---|---|
| Power | 24.6hp |
| Cylinders | 3 |
| Displacement | 80.4ci |
| Bore | 3.07in |
| Stroke | 3.62in |
Transmission
| Type | sync shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | 540 (1.375) |
|---|
Dimensions
| Length | 117.2in |
|---|---|
| Height | 88.2in |
| Operating weight | 2,469lb |
Head to head
Farmall 25A vs. Utility median
How the CaseIH Farmall 25A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.6 hp | 55 hp | -55% | 15th |
| Engine Displacement | 80.4 ci | 183 ci | -56% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,469 lb | 5,303 lb | -53% | 16th |
| Length | 117 in | 137 in | -14% | 24th |
| Height | 88.2 in | 94.1 in | -6% | 38th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH DX25E | 25 hp | 1,318 lb | 2005–2007 | Compare → |
| CaseIH Farmall DX25E | 25 hp | 1,323 lb | — | Compare → |
| CaseIH 255 | 24 hp | 1,940 lb | — | Compare → |
| CaseIH Farmall DX24 | 24 hp | 1,502 lb | — | Compare → |
| CaseIH Farmall DX24E | 24 hp | 1,323 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models

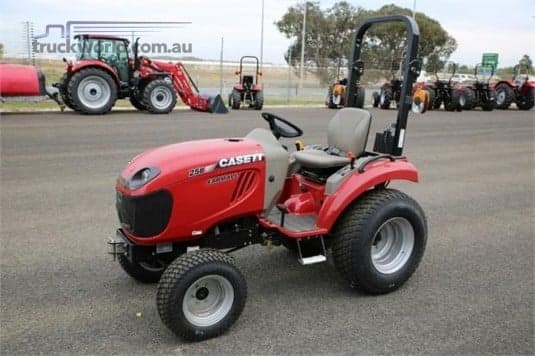

Gallery
CaseIH Farmall 25A photos
FAQ
Common questions
How much horsepower does the CaseIH Farmall 25A have?
The CaseIH Farmall 25A produces 24.6 hp from its 3-cylinder engine. Engine displacement is 80.4 ci.
How much does the CaseIH Farmall 25A weigh?
The CaseIH Farmall 25A weighs about 2,469 lb in operating condition.
What transmission is in the CaseIH Farmall 25A?
Transmission on the CaseIH Farmall 25A is sync shuttle, with 12 forward speeds.
What hydraulics does the CaseIH Farmall 25A have?
The CaseIH Farmall 25A uses an Open Center hydraulic system.
What maintenance does the CaseIH Farmall 25A require?
Like any tractor, the CaseIH Farmall 25A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
