UtilityPerformance profile
CaseIH 255
The CaseIH 255 is a compact utility tractor designed for small farms and light work. It has a 2WD drive system and a manual steering setup, making it easy to handle in tight spaces. The tractor comes with a constant mesh transmission that offers 9 forward gears and 3 reverse gears, giving the operator good control over speed and power. Under the hood, the CaseIH 255 features a Mitsubishi diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 24 hp at 2700 rpm. While the engine's power is on the lower side compared to other tractors, its high rpm rating allows for smooth operation. The tractor's compact size, measuring 111.8 inches long, 47 inches wide, and 54.9 inches tall, makes it suitable for working in small areas or between crop rows. With an operating weight of 1940 lb, it's lighter than many other tractors, which can help reduce soil compaction.
ManufacturerCaseIHPower24 hpEngine3-cylTransConstant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 24hp
- Operating Weight
- 1,940 lb
- Transmission
- Constant mesh
At a glance
How the 255 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
24 hp · 14th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 255 ranks at the 14th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH 255
The CaseIH 255 is a compact utility tractor designed for small farms and light work. It has a 2WD drive system and a manual steering setup, making it easy to handle in tight spaces. The tractor comes with a constant mesh transmission that offers 9 forward gears and 3 reverse gears, giving the operator good control over speed and power. Under the hood, the CaseIH 255 features a Mitsubishi diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 24 hp at 2700 rpm. While the engine's power is on the lower side compared to other tractors, its high rpm rating allows for smooth operation. The tractor's compact size, measuring 111.8 inches long, 47 inches wide, and 54.9 inches tall, makes it suitable for working in small areas or between crop rows. With an operating weight of 1940 lb, it's lighter than many other tractors, which can help reduce soil compaction.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 255 |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 1,940lb |
Engine
| Make | Mitsubishi |
|---|---|
| Power | 24hp |
| Cylinders | 3 |
| Displacement | 64.75ci |
| Bore | 2.99in |
| Stroke | 3.07in |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Hydraulics
| Type | Open |
|---|
Dimensions
| Length | 111.8in |
|---|---|
| Width | 47in |
| Height | 54.9in |
| Operating weight | 1,940lb |
Tires
| Rear | 9.5-24 |
|---|
Capacities
| Cooling system | 1.3gal |
|---|
Head to head
255 vs. Utility median
How the CaseIH 255 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24 hp | 55 hp | -56% | 14th |
| Engine Displacement | 64.8 ci | 183 ci | -65% | 8th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 1,940 lb | 5,303 lb | -63% | 11th |
| Length | 112 in | 137 in | -18% | 17th |
| Width | 47 in | 66 in | -29% | 13th |
| Height | 54.9 in | 94.1 in | -42% | 6th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall DX24 | 24 hp | 1,502 lb | — | Compare → |
| CaseIH Farmall DX24E | 24 hp | 1,323 lb | — | Compare → |
| CaseIH Farmall 25A | 24.6 hp | 2,469 lb | — | Compare → |
| CaseIH 1130 | 23 hp | 2,006 lb | 1991+ | Compare → |
| CaseIH DX25E | 25 hp | 1,318 lb | 2005–2007 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
| Bolens G242 | 24 hp | 1,672 lb | — | Compare → |
| Bolens G244 | 24 hp | 1,903 lb | — | Compare → |
| Branson 2400 | 24 hp | 1,958 lb | 2007+ | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

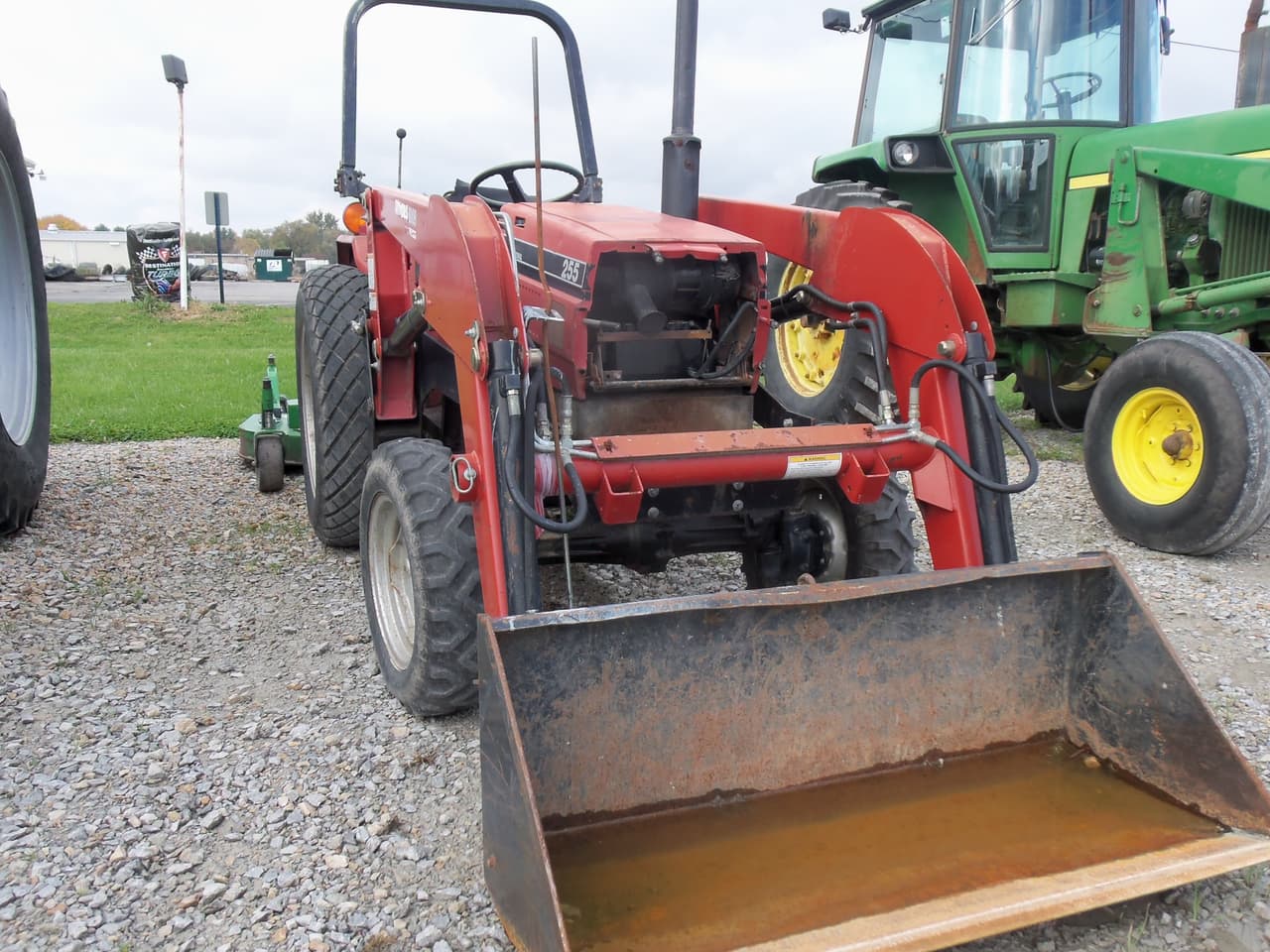

CaseIH 255 photos
FAQ
Common questions
How much horsepower does the CaseIH 255 have?
The CaseIH 255 produces 24 hp from its 3-cylinder engine. Engine displacement is 64.75 ci.
What are the factory tire sizes for the CaseIH 255?
The CaseIH 255 comes with 9.5-24 rear tires.
What three-point hitch category does the CaseIH 255 use?
The CaseIH 255 has a Category I three-point hitch.
How much does the CaseIH 255 weigh?
The CaseIH 255 weighs about 1,940 lb in operating condition.
What transmission is in the CaseIH 255?
Transmission on the CaseIH 255 is Constant mesh, with 9 forward speeds.
What hydraulics does the CaseIH 255 have?
The CaseIH 255 uses an Open hydraulic system.
What maintenance does the CaseIH 255 require?
Like any tractor, the CaseIH 255 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
