CaseIH Farmall 75A
The CaseIH Farmall 75A is a utility tractor designed for various farm tasks. It features a 2WD drive system and hydrostatic power steering, making it easy to maneuver. The tractor comes with an 8-speed partially synchronized transmission, giving farmers good control over their speed and power. Under the hood, the Farmall 75A boasts a FPT engine with 4 cylinders. This diesel engine is turbocharged and aftercooled, providing 74 hp at 2500 rpm. The engine displacement is 195 ci, which is about average for tractors in its class. It has a liquid cooling system with an 8.5 qts coolant capacity. The tractor is equipped with ag tires both front and rear, and it has a width of 78.4 inches. For attaching implements, it features a Category II/I rear hitch and an open center hydraulic system.
ManufacturerCaseIHPower74 hpEngine4-cylTrans8-speed partially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 74hp
- Transmission
- 8-speed partially synchronized
At a glance
How the Farmall 75A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
74 hp · 66th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 75A ranks at the 66th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 75A
The CaseIH Farmall 75A is a utility tractor designed for various farm tasks. It features a 2WD drive system and hydrostatic power steering, making it easy to maneuver. The tractor comes with an 8-speed partially synchronized transmission, giving farmers good control over their speed and power. Under the hood, the Farmall 75A boasts a FPT engine with 4 cylinders. This diesel engine is turbocharged and aftercooled, providing 74 hp at 2500 rpm. The engine displacement is 195 ci, which is about average for tractors in its class. It has a liquid cooling system with an 8.5 qts coolant capacity. The tractor is equipped with ag tires both front and rear, and it has a width of 78.4 inches. For attaching implements, it features a Category II/I rear hitch and an open center hydraulic system.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 75A |
| Category | Utility tractor |
| Type | 4x2 2WD |
Engine
| Make | FPT |
|---|---|
| Power | 74hp |
| Cylinders | 4 |
| Displacement | 195ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | 8-speed partially synchronized |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Width | 78.4in |
|---|
Capacities
| Cooling system | 2.13gal |
|---|
Head to head
Farmall 75A vs. Utility median
How the CaseIH Farmall 75A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 74 hp | 55 hp | +35% | 66th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Width | 78.4 in | 66 in | +19% | 79th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH JX80U | 74 hp | 7,855 lb | — | Compare → |
| CaseIH 685 | 73 hp | 5,659 lb | 1985–1990 | Compare → |
| CaseIH CS 75 | 75 hp | 6,834 lb | — | Compare → |
| CaseIH CX70 | 73 hp | 8,466 lb | — | Compare → |
| CaseIH JX1075C | 75 hp | 6,085 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
| Antonio Carraro SX 7800S | 71 hp | 4,773 lb | — | Compare → |
| Antonio Carraro TGF 7800S | 71 hp | 5,093 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

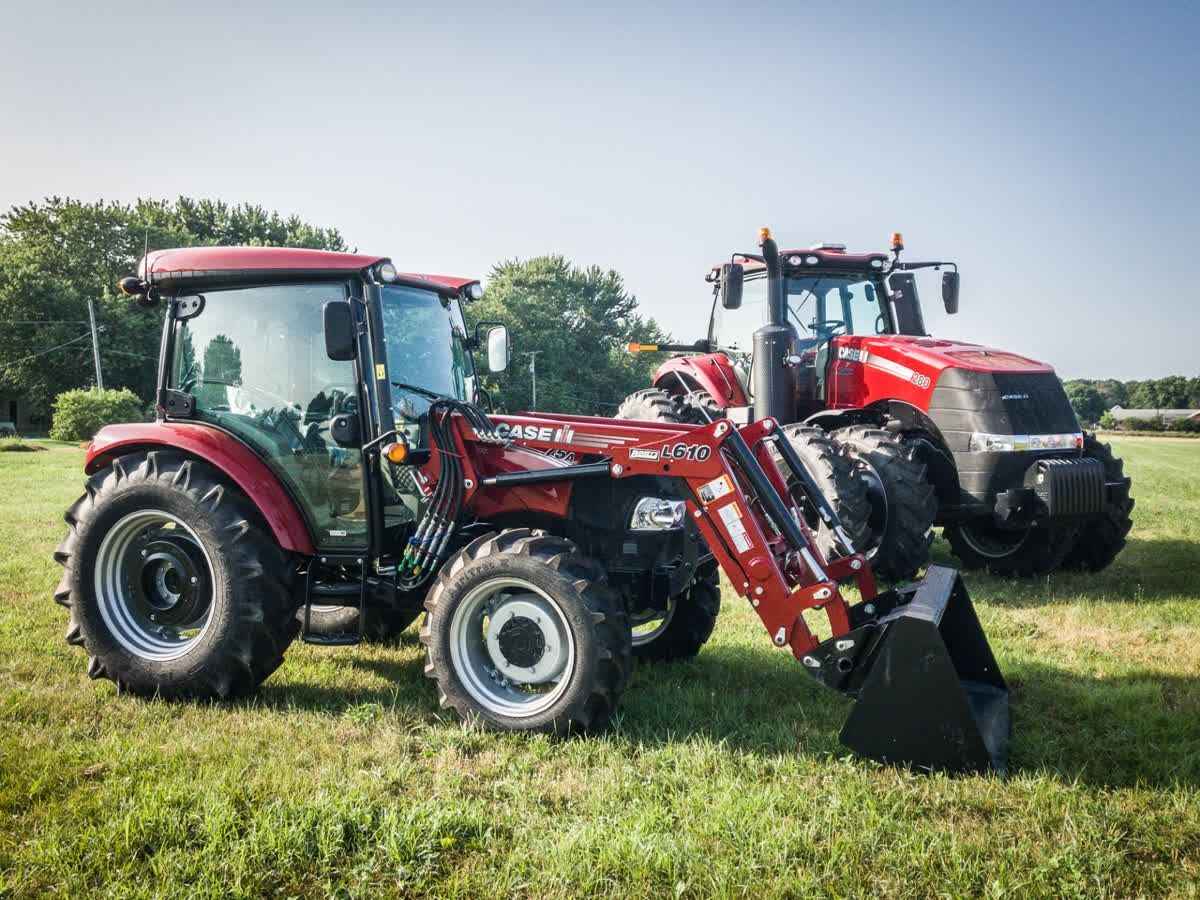

CaseIH Farmall 75A photos
FAQ
Common questions
How powerful is the CaseIH Farmall 75A?
The CaseIH Farmall 75A has an engine power output of 74 hp. It is powered by a 4-cylinder engine displacing 195 ci.
What hitch category is the CaseIH Farmall 75A?
The CaseIH Farmall 75A uses a Category II/I hitch.
What type of transmission does the CaseIH Farmall 75A have?
The CaseIH Farmall 75A uses an 8-speed partially synchronized transmission.
What type of hydraulic system does the CaseIH Farmall 75A use?
Hydraulics on the CaseIH Farmall 75A are Open center.
What routine service does the CaseIH Farmall 75A need?
Regular maintenance for the CaseIH Farmall 75A includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
