Allis Chalmers D19
The Allis Chalmers D19 is a row crop tractor made from 1961 to 1964. It has a 2WD drive system and power steering to help farmers work their fields easily. The D19 uses a gasoline engine with 6 cylinders that can produce 74.2 hp. This power is below average compared to other tractors, but it's enough for many farm tasks. This tractor has some useful features for farmers. It has a live PTO that runs at 540 rpm, which is good for using different tools. The D19 also has a three-point hitch at the back, making it easy to attach and use various farm equipment. The tractor weighs 6,650 lb, which is on the lighter side for tractors. This means it won't pack down the soil too much when working in fields. The D19 has an open operator station, so farmers can easily see and hear what's going on around them while working.
ManufacturerAllis ChalmersPower74.2 hp(55.3 kW)Class60–100 HP tractors →Engine6-cylinderTransmissionSliding gear
Key specifications
- Category
- Row Crop
- Engine power
- 74hp
- Operating weight
- 6,650 lb
- Transmission
- Sliding gear
Category comparison
D19 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
74.2 hp · 11th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The D19 ranks at the 11th percentile for engine power among recorded row crop tractors.
Overview
About the Allis Chalmers D19
The Allis Chalmers D19 is a row crop tractor made from 1961 to 1964. It has a 2WD drive system and power steering to help farmers work their fields easily. The D19 uses a gasoline engine with 6 cylinders that can produce 74.2 hp. This power is below average compared to other tractors, but it's enough for many farm tasks. This tractor has some useful features for farmers. It has a live PTO that runs at 540 rpm, which is good for using different tools. The D19 also has a three-point hitch at the back, making it easy to attach and use various farm equipment. The tractor weighs 6,650 lb, which is on the lighter side for tractors. This means it won't pack down the soil too much when working in fields. The D19 has an open operator station, so farmers can easily see and hear what's going on around them while working.
Full specifications
Recorded specifications
General
| Manufacturer | Allis Chalmers |
|---|---|
| Model | D19 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1961–1964 |
| Operating weight | 6,650lb(3,016 kg) |
Engine
| Make | Allis Chalmers |
|---|---|
| Model | Allis Chalmers 4.3L 6-cyl gasoline |
| Power | 74.2hp(55.33 kW) |
| Cylinders | 6 |
| Displacement | 262ci(4.29 L) |
| Bore | 3.56in(90.5 mm) |
| Stroke | 4.38in(111.1 mm) |
Transmission
| Type | Sliding gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power assist |
| Brakes | Differential mechanical band and dry disc |
| Cab | Open operator station |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 154in(3,912 mm) |
|---|---|
| Width | 83.6in(2,123 mm) |
| Height | 89in(2,261 mm) |
| Operating weight | 6,650lb(3,016 kg) |
Capacities
| Cooling system | 3.75gal(14.2 L) |
|---|
Closest alternatives
D19 compared with the nearest models by horsepower
Among row crop tractors, the Fendt Farmer 108LS and the Fendt Farmer 108S are closest to the Allis Chalmers D19 in rated horsepower. The Fendt Farmer 108LS matches it on rated power and weighs 630 lb more, at 99 lb per horsepower against 90 lb. The Fendt Farmer 108S matches it on rated power and weighs 320 lb more. Of the 3 models, the D19 has the lowest weight per horsepower at 90 lb per hp.
| Spec | Allis Chalmers D19 | Fendt Farmer 108LS | Fendt Farmer 108S |
|---|---|---|---|
| Engine power | 74.2 hp55.3 kW | 73.8 hp55 kW | 73.8 hp55 kW |
| Operating weight | 6,650 lb3,016 kg | 7,275 lb3,300 kg | 6,967 lb3,160 kg |
| Weight per hp | 90 lb/hp55 kg/kW | 99 lb/hp60 kg/kW | 94 lb/hp57 kg/kW |
| Displacement | 262 ci4.29 L | 253.5 ci4.15 L | 253.5 ci4.15 L |
| Cylinders | 6 | 4 | 4 |
| Transmission | Sliding gear | Synchronized/Creeper | Synchronized |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the D19
PTO power
About 62 to 67 PTO hp
Estimated from the 74.2 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 74.2 hp tractor can run
Maximum size is about a 9 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
104 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
74.2 hp is 55.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
D19 vs. Row Crop median
Allis Chalmers D19 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 74.2 hp | 138 hp | -46% | 11th |
| Engine Displacement | 262 ci | 391 ci | -33% | 19th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 6,650 lb | 12,307 lb | -46% | 14th |
| Length | 154 in | 180 in | -14% | 19th |
| Width | 83.6 in | 91.2 in | -8% | 33rd |
| Height | 89 in | 114 in | -22% | 18th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Allis Chalmers models
Other manufacturers
Models with similar horsepower
Gallery

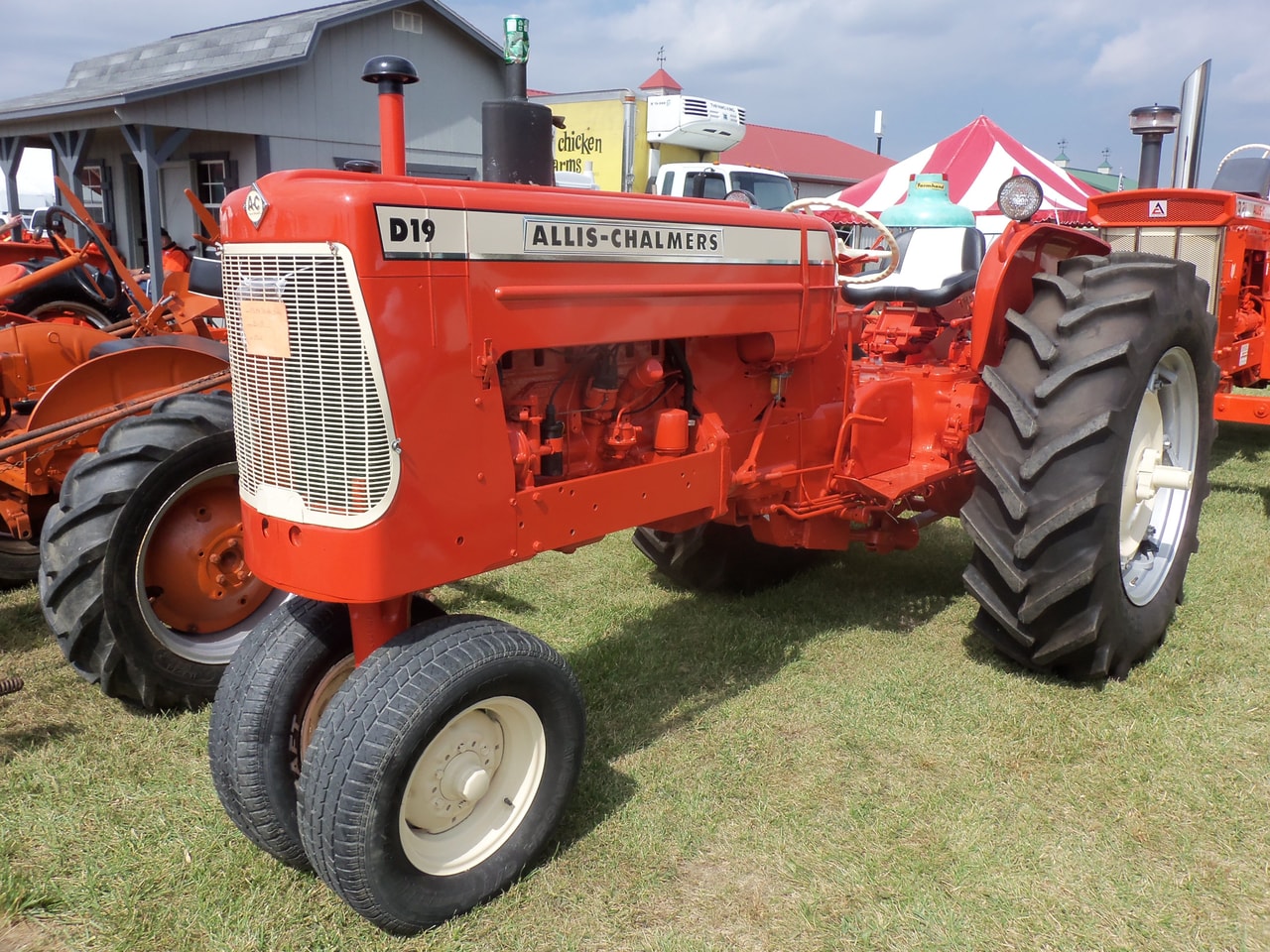

Allis Chalmers D19 photos
FAQ
Frequently asked questions
When was the Allis Chalmers D19 in production?
Allis Chalmers D19 production started in 1961 and ended in 1964.
What transmission is in the Allis Chalmers D19?
Transmission on the Allis Chalmers D19 is Sliding gear, with 8 forward speeds.
What hydraulics does the Allis Chalmers D19 have?
The Allis Chalmers D19 uses an Open center hydraulic system.
What three-point hitch category does the Allis Chalmers D19 use?
The Allis Chalmers D19 has a Category II three-point hitch.
How much horsepower does the Allis Chalmers D19 have?
The Allis Chalmers D19 produces 74.2 hp from its 6-cylinder engine. Engine displacement is 262 ci.
How much does the Allis Chalmers D19 weigh?
The Allis Chalmers D19 weighs about 6,650 lb in operating condition.
What maintenance does the Allis Chalmers D19 require?
The Allis Chalmers D19 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
