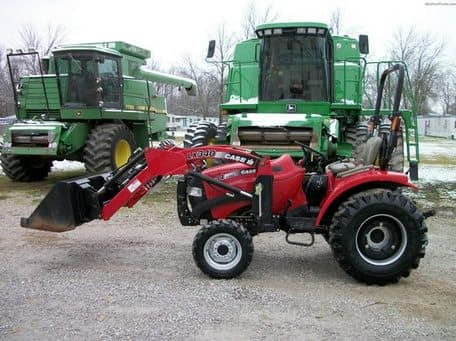

CaseIH Farmall DX34
The CaseIH Farmall DX34 is a compact utility tractor built for versatility and efficiency. This 4WD tractor features a power steering system and a hydrostatic transmission, allowing for smooth operation and easy speed changes. The Farmall DX34 is powered by a Shibaura N843L engine, which is a 3-cylinder, liquid-cooled diesel engine with average displacement for its class. With 35 horsepower, this tractor offers average power output for its size. It measures 112.4 inches long, 54.3 inches wide, and 87.8 inches tall, making it suitable for various farm tasks and tight spaces. The Farmall DX34 weighs 2,526 pounds, which is on the lighter side for utility tractors. It comes equipped with a Category I three-point hitch at the rear and an open center hydraulic system. The tractor's 12-volt electrical system and electric starter ensure reliable operation in various conditions.
ManufacturerCaseIHPower35 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Utility
- Engine Power Output
- 35hp
- Operating Weight
- 2,526 lb
- Transmission
- Hydrostatic
At a glance
How the Farmall DX34 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
35 hp · 28th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall DX34 ranks at the 28th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall DX34
The CaseIH Farmall DX34 is a compact utility tractor built for versatility and efficiency. This 4WD tractor features a power steering system and a hydrostatic transmission, allowing for smooth operation and easy speed changes. The Farmall DX34 is powered by a Shibaura N843L engine, which is a 3-cylinder, liquid-cooled diesel engine with average displacement for its class. With 35 horsepower, this tractor offers average power output for its size. It measures 112.4 inches long, 54.3 inches wide, and 87.8 inches tall, making it suitable for various farm tasks and tight spaces. The Farmall DX34 weighs 2,526 pounds, which is on the lighter side for utility tractors. It comes equipped with a Category I three-point hitch at the rear and an open center hydraulic system. The tractor's 12-volt electrical system and electric starter ensure reliable operation in various conditions.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall DX34 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,526lb |
Engine
| Make | Shibaura |
|---|---|
| Model | N843L |
| Power | 35hp |
| Cylinders | 3 |
| Displacement | 101.4ci |
| Bore | 3.31in |
| Stroke | 3.94in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 112.4in |
|---|---|
| Width | 54.3in |
| Height | 87.8in |
| Operating weight | 2,526lb |
Head to head
Farmall DX34 vs. Utility median
How the CaseIH Farmall DX34 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 55 hp | -36% | 28th |
| Engine Displacement | 101 ci | 183 ci | -45% | 24th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 2,526 lb | 5,303 lb | -52% | 17th |
| Length | 112 in | 137 in | -18% | 18th |
| Width | 54.3 in | 66 in | -18% | 25th |
| Height | 87.8 in | 94.1 in | -7% | 37th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH D35 | 35 hp | 2,947 lb | — | Compare → |
| CaseIH DX35 | 35 hp | 3,252 lb | — | Compare → |
| CaseIH Farmall 35 | 35 hp | 2,526 lb | — | Compare → |
| CaseIH Farmall 35A Series II | 35 hp | 3,067 lb | — | Compare → |
| CaseIH Farmall 35C | 36.2 hp | 3,218 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH Farmall DX34 photos
FAQ
Common questions
How much horsepower does the CaseIH Farmall DX34 have?
The CaseIH Farmall DX34 produces 35 hp from its 3-cylinder engine. Engine displacement is 101.4 ci.
What hitch category is the CaseIH Farmall DX34?
The CaseIH Farmall DX34 uses a Category I hitch.
How much does the CaseIH Farmall DX34 weigh?
The CaseIH Farmall DX34 weighs about 2,526 lb in operating condition.
What transmission is in the CaseIH Farmall DX34?
Transmission on the CaseIH Farmall DX34 is Hydrostatic.
What type of hydraulic system does the CaseIH Farmall DX34 use?
Hydraulics on the CaseIH Farmall DX34 are Open center.
What maintenance does the CaseIH Farmall DX34 require?
Like any tractor, the CaseIH Farmall DX34 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
