UtilityPerformance profile
CaseIH Farmall DX55
The CaseIH Farmall DX55 is a utility tractor built from 2004 to 2008. It's a 2WD model with a 4-cylinder diesel engine made by Shibaura. The engine is turbocharged and liquid-cooled, producing 55 hp at 2700 rpm. This power output is average for tractors in its class, while its engine speed is very high compared to similar models. The Farmall DX55 has a synchronized shuttle transmission with 12 forward and 12 reverse gears. It features a three-point hitch at the rear, capable of lifting 3460 lb, which is above average for its size. The tractor has a rear PTO that runs at 540 rpm. Weighing 4860 lb, it's about average in terms of operating weight for utility tractors. The tractor comes with a two-post foldable ROPS for operator safety and uses hydrostatic power steering for easy control. It also has independent mechanical wet disc brakes and runs on agricultural tires both front and rear.
ManufacturerCaseIHPower55 hpEngine4-cylTransSynchronized shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 55hp
- Operating Weight
- 4,860 lb
- Transmission
- Synchronized shuttle
At a glance
How the Farmall DX55 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
55 hp · 50th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall DX55 ranks at the 50th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall DX55
The CaseIH Farmall DX55 is a utility tractor built from 2004 to 2008. It's a 2WD model with a 4-cylinder diesel engine made by Shibaura. The engine is turbocharged and liquid-cooled, producing 55 hp at 2700 rpm. This power output is average for tractors in its class, while its engine speed is very high compared to similar models. The Farmall DX55 has a synchronized shuttle transmission with 12 forward and 12 reverse gears. It features a three-point hitch at the rear, capable of lifting 3460 lb, which is above average for its size. The tractor has a rear PTO that runs at 540 rpm. Weighing 4860 lb, it's about average in terms of operating weight for utility tractors. The tractor comes with a two-post foldable ROPS for operator safety and uses hydrostatic power steering for easy control. It also has independent mechanical wet disc brakes and runs on agricultural tires both front and rear.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall DX55 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2004–2008 |
| Operating weight | 4,860lb |
Engine
| Make | Shibaura |
|---|---|
| Power | 55hp |
| Cylinders | 4 |
| Displacement | 135.2ci |
| Bore | 3.31in |
| Stroke | 3.94in |
Transmission
| Type | Synchronized shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Independent mechanical wet disc |
| Cab | Two-post foldable ROPS |
Power take-off
| Rear PTO | Rear |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 4,860lb |
|---|
Head to head
Farmall DX55 vs. Utility median
How the CaseIH Farmall DX55 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 55 hp | 55 hp | at median | 50th |
| Engine Displacement | 135 ci | 183 ci | -26% | 33rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 4,860 lb | 5,303 lb | -8% | 46th |
| 3-Point Hitch Capacity | 3,460 lb | 3,197 lb | +8% | 58th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall 55C Series II | 55 hp | 3,770 lb | — | Compare → |
| CaseIH JX60 | 55 hp | 5,152 lb | — | Compare → |
| CaseIH PJ55 | 55 hp | 5,545 lb | — | Compare → |
| CaseIH Farmall 55A | 54 hp | 5,622 lb | — | Compare → |
| CaseIH Farmall 55C CVT | 54 hp | 4,190 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Apollo 554 | 55 hp | 6,239 lb | — | Compare → |
| Ascot Universal 550 | 55 hp | 4,600 lb | — | Compare → |
| Barreiros 5000 | 55 hp | 5,030 lb | — | Compare → |
| Barreiros 5000 VL | 55 hp | 4,080 lb | — | Compare → |
| Belarus 405 | 55 hp | 7,056 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models

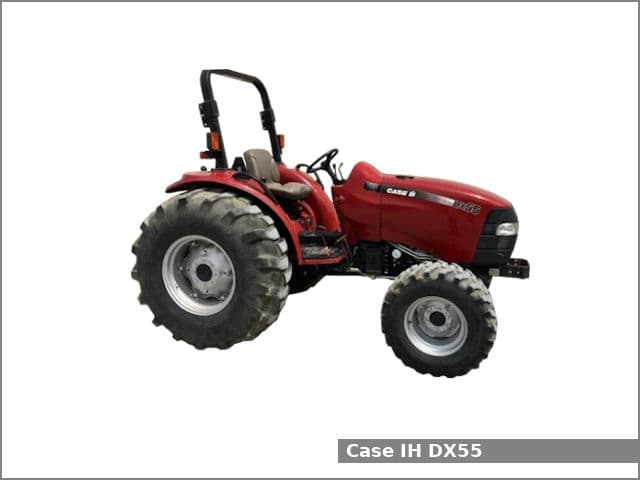

Gallery
CaseIH Farmall DX55 photos
FAQ
Common questions
When was the CaseIH Farmall DX55 in production?
CaseIH Farmall DX55 production started in 2004 and ended in 2008.
How much horsepower does the CaseIH Farmall DX55 have?
The CaseIH Farmall DX55 produces 55 hp from its 4-cylinder engine. Engine displacement is 135.2 ci.
How much does the CaseIH Farmall DX55 weigh?
The CaseIH Farmall DX55 weighs about 4,860 lb in operating condition.
What transmission is in the CaseIH Farmall DX55?
Transmission on the CaseIH Farmall DX55 is Synchronized shuttle, with 12 forward speeds.
What three-point hitch category does the CaseIH Farmall DX55 use?
The CaseIH Farmall DX55 has a Category II/I three-point hitch rated to lift 3,460 lb.
What maintenance does the CaseIH Farmall DX55 require?
Like any tractor, the CaseIH Farmall DX55 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
