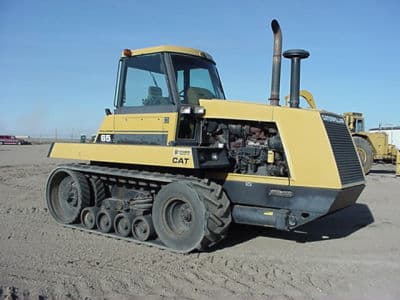

Challenger 65

The Challenger 65 is a powerful crawler tractor built for tough agricultural work. It's big and strong, with a Caterpillar engine that gives it 270 horsepower. This tractor is designed to handle heavy jobs on farms and fields. The Challenger 65 has a full power shift transmission with 10 forward gears and 2 reverse gears, making it easy to change speeds for different tasks. It uses tracks instead of wheels, which helps it move well on soft or uneven ground. The tractor is quite heavy, weighing 33,200 pounds, which gives it good stability. It has a closed center hydraulic system and a Category III hitch at the back for attaching various farm tools. The engine is turbocharged and liquid-cooled, with 6 cylinders and above-average displacement, showing it's built for hard work and long days in the field.

ManufacturerChallengerPower270 hp(201.3 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionFull Power Shift
Challenger 65

Key specifications

Category
Crawler
Engine power
270hp
Operating weight
33,200 lb
Transmission
Full Power Shift
Compare this model

Category comparison

65 compared with its category

vs. Crawler median

Distribution

Engine Power (hp)

All recorded Crawler tractors

270 hp · 59th

This model

18
Median 200 hp
508
This modelCrawler tractorsMediann = 142

The 65 ranks at the 59th percentile for engine power among recorded crawler tractors.

Overview

About the Challenger 65

The Challenger 65 is a powerful crawler tractor built for tough agricultural work. It's big and strong, with a Caterpillar engine that gives it 270 horsepower. This tractor is designed to handle heavy jobs on farms and fields. The Challenger 65 has a full power shift transmission with 10 forward gears and 2 reverse gears, making it easy to change speeds for different tasks. It uses tracks instead of wheels, which helps it move well on soft or uneven ground. The tractor is quite heavy, weighing 33,200 pounds, which gives it good stability. It has a closed center hydraulic system and a Category III hitch at the back for attaching various farm tools. The engine is turbocharged and liquid-cooled, with 6 cylinders and above-average displacement, showing it's built for hard work and long days in the field.

Full specifications

Recorded specifications

General

ManufacturerChallenger
Model65
CategoryCrawler tractor
TypeCrawler
Operating weight33,200lb(15,060 kg)

Engine

MakeCaterpillar
Model3306 DITA
Power270hp(201.3 kW)
Cylinders6
Displacement638ci(10.45 L)
Bore4.75in(120.6 mm)
Stroke6in(152.4 mm)

Transmission

TypeFull Power Shift
Forward gears10
Reverse gears2

Chassis & drive

ChassisCrawler
SteeringHydrostatic differential steering

Hydraulics

TypeClosed Center

Dimensions

Length225in(5,715 mm)
Width113in(2,870 mm)
Height127in(3,226 mm)
Operating weight33,200lb(15,060 kg)

Capacities

Cooling system11gal(41.64 L)

Closest alternatives

65 compared with the nearest models by horsepower

The closest crawler models to the Challenger 65 by rated horsepower are the New Holland T80 and the Fendt 924. The New Holland T80 matches it on rated power and weighs 1,370 lb more. The Fendt 924 matches it on rated power and weighs 10,980 lb less, carrying 82 lb per horsepower against 123 lb.

Challenger 65 compared with New Holland T80 and Fendt 924
SpecChallenger 65New Holland T80Fendt 924
Engine power270 hp201.3 kW270 hp201.3 kW270 hp201.3 kW
Operating weight33,200 lb15,059 kg34,569 lb15,680 kg22,223 lb10,080 kg
Weight per hp123 lb/hp75 kg/kW128 lb/hp78 kg/kW82 lb/hp50 kg/kW
Displacement638 ci10.45 L-435.9 ci7.14 L
Cylinders6-6
TransmissionFull Power ShiftPowershiftstepless Vario transmission

Calculators

Calculators for the 65

Parts and manuals

Parts and manuals for the Challenger 65

Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.

Filters

Manuals

Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure

Category medians

65 vs. Crawler median

Challenger 65 compared with other Crawler tractors

SpecThis modelCrawler medianDifferencePercentile
Engine Power270 hp200 hp+35%59th
Engine Displacement638 ci468 ci+36%70th
Cylinders66at median50th
Forward Gears1010at median50th
Operating Weight33,200 lb23,320 lb+42%68th
Length225 in146 in+54%81st
Width113 in79.5 in+42%82nd
Height127 in90.6 in+40%77th

Medians and percentiles are calculated from the crawler tractors in the database that have a recorded value for each specification (sample size 134–192 models).

Same manufacturer

Other Challenger models

All Challenger models →

Other manufacturers

Models with similar horsepower

FAQ

Frequently asked questions

What is the engine power output of the Challenger 65?

Rated engine output for the Challenger 65 is 270 hp, delivered by a 6-cylinder engine. The engine displaces 638 ci.

Which transmission does the Challenger 65 use?

The Challenger 65 is equipped with a Full Power Shift transmission with 10 forward gears.

What type of hydraulic system does the Challenger 65 use?

Hydraulics on the Challenger 65 are Closed Center.

What is the operating weight of the Challenger 65?

The Challenger 65 has an operating weight of about 33,200 lb.

How do I maintain a Challenger 65?

Routine service for the Challenger 65 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
