Challenger MT565B MFWD
The Challenger MT565B MFWD is a powerful 4x4 tractor built for tough farm work. It has a strong C6.6 ACERT engine with 6 cylinders and 402.8 ci displacement. This engine is turbocharged and aftercooled, giving it extra power when needed. The tractor uses an Auto Power transmission, making it easy to drive in different conditions. This Challenger model is big and sturdy, measuring 81.6 inches wide and 123.6 inches tall. It weighs 16,100 lb, which helps it handle heavy tasks. The tractor has a three-point hitch at the back that can lift up to 14,283.8 lb. It also has 4 remote control valves and a relief valve set at 2900 psi. These features make the MT565B MFWD great for attaching and using various farm tools. With its size and power, this tractor is well-suited for large farms and demanding agricultural work.
ManufacturerChallengerEngine6-cylTransAuto Power
Quick specs
- Category
- Agricultural
- Operating Weight
- 16,100 lb
- Transmission
- Auto Power
Overview
About the Challenger MT565B MFWD
The Challenger MT565B MFWD is a powerful 4x4 tractor built for tough farm work. It has a strong C6.6 ACERT engine with 6 cylinders and 402.8 ci displacement. This engine is turbocharged and aftercooled, giving it extra power when needed. The tractor uses an Auto Power transmission, making it easy to drive in different conditions. This Challenger model is big and sturdy, measuring 81.6 inches wide and 123.6 inches tall. It weighs 16,100 lb, which helps it handle heavy tasks. The tractor has a three-point hitch at the back that can lift up to 14,283.8 lb. It also has 4 remote control valves and a relief valve set at 2900 psi. These features make the MT565B MFWD great for attaching and using various farm tools. With its size and power, this tractor is well-suited for large farms and demanding agricultural work.
Full specifications
Every recorded spec
General
| Manufacturer | Challenger |
|---|---|
| Model | MT565B MFWD |
| Category | Agricultural tractor |
| Type | 4x4 |
| Operating weight | 16,100lb |
Engine
| Model | C6.6 ACERT |
|---|---|
| Cylinders | 6 |
| Displacement | 402.8ci |
Transmission
| Type | Auto Power |
|---|
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | MFWD |
Dimensions
| Width | 81.6in |
|---|---|
| Height | 123.6in |
| Operating weight | 16,100lb |
Capacities
| Cooling system | 6.8gal |
|---|
Head to head
MT565B MFWD vs. Agricultural median
How the Challenger MT565B MFWD compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 403 ci | 336 ci | +20% | 68th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Operating Weight | 16,100 lb | 10,914 lb | +48% | 74th |
| Width | 81.6 in | 79.5 in | +3% | 54th |
| Height | 124 in | 111 in | +12% | 82nd |
| 3-Point Hitch Capacity | 14,284 lb | 12,126 lb | +18% | 59th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 93–1,130 models).
Compare to tractors with similar specs
Commonly compared Challenger tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger 1038 | 396 hp | 31,615 lb | — | Compare → |
| Challenger 1046 | 446 hp | 30,865 lb | — | Compare → |
| Challenger 55 | — | 26,000 lb | — | Compare → |
| Challenger 65 | 270 hp | 33,200 lb | — | Compare → |
| Challenger 75E | 340 hp | 34,800 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Challenger siblings
Explore
Similar-spec models
Gallery

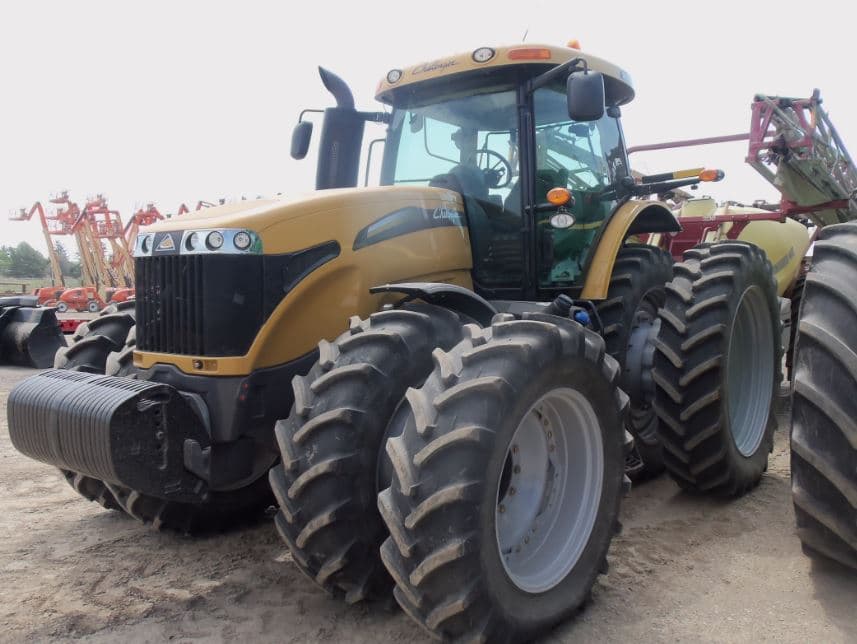

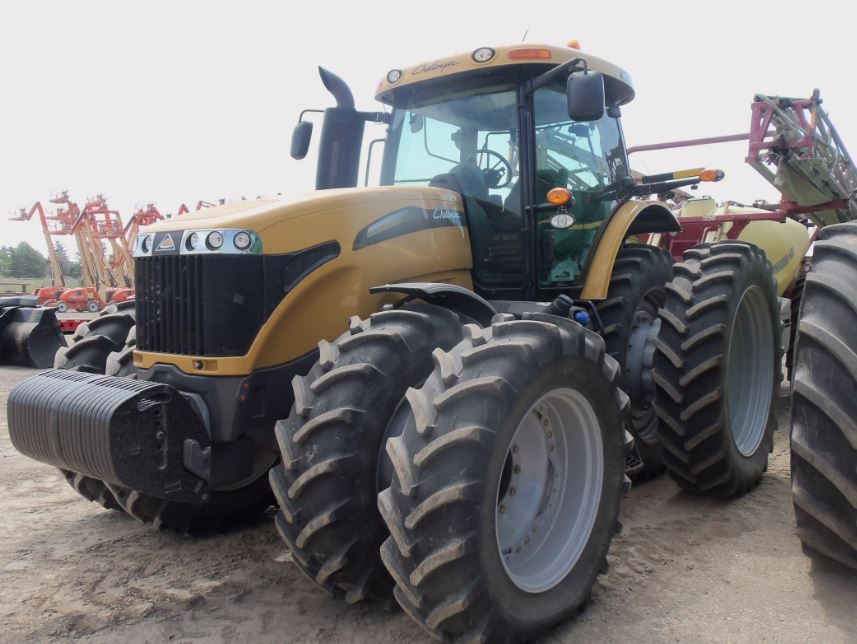

Challenger MT565B MFWD photos
FAQ
Common questions
What engine configuration does the Challenger MT565B MFWD use?
The Challenger MT565B MFWD is equipped with a 6-cylinder engine displacing 402.8 ci.
What is the working weight of the Challenger MT565B MFWD?
The operating weight of the Challenger MT565B MFWD is approximately 16,100 lb.
What type of transmission does the Challenger MT565B MFWD have?
The Challenger MT565B MFWD uses an Auto Power transmission.
What routine service does the Challenger MT565B MFWD need?
Regular maintenance for the Challenger MT565B MFWD includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
