Claas Ares 546
The Claas Ares 546 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong DPS engine with 4 cylinders and a turbo, giving it 96 horsepower. This tractor can handle big jobs with ease. The Ares 546 has a special 32-speed transmission, which means it can go forward and backward in 32 different speeds. This helps farmers work at just the right pace for any task. The tractor is big and sturdy, measuring 153.5 inches long and 109.8 inches tall. It weighs 11,179 pounds, making it stable for heavy-duty work. The tractor has large agricultural tires, with 13.6-inch wide front tires and 16.9-inch wide rear tires, perfect for gripping farm fields.

Key specifications
- Category
- Utility
- Engine power
- 96hp
- Operating weight
- 11,179 lb
- Transmission
- 32-speed
Category comparison
Ares 546 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The Ares 546 ranks at the 81st percentile for engine power among recorded utility tractors.
Overview
About the Claas Ares 546
The Claas Ares 546 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong DPS engine with 4 cylinders and a turbo, giving it 96 horsepower. This tractor can handle big jobs with ease. The Ares 546 has a special 32-speed transmission, which means it can go forward and backward in 32 different speeds. This helps farmers work at just the right pace for any task. The tractor is big and sturdy, measuring 153.5 inches long and 109.8 inches tall. It weighs 11,179 pounds, making it stable for heavy-duty work. The tractor has large agricultural tires, with 13.6-inch wide front tires and 16.9-inch wide rear tires, perfect for gripping farm fields.
Full specifications
Recorded specifications
General
| Manufacturer | Claas |
|---|---|
| Model | Ares 546 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 11,179lb(5,071 kg) |
Engine
| Make | DPS |
|---|---|
| Model | 4045 TRT |
| Power | 96hp(71.59 kW) |
| Cylinders | 4 |
| Displacement | 276.4ci(4.53 L) |
| Bore | 4.19in(106.5 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | 32-speed |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 153.5in(3,899 mm) |
|---|---|
| Height | 109.8in(2,789 mm) |
| Operating weight | 11,179lb(5,071 kg) |
Closest alternatives
Ares 546 compared with the nearest models by horsepower
Among utility tractors, the Fendt Farmer 308 and the Renault 106-14 SP are closest to the Claas Ares 546 in rated horsepower. The Fendt Farmer 308 matches it on rated power and weighs 2,010 lb less, carrying 96 lb per horsepower against 116 lb. The Renault 106-14 SP matches it on rated power and weighs 70 lb less. Of the 3 models, the Ares 546 has the highest weight per horsepower at 116 lb per hp.
| Spec | Claas Ares 546 | Fendt Farmer 308 | Renault 106-14 SP |
|---|---|---|---|
| Engine power | 96 hp71.6 kW | 96 hp71.6 kW | 96 hp71.6 kW |
| Operating weight | 11,179 lb5,071 kg | 9,172 lb4,160 kg | 11,113 lb5,041 kg |
| Weight per hp | 116 lb/hp71 kg/kW | 96 lb/hp58 kg/kW | 116 lb/hp70 kg/kW |
| Displacement | 276.4 ci4.53 L | 253.5 ci4.15 L | 345.1 ci5.66 L |
| Cylinders | 4 | 4 | 6 |
| Transmission | 32-speed | Three-speed power shift | Manual |
| Drive | 4WD | - | 4WD |
Calculators
Calculators for the Ares 546
PTO power
About 80 to 86 PTO hp
Estimated from the 96 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 96 hp tractor can run
Maximum size is about a 11.5 ft rotary cutter or a 9.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
135 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
96 hp is 71.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Claas Ares 546
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the DPS 4045 TRTAmazon
Fits the DPS 4045 TRT 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the DPS 4045 TRTAmazon
Fits the DPS 4045 TRT 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the DPS 4045 TRTAmazon
Fits the DPS 4045 TRT 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the DPS 4045 TRTAmazon
Fits the DPS 4045 TRT 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Claas Ares 546 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Claas Ares 546 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Claas Ares 546 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Ares 546 vs. Utility median
Claas Ares 546 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 96 hp | 55 hp | +75% | 81st |
| Engine Displacement | 276 ci | 183 ci | +51% | 82nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 32 | 12 | +167% | 97th |
| Operating Weight | 11,179 lb | 5,303 lb | +111% | 89th |
| Length | 154 in | 137 in | +12% | 70th |
| Height | 110 in | 94.1 in | +17% | 87th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Claas models
Other manufacturers
Models with similar horsepower
Gallery

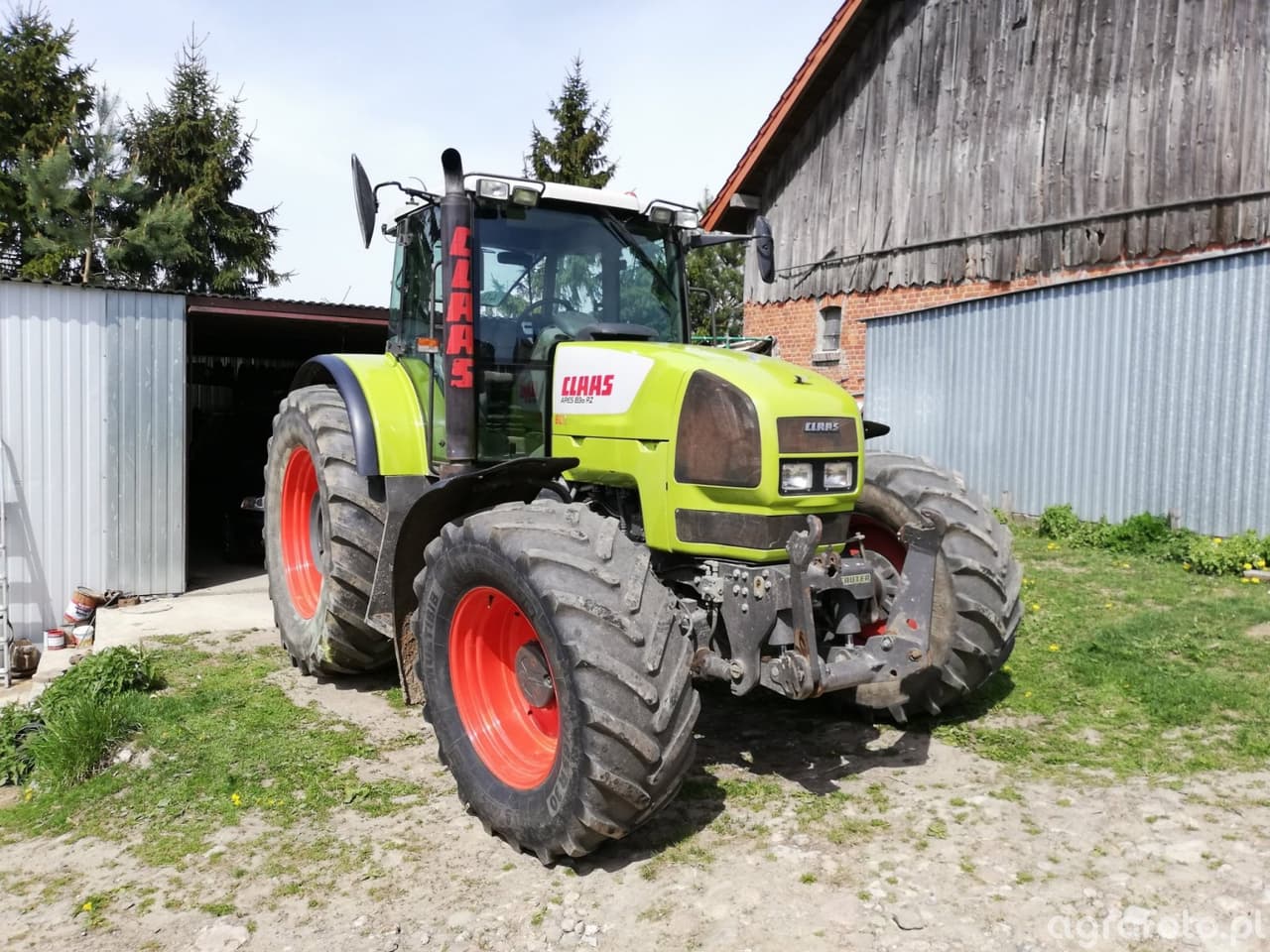

Claas Ares 546 photos



FAQ
Frequently asked questions
How much horsepower does the Claas Ares 546 have?
The Claas Ares 546 produces 96 hp from its 4-cylinder engine. Engine displacement is 276.4 ci.
How much does the Claas Ares 546 weigh?
The Claas Ares 546 weighs about 11,179 lb in operating condition.
What transmission is in the Claas Ares 546?
Transmission on the Claas Ares 546 is 32-speed, with 32 forward speeds.
What maintenance does the Claas Ares 546 require?
The Claas Ares 546 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
