Claas Arion 540
The Claas Arion 540 is a powerful row crop tractor built for tough farm work. It has a 4WD drive system and a 4x4 MFWD chassis, making it great for handling various field tasks. The tractor comes with a partial power shift transmission that has 24 forward and 24 reverse gears, giving farmers lots of options for different jobs. Under the hood, the Arion 540 has a DPS diesel engine with 4 cylinders and 16 valves. It's turbocharged and intercooled, which helps it run better. The engine puts out 135 hp at 2200 rpm, which is about average for tractors in its class. It has a displacement of 276.1 ci, which is on the lower end compared to other tractors. The tractor weighs 12,060 lb and can lift an impressive 19,400 lb with its hitch, which is very high for its size. It has big ag tires, with 14.9X28 in the front and 18.4X38 in the back. The Arion 540 also comes with a comfortable cab for the operator and an open center hydraulic system.

Key specifications
- Category
- Row Crop
- Engine power
- 135hp
- Operating weight
- 12,060 lb
- Transmission
- Partial power shift with power shuttle
Category comparison
Arion 540 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The Arion 540 ranks at the 49th percentile for engine power among recorded row crop tractors.
Overview
About the Claas Arion 540
The Claas Arion 540 is a powerful row crop tractor built for tough farm work. It has a 4WD drive system and a 4x4 MFWD chassis, making it great for handling various field tasks. The tractor comes with a partial power shift transmission that has 24 forward and 24 reverse gears, giving farmers lots of options for different jobs. Under the hood, the Arion 540 has a DPS diesel engine with 4 cylinders and 16 valves. It's turbocharged and intercooled, which helps it run better. The engine puts out 135 hp at 2200 rpm, which is about average for tractors in its class. It has a displacement of 276.1 ci, which is on the lower end compared to other tractors. The tractor weighs 12,060 lb and can lift an impressive 19,400 lb with its hitch, which is very high for its size. It has big ag tires, with 14.9X28 in the front and 18.4X38 in the back. The Arion 540 also comes with a comfortable cab for the operator and an open center hydraulic system.
Full specifications
Recorded specifications
General
| Manufacturer | Claas |
|---|---|
| Model | Arion 540 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 12,060lb(5,470 kg) |
Engine
| Make | DPS |
|---|---|
| Power | 135hp(100.7 kW) |
| Cylinders | 4 |
| Displacement | 276.1ci(4.52 L) |
Transmission
| Type | Partial power shift with power shuttle |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Cab | Cab |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 192.5in(4,890 mm) |
|---|---|
| Height | 116.6in(2,962 mm) |
| Operating weight | 12,060lb(5,470 kg) |
Tires
| Front | 14.9X28ConvertShop size |
|---|---|
| Rear | 18.4X38ConvertShop size |
Closest alternatives
Arion 540 compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the Arion 540 are the Claas Arion 620 and the Kubota M135X. The Claas Arion 620 matches it on rated power and weighs 1,060 lb more, at 97 lb per horsepower against 89 lb. The Kubota M135X matches it on rated power and weighs 1,580 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft.
| Spec | Claas Arion 540 | Claas Arion 620 | Kubota M135X |
|---|---|---|---|
| Engine power | 135 hp100.7 kW | 135 hp100.7 kW | 135 hp100.7 kW |
| Operating weight | 12,060 lb5,470 kg | 13,120 lb5,951 kg | 10,480 lb4,754 kg |
| Weight per hp | 89 lb/hp54 kg/kW | 97 lb/hp59 kg/kW | 78 lb/hp47 kg/kW |
| Displacement | 276.1 ci4.52 L | 414.2 ci6.79 L | 374 ci6.13 L |
| Cylinders | 4 | 6 | 4 |
| Transmission | Partial power shift with power shuttle | Partial power shift with power shuttle | Selective gear fixed ratio with partial (8) range operator-controlled power shift |
| Drive | 4WD | 4WD | MFWD 4WD |
Calculators
Calculators for the Arion 540
PTO power
About 112 to 122 PTO hp
Estimated from the 135 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 135 hp tractor can run
Maximum size is about a 16 ft rotary cutter or a 13.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
104 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
135 hp is 100.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 18.4X38 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the Claas Arion 540
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the DPSAmazon
Fits the DPS 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the DPSAmazon
Fits the DPS 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the DPSAmazon
Fits the DPS 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the DPSAmazon
Fits the DPS 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Claas Arion 540 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Claas Arion 540 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Claas Arion 540 service manualAmazon
Shop and repair manuals for this model.
Tires
- 14.9X28 tiresAmazon
Listed front tire size for the Claas Arion 540.
- 18.4X38 tiresAmazon
Listed rear tire size for the Claas Arion 540.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Arion 540 vs. Row Crop median
Claas Arion 540 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 135 hp | 138 hp | -2% | 49th |
| Engine Displacement | 276 ci | 391 ci | -29% | 25th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 12,060 lb | 12,307 lb | -2% | 49th |
| Length | 193 in | 180 in | +7% | 66th |
| Height | 117 in | 114 in | +3% | 61st |
| 3-Point Hitch Capacity | 19,400 lb | 11,023 lb | +76% | 85th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 279–1,417 models).
Same manufacturer
Other Claas models
Other manufacturers
Models with similar horsepower
Gallery

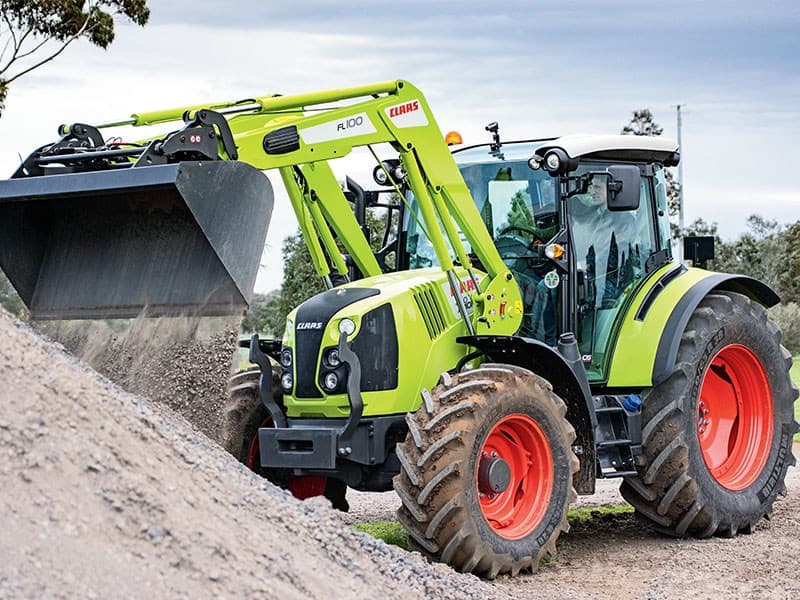

Claas Arion 540 photos




FAQ
Frequently asked questions
What is the engine power output of the Claas Arion 540?
Rated engine output for the Claas Arion 540 is 135 hp, delivered by a 4-cylinder engine. The engine displaces 276.1 ci.
What is the operating weight of the Claas Arion 540?
The Claas Arion 540 has an operating weight of about 12,060 lb.
Which transmission does the Claas Arion 540 use?
The Claas Arion 540 is equipped with a Partial power shift with power shuttle transmission with 24 forward gears.
What hydraulics does the Claas Arion 540 have?
The Claas Arion 540 uses an Open center hydraulic system.
What are the factory tire sizes for the Claas Arion 540?
The Claas Arion 540 comes with 14.9X28 front tires and 18.4X38 rear tires.
How do I maintain a Claas Arion 540?
Routine service for the Claas Arion 540 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
