Same brandClaas Atles 936
The Claas Atles 936 is a powerful agricultural tractor built for tough farm work. It has a strong 4-wheel drive system and a manual transmission with 18 forward gears and 8 reverse gears. This gives farmers lots of control when working in different field conditions. Under the hood, the Atles 936 has a Deutz engine with 6 cylinders. This engine is liquid-cooled and turbocharged, which helps it produce 253 horsepower. The tractor is big and sturdy, measuring 200.4 inches long and 128 inches tall. It weighs 19,902 pounds, making it a heavy-duty machine. The Atles 936 can lift heavy equipment too, with a hitch capacity of 26,460 pounds. For comfort, it has a standard cabin with air conditioning. The tractor also has a large fuel tank that can hold 120.2 US gallons, allowing for long work days without frequent refueling.

Key specifications
- Category
- Agricultural
- Engine power
- 253hp
- Operating weight
- 19,902 lb
- Transmission
- Manual
Category comparison
Atles 936 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
This model
The Atles 936 ranks at the 88th percentile for engine power among recorded agricultural tractors.
Overview
About the Claas Atles 936
The Claas Atles 936 is a powerful agricultural tractor built for tough farm work. It has a strong 4-wheel drive system and a manual transmission with 18 forward gears and 8 reverse gears. This gives farmers lots of control when working in different field conditions. Under the hood, the Atles 936 has a Deutz engine with 6 cylinders. This engine is liquid-cooled and turbocharged, which helps it produce 253 horsepower. The tractor is big and sturdy, measuring 200.4 inches long and 128 inches tall. It weighs 19,902 pounds, making it a heavy-duty machine. The Atles 936 can lift heavy equipment too, with a hitch capacity of 26,460 pounds. For comfort, it has a standard cabin with air conditioning. The tractor also has a large fuel tank that can hold 120.2 US gallons, allowing for long work days without frequent refueling.
Full specifications
Recorded specifications
General
| Manufacturer | Claas |
|---|---|
| Model | Atles 936 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 19,902lb(9,027 kg) |
Engine
| Make | Deutz |
|---|---|
| Model | BF6L1013FC |
| Power | 253hp(188.7 kW) |
| Cylinders | 6 |
| Displacement | 436.4ci(7.15 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 5.12in(130 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 18 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
| Brakes | Wet Disc |
| Cab | Standard Cabin with A/C |
Dimensions
| Length | 200.4in(5,090 mm) |
|---|---|
| Height | 128in(3,251 mm) |
| Operating weight | 19,902lb(9,027 kg) |
Closest alternatives
Atles 936 compared with the nearest models by horsepower
By engine horsepower, the nearest agricultural models to the Atles 936 are the Fendt Favorit 626LS and the John Deere 8520T. The Fendt Favorit 626LS makes 1 hp less and weighs 1,050 lb more. The John Deere 8520T is rated 3.0 hp higher and weighs 7,380 lb more, at 107 lb per horsepower against 79 lb. Of the 3 models, the Atles 936 has the lowest weight per horsepower at 79 lb per hp.
| Spec | Claas Atles 936 | Fendt Favorit 626LS | John Deere 8520T |
|---|---|---|---|
| Engine power | 253 hp188.7 kW | 252 hp187.9 kW | 256 hp190.9 kW |
| Operating weight | 19,902 lb9,027 kg | 20,947 lb9,501 kg | 27,280 lb12,374 kg |
| Weight per hp | 79 lb/hp48 kg/kW | 83 lb/hp51 kg/kW | 107 lb/hp65 kg/kW |
| Displacement | 436.4 ci7.15 L | 696.1 ci11.41 L | 496 ci8.13 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Manual | - | Full power shift |
| Drive | 4WD | 4WD | Track |
Calculators
Calculators for the Atles 936
PTO power
About 210 to 228 PTO hp
Estimated from the 253 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 253 hp tractor can run
Maximum size is about a 30 ft rotary cutter or a 25.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
91 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
253 hp is 188.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Claas Atles 936
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Deutz BF6L1013FCAmazon
Fits the Deutz BF6L1013FC 6-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Deutz BF6L1013FCAmazon
Fits the Deutz BF6L1013FC 6-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Deutz BF6L1013FCAmazon
Fits the Deutz BF6L1013FC 6-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Deutz BF6L1013FCAmazon
Fits the Deutz BF6L1013FC 6-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Claas Atles 936 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Claas Atles 936 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Claas Atles 936 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Atles 936 vs. Agricultural median
Claas Atles 936 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 253 hp | 110 hp | +130% | 88th |
| Engine Displacement | 436 ci | 336 ci | +30% | 78th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 19,902 lb | 10,914 lb | +82% | 83rd |
| Length | 200 in | 173 in | +16% | 79th |
| Height | 128 in | 111 in | +16% | 87th |
| 3-Point Hitch Capacity | 26,460 lb | 12,126 lb | +118% | 96th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 93–1,130 models).
Same manufacturer
Other Claas models
Other manufacturers
Models with similar horsepower
Gallery

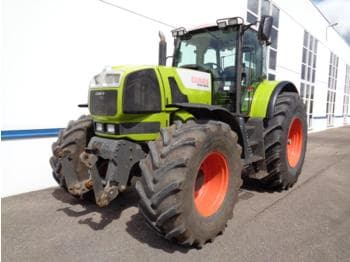

Claas Atles 936 photos



FAQ
Frequently asked questions
How much horsepower does the Claas Atles 936 have?
The Claas Atles 936 produces 253 hp from its 6-cylinder engine. Engine displacement is 436.4 ci.
How much does the Claas Atles 936 weigh?
The Claas Atles 936 weighs about 19,902 lb in operating condition.
What transmission is in the Claas Atles 936?
Transmission on the Claas Atles 936 is Manual, with 18 forward speeds.
What hitch category is the Claas Atles 936?
The Claas Atles 936 uses a Category III hitch with a lift capacity of 26,460 lb.
What maintenance does the Claas Atles 936 require?
The Claas Atles 936 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
