Claas Xerion 4000
The Claas Xerion 4000 is a powerful utility tractor built for tough jobs. It has a strong Mercedes-Benz engine with six cylinders and 419 horsepower. This engine is very big compared to most tractors, with 646.9 cubic inches of displacement. The Xerion 4000 runs on diesel fuel and has liquid cooling to keep it working well. This tractor is big and heavy, weighing 35,650 pounds. It's about 25 feet long, 8 feet wide, and 13 feet tall. The Xerion 4000 has four-wheel drive, which helps it move well in different conditions. It uses a special transmission that gives it infinite forward and reverse gears. This means the driver can pick the exact right speed for any job. The tractor starts with an electric starter, making it easy to get going.

Key specifications
- Category
- Utility
- Engine power
- 419hp
- Operating weight
- 35,650 lb
- Transmission
- Hydro-mechanical CVT
Category comparison
Xerion 4000 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The Xerion 4000 ranks at the 98th percentile for engine power among recorded utility tractors.
Overview
About the Claas Xerion 4000
The Claas Xerion 4000 is a powerful utility tractor built for tough jobs. It has a strong Mercedes-Benz engine with six cylinders and 419 horsepower. This engine is very big compared to most tractors, with 646.9 cubic inches of displacement. The Xerion 4000 runs on diesel fuel and has liquid cooling to keep it working well. This tractor is big and heavy, weighing 35,650 pounds. It's about 25 feet long, 8 feet wide, and 13 feet tall. The Xerion 4000 has four-wheel drive, which helps it move well in different conditions. It uses a special transmission that gives it infinite forward and reverse gears. This means the driver can pick the exact right speed for any job. The tractor starts with an electric starter, making it easy to get going.
Full specifications
Recorded specifications
General
| Manufacturer | Claas |
|---|---|
| Model | Xerion 4000 |
| Category | Utility tractor |
| Type | 4x4 4WD |
| Operating weight | 35,650lb(16,170 kg) |
Engine
| Make | Mercedes-Benz |
|---|---|
| Model | OM 470 LA |
| Power | 419hp(312.4 kW) |
| Cylinders | 6 |
| Displacement | 646.9ci(10.6 L) |
| Bore | 4.92in(125 mm) |
| Stroke | 5.71in(145 mm) |
Transmission
| Type | Hydro-mechanical CVT |
|---|
Chassis & drive
| Chassis | 4x4 4WD |
|---|---|
| Drive | Four-wheel Drive (4WD) |
Dimensions
| Length | 298.9in(7,592 mm) |
|---|---|
| Width | 98in(2,489 mm) |
| Height | 155.2in(3,942 mm) |
| Operating weight | 35,650lb(16,170 kg) |
Closest alternatives
Xerion 4000 compared with the nearest models by horsepower
The closest utility models to the Claas Xerion 4000 by rated horsepower are the Kirovets K-744R4 and the Kirovets K-745. The Kirovets K-744R4 makes 1 hp more and weighs 510 lb more. The Kirovets K-745 is rated 1 hp higher.
| Spec | Claas Xerion 4000 | Kirovets K-744R4 | Kirovets K-745 |
|---|---|---|---|
| Engine power | 419 hp312.4 kW | 420 hp313.2 kW | 420 hp313.2 kW |
| Operating weight | 35,650 lb16,171 kg | 36,160 lb16,402 kg | - |
| Weight per hp | 85 lb/hp52 kg/kW | 86 lb/hp52 kg/kW | - |
| Displacement | 646.9 ci10.6 L | 1,052 ci17.24 L | 1,052 ci17.24 L |
| Cylinders | 6 | 8 | 8 |
| Transmission | Hydro-mechanical CVT | Four-speed power shift | Four-speed power shift |
| Drive | Four-wheel Drive (4WD) | 4WD | 4WD |
Calculators
Calculators for the Xerion 4000
PTO power
About 348 to 377 PTO hp
Estimated from the 419 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 419 hp tractor can run
Maximum size is about a 50 ft rotary cutter or a 42.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
99 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
419 hp is 312.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Claas Xerion 4000
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Mercedes-Benz OM 470 LAAmazon
Fits the Mercedes-Benz OM 470 LA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Mercedes-Benz OM 470 LAAmazon
Fits the Mercedes-Benz OM 470 LA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Mercedes-Benz OM 470 LAAmazon
Fits the Mercedes-Benz OM 470 LA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Mercedes-Benz OM 470 LAAmazon
Fits the Mercedes-Benz OM 470 LA 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Claas Xerion 4000 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Claas Xerion 4000 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Claas Xerion 4000 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Xerion 4000 vs. Utility median
Claas Xerion 4000 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 419 hp | 55 hp | +662% | 98th |
| Engine Displacement | 647 ci | 183 ci | +253% | 96th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Operating Weight | 35,650 lb | 5,303 lb | +572% | 98th |
| Length | 299 in | 137 in | +119% | 99th |
| Width | 98 in | 66 in | +48% | 96th |
| Height | 155 in | 94.1 in | +65% | 99th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Claas models
Other manufacturers
Models with similar horsepower
Gallery

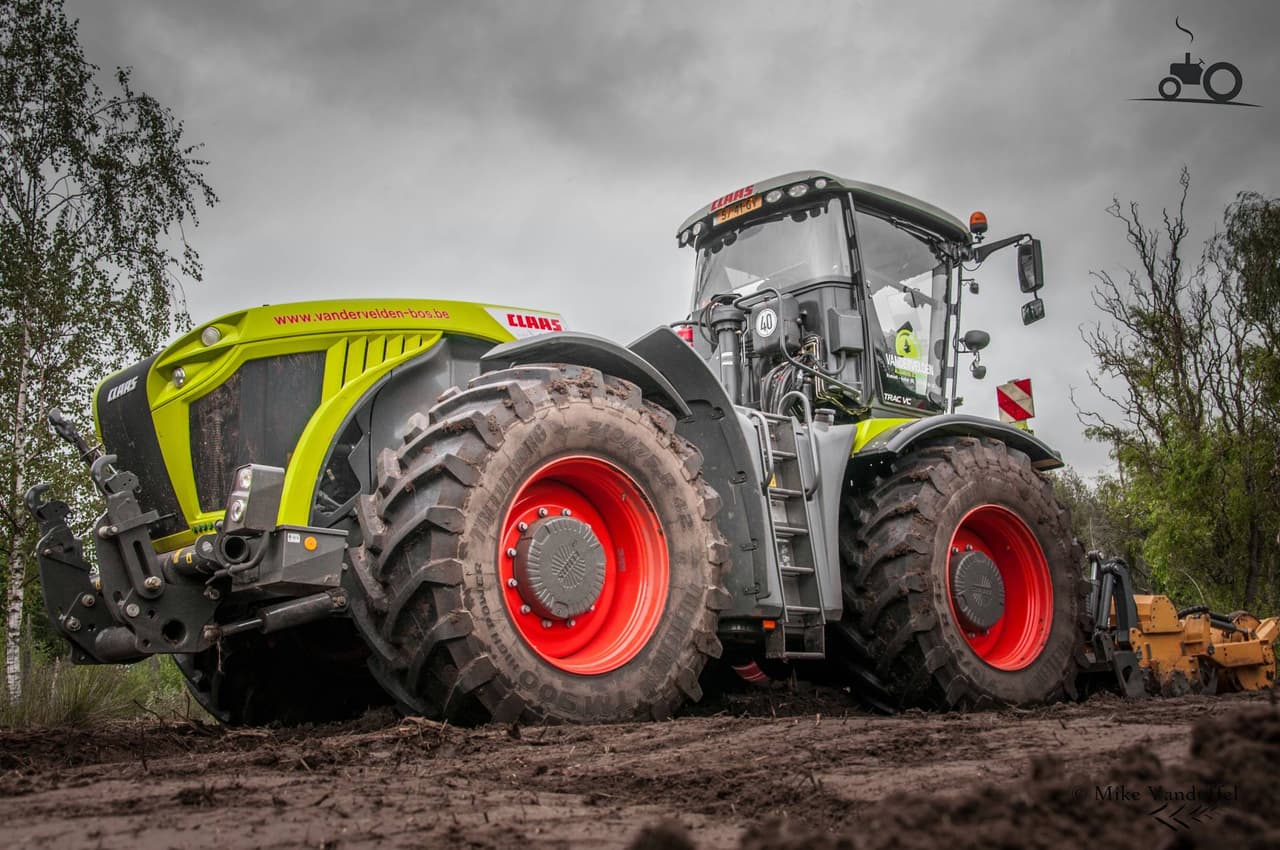

Claas Xerion 4000 photos





FAQ
Frequently asked questions
How much horsepower does the Claas Xerion 4000 have?
The Claas Xerion 4000 produces 419 hp from its 6-cylinder engine. Engine displacement is 646.9 ci.
What transmission is in the Claas Xerion 4000?
Transmission on the Claas Xerion 4000 is Hydro-mechanical CVT.
How much does the Claas Xerion 4000 weigh?
The Claas Xerion 4000 weighs about 35,650 lb in operating condition.
What maintenance does the Claas Xerion 4000 require?
The Claas Xerion 4000 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
