UtilityPerformance profile
Claas Xerion 3300
The Claas Xerion 3300 is a powerful utility tractor built for tough jobs. It has a strong Caterpillar engine with 335 horsepower, which is very high compared to other tractors. The engine is diesel-powered, turbocharged, and has 6 cylinders. It's also liquid-cooled to keep it running smoothly. This tractor is big and heavy, weighing 28,660 pounds. It's 261 inches long, 98 inches wide, and 146.5 inches tall. The Xerion 3300 has four-wheel drive and four-wheel steering, making it easy to move around in tight spaces. It uses a special transmission called CVT, which gives it smooth, endless gear changes going forward and backward. The tractor has a three-point hitch at the back for attaching tools. It also has a comfortable cab for the driver and uses a load-sensing hydraulic system to lift heavy equipment.
ManufacturerClaasPower335 hpEngine6-cylTransContinuously Variable Transmission (CVT)
Quick specs
- Category
- Utility
- Engine Power Output
- 335hp
- Operating Weight
- 28,660 lb
- Transmission
- Continuously Variable Transmission (CVT)
At a glance
How the Xerion 3300 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
335 hp · 97th
This model
9
Median 55 hp
177
335
This modelUtility tractorsMediann = 5,383
The Xerion 3300 ranks at the 97th percentile for engine power among recorded utility tractors.
Overview
About the Claas Xerion 3300
The Claas Xerion 3300 is a powerful utility tractor built for tough jobs. It has a strong Caterpillar engine with 335 horsepower, which is very high compared to other tractors. The engine is diesel-powered, turbocharged, and has 6 cylinders. It's also liquid-cooled to keep it running smoothly. This tractor is big and heavy, weighing 28,660 pounds. It's 261 inches long, 98 inches wide, and 146.5 inches tall. The Xerion 3300 has four-wheel drive and four-wheel steering, making it easy to move around in tight spaces. It uses a special transmission called CVT, which gives it smooth, endless gear changes going forward and backward. The tractor has a three-point hitch at the back for attaching tools. It also has a comfortable cab for the driver and uses a load-sensing hydraulic system to lift heavy equipment.
Full specifications
Every recorded spec
General
| Manufacturer | Claas |
|---|---|
| Model | Xerion 3300 |
| Category | Utility tractor |
| Type | 4x4 |
| Operating weight | 28,660lb |
Engine
| Make | Caterpillar |
|---|---|
| Power | 335hp |
| Cylinders | 6 |
| Displacement | 537.3ci |
Transmission
| Type | Continuously Variable Transmission (CVT) |
|---|
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | Four-wheel Drive (4WD) |
| Steering | Four-wheel steering |
| Cab | Cab |
Hydraulics
| Type | Load Sensing |
|---|
Dimensions
| Length | 261in |
|---|---|
| Width | 98in |
| Height | 146.5in |
| Operating weight | 28,660lb |
Head to head
Xerion 3300 vs. Utility median
How the Claas Xerion 3300 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 335 hp | 55 hp | +509% | 97th |
| Engine Displacement | 537 ci | 183 ci | +193% | 94th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Operating Weight | 28,660 lb | 5,303 lb | +440% | 97th |
| Length | 261 in | 137 in | +91% | 97th |
| Width | 98 in | 66 in | +48% | 96th |
| Height | 147 in | 94.1 in | +56% | 98th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Claas tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Claas Xerion 3800 | 379 hp | 28,660 lb | — | Compare → |
| Claas Xerion 4000 | 419 hp | 35,650 lb | — | Compare → |
| Claas Xerion 4500 | 439.48 hp | 51,400 lb | — | Compare → |
| Claas Xerion 4200 | 458 hp | 35,274 lb | — | Compare → |
| Claas Xerion 5000 | 487 hp | 29,540 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
| CaseIH Magnum 335 | 330 hp | 21,350 lb | — | Compare → |
| CaseIH Magnum 340 | 340 hp | 28,230 lb | — | Compare → |
| CaseIH Magnum 315 | 347 hp | 27,800 lb | — | Compare → |
Explore
Claas siblings
Explore
Similar-spec models
Gallery

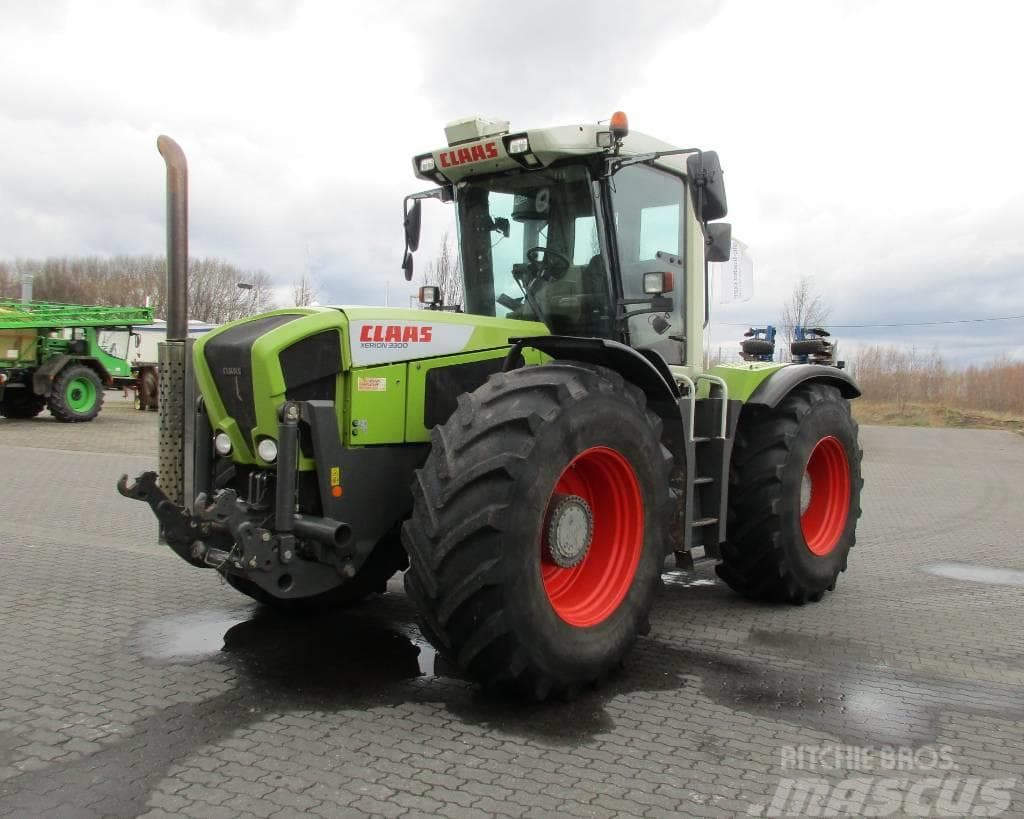

Claas Xerion 3300 photos
FAQ
Common questions
What is the engine power output of the Claas Xerion 3300?
Rated engine output for the Claas Xerion 3300 is 335 hp, delivered by a 6-cylinder engine. The engine displaces 537.3 ci.
Which transmission does the Claas Xerion 3300 use?
The Claas Xerion 3300 is equipped with a Continuously Variable Transmission (CVT) transmission.
What type of hydraulic system does the Claas Xerion 3300 use?
Hydraulics on the Claas Xerion 3300 are Load Sensing.
What hitch category is the Claas Xerion 3300?
The Claas Xerion 3300 uses a Category III N hitch.
What is the operating weight of the Claas Xerion 3300?
In working trim, the Claas Xerion 3300 comes in at roughly 28,660 lb.
How do I maintain a Claas Xerion 3300?
Routine service for the Claas Xerion 3300 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
