Head to head · Utility

AGCO AGCOSTAR 8360 vs New Holland T9.435

Image not recorded
New HollandModel B

New Holland T9.435

Utility

power
370 hp
displacement
531 ci
Cylinders
6
Forward gears
17
Full T9.435 specs

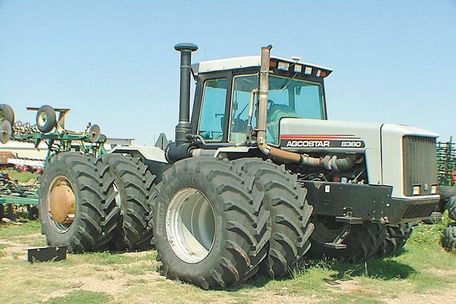

AGCOAGCO AGCOSTAR 8360
vs
New HollandNew Holland T9.435

How they compare

Headline specs vs. the whole Utility

n = 3,933–5,720

Engine Power

▲ T9.435 higher · +10 hp (+3%)
AGCOSTAR 8360360 hp
T9.435370 hp
Median Utility Tractor55 hp

AGCOSTAR 8360 is in the 98th percentile; T9.435 is in the 98th · 5,383 models

Engine Displacement

▲ AGCOSTAR 8360 higher · +324 ci (+61%)
AGCOSTAR 8360855 ci
T9.435531 ci
Median Utility Tractor183 ci

AGCOSTAR 8360 is in the 98th percentile; T9.435 is in the 94th · 5,580 models

Cylinders

= Effectively tied
AGCOSTAR 83606
T9.4356
Median Utility Tractor4

AGCOSTAR 8360 is in the 93rd percentile; T9.435 is in the 93rd · 5,720 models

Forward Gears

▲ AGCOSTAR 8360 higher · +1 (+6%)
AGCOSTAR 836018
T9.43517
Median Utility Tractor12

AGCOSTAR 8360 is in the 83rd percentile; T9.435 is in the 82nd · 4,941 models

AGCOSTAR 8360 (A)T9.435 (B)Median Utility Tractor

Full comparison

Every spec, side by side

General Information

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
ManufacturerAGCONew Holland—
ModelAGCOSTAR 8360T9.435—
CategoryUtilityUtilitySame

Engine

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
ManufacturerCumminsFPT—
ModelN14Cursor 9—
Power Output360hp370hp▲ T9.435+10 hp · +3%
Rated RPM2,100RPM2,000RPM▲ AGCOSTAR 8360+100 RPM · +5%
Cylinders66Same
Displacement855ci531ci▲ AGCOSTAR 8360+324 ci · +61%
Bore5.5in4.6in▲ AGCOSTAR 8360+0.9 in · +20%
Stroke6in5.3in▲ AGCOSTAR 8360+0.7 in · +13%

Transmission

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
TypePartially Synchronized GearFull power shift—

Dimensions & Weight

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
Length272in291in▲ T9.435+19 in · +7%
Width153in120in▲ AGCOSTAR 8360+33 in · +28%
Height133in151in▲ T9.435+18 in · +14%
Operating WeightNot recorded35,848lb—

Hydraulics

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
System TypeClosed CenterClosed center load sensing (CCLS)—
Steering TypeHydrostatic powerHydrostatic power articulated—

Hitch & Towing

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
Hitch TypeNot recordedIVN*—
Hitch CategoryCategory 3Not recorded—

Chassis & Drive

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
Chassis Type4x4 MFWD 4WD4x4 articulated 4WD—
Drive Type4WD4WDSame
Steering TypeHydrostatic powerHydrostatic power articulated—
Brake TypeCaliper Disc (Hydraulically Operated by Foot Pedal)Not recorded—

Electrical

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
Starter TypeElectricElectricSame

Emissions

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
StandardNot recordedTier IV—
Control SystemNot recordedSelective catalytic reduction and diesel oxidation catalyst—

Operator Station

SpecAGCO AGCOSTAR 8360New Holland T9.435Difference
TypeCabNot recorded—

Category context

Both models against the field

Engine Power

median 55 hp
A · 98th percentile (360 hp)B · 98th percentile (370 hp)

Engine Displacement

median 183 ci
A · 98th percentile (855 ci)B · 94th percentile (531 ci)

Cylinders

median 4
A · 93rd percentile (6)B · 93rd percentile (6)

Forward Gears

median 12
A · 83rd percentile (18)B · 82nd percentile (17)

Length

median 137 in
A · 98th percentile (272 in)B · 99th percentile (291 in)
A · AGCOSTAR 8360B · T9.435Median Utility Tractor
Full spec pageAGCO AGCOSTAR 8360Full spec pageNew Holland T9.435
