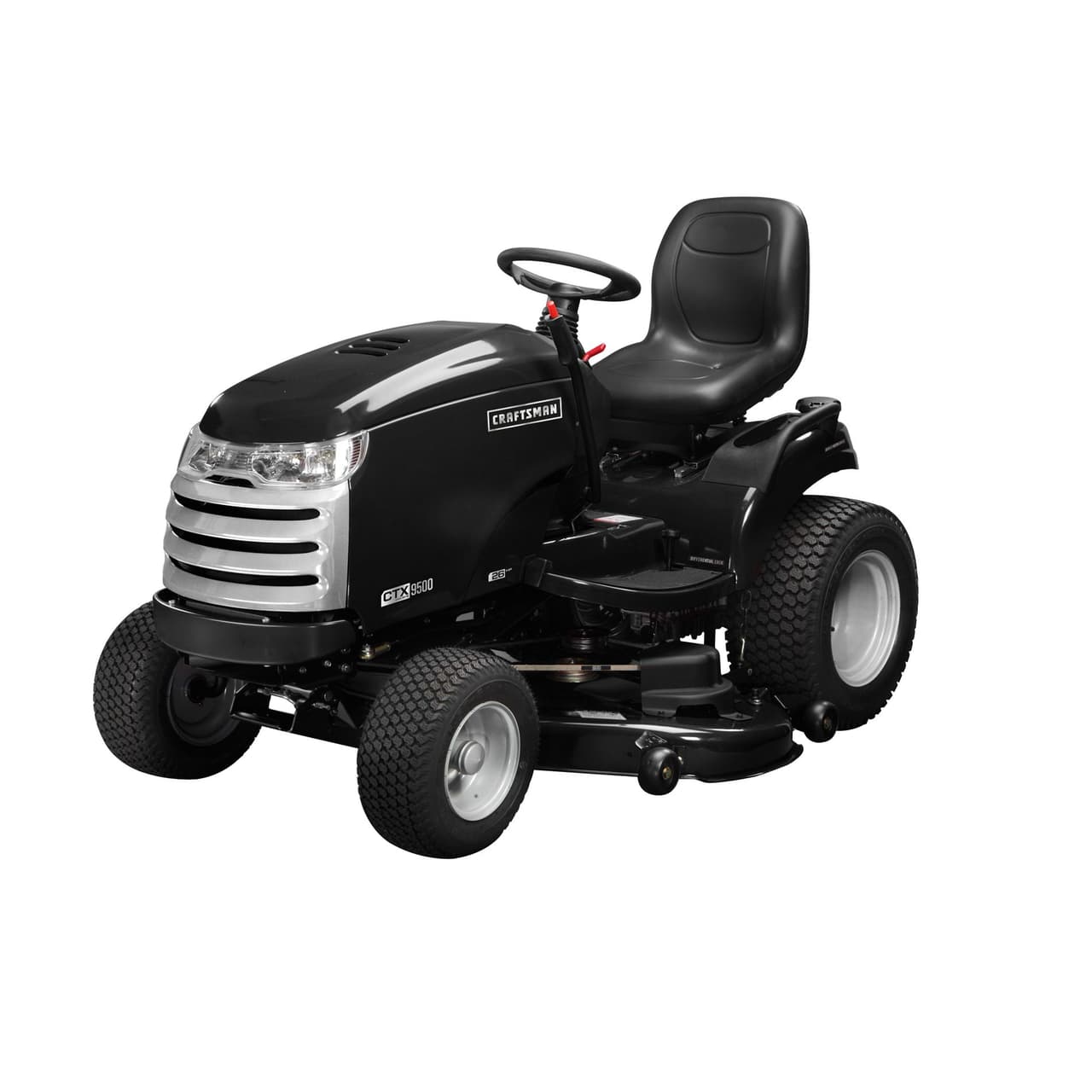

Craftsman CTX9500
The Craftsman CTX9500 is a powerful lawn and garden tractor built for homeowners who need to tackle big jobs. It has a strong Briggs & Stratton engine with 26 horsepower, which is very high for its class. This tractor is designed for mowing large areas and doing other yard work with ease. The CTX9500 is a 2-wheel drive tractor with a hydrostatic transmission. This means it's easy to drive, with smooth speed changes and no need to shift gears. It has an open operator station, making it simple to get on and off. The tractor is quite large, measuring 75 inches long, 61 inches wide, and 47 inches tall. It weighs 1,173 pounds, which is above average for lawn tractors. This size and weight help it handle tough jobs and uneven ground.
ManufacturerCraftsmanPower26 hpEngine2-cylTransBelt-driven Hydrostatic
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 26hp
- Operating Weight
- 1,173 lb
- Transmission
- Belt-driven Hydrostatic
At a glance
How the CTX9500 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
26 hp · 87th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The CTX9500 ranks at the 87th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Craftsman CTX9500
The Craftsman CTX9500 is a powerful lawn and garden tractor built for homeowners who need to tackle big jobs. It has a strong Briggs & Stratton engine with 26 horsepower, which is very high for its class. This tractor is designed for mowing large areas and doing other yard work with ease. The CTX9500 is a 2-wheel drive tractor with a hydrostatic transmission. This means it's easy to drive, with smooth speed changes and no need to shift gears. It has an open operator station, making it simple to get on and off. The tractor is quite large, measuring 75 inches long, 61 inches wide, and 47 inches tall. It weighs 1,173 pounds, which is above average for lawn tractors. This size and weight help it handle tough jobs and uneven ground.
Full specifications
Every recorded spec
General
| Manufacturer | Craftsman |
|---|---|
| Model | CTX9500 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 2012–2012 |
| Operating weight | 1,173lb |
Engine
| Make | Briggs & Stratton |
|---|---|
| Model | 44P777 |
| Power | 26hp |
| Cylinders | 2 |
| Displacement | 44.2ci |
| Bore | 3.12in |
| Stroke | 2.89in |
Transmission
| Type | Belt-driven Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open operator station |
Power take-off
| Rear PTO | Independent with electric clutch |
|---|
Dimensions
| Length | 75in |
|---|---|
| Width | 61in |
| Height | 47in |
| Operating weight | 1,173lb |
Head to head
CTX9500 vs. Lawn and Garden median
How the Craftsman CTX9500 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 26 hp | 18 hp | +44% | 87th |
| Engine Displacement | 44.2 ci | 41.1 ci | +8% | 62nd |
| Cylinders | 2 | 2 | at median | 50th |
| Operating Weight | 1,173 lb | 738 lb | +59% | 69th |
| Length | 75 in | 71.7 in | +5% | 67th |
| Width | 61 in | 43.3 in | +41% | 97th |
| Height | 47 in | 42.9 in | +10% | 69th |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 269–380 models).
Compare to tractors with similar specs
Commonly compared Craftsman tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Craftsman DGS6500 | 26 hp | 589 lb | 2008+ | Compare → |
| Craftsman DGT6000 | 27 hp | — | — | Compare → |
| Craftsman DGT4000 | 23 hp | — | 2001+ | Compare → |
| Craftsman CTX9000 | 20 hp | — | 2012+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
| Belarus 254 | 25 hp | — | — | Compare → |
| Bobcat CT225 | 27 hp | 3,021 lb | 2008–2013 | Compare → |
Explore
Craftsman siblings
Explore
Similar-spec models
Gallery
Craftsman CTX9500 photos
FAQ
Common questions
What years was the Craftsman CTX9500 manufactured?
The Craftsman CTX9500 was in production during 2012.
What type of transmission does the Craftsman CTX9500 have?
The Craftsman CTX9500 uses a Belt-driven Hydrostatic transmission.
How powerful is the Craftsman CTX9500?
The Craftsman CTX9500 has an engine power output of 26 hp. It is powered by a 2-cylinder engine displacing 44.2 ci.
What is the working weight of the Craftsman CTX9500?
The operating weight of the Craftsman CTX9500 is approximately 1,173 lb.
What routine service does the Craftsman CTX9500 need?
Regular maintenance for the Craftsman CTX9500 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
