Lawn and GardenPerformance profile
Cub Cadet 100
The Cub Cadet 100 is a compact lawn and garden tractor built from 1963 to 1965. It's perfect for small yards and gardens. This tractor has a 2-wheel drive system and manual steering, making it easy to use for simple tasks. The Cub Cadet 100 is powered by a Kohler K241 engine. This engine has one cylinder and runs on gasoline. It's air-cooled and produces 10 horsepower, which is below average for tractors. The engine size is also smaller than most, but it's enough for basic lawn care. The tractor has a 6.2-liter fuel tank, so you can work for a while before refueling. It has an electric starter, which means you can start it with just a turn of a key. This tractor has a simple transmission with three forward gears and one reverse gear. It uses a transmission PTO (Power Take-Off) system to run attachments. The Cub Cadet 100 has an open operator station, so you'll be out in the fresh air while working. It has lawn and turf tires, perfect for use on grass without damaging it. At 39.8 inches tall, it's compact and easy to store in a small shed or garage.
ManufacturerCub CadetPower10 hpEngine1-cylTransShaft-driven gear type
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 10hp
- Transmission
- Shaft-driven gear type
At a glance
How the 100 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
10 hp · 7th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The 100 ranks at the 7th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Cub Cadet 100
The Cub Cadet 100 is a compact lawn and garden tractor built from 1963 to 1965. It's perfect for small yards and gardens. This tractor has a 2-wheel drive system and manual steering, making it easy to use for simple tasks. The Cub Cadet 100 is powered by a Kohler K241 engine. This engine has one cylinder and runs on gasoline. It's air-cooled and produces 10 horsepower, which is below average for tractors. The engine size is also smaller than most, but it's enough for basic lawn care. The tractor has a 6.2-liter fuel tank, so you can work for a while before refueling. It has an electric starter, which means you can start it with just a turn of a key. This tractor has a simple transmission with three forward gears and one reverse gear. It uses a transmission PTO (Power Take-Off) system to run attachments. The Cub Cadet 100 has an open operator station, so you'll be out in the fresh air while working. It has lawn and turf tires, perfect for use on grass without damaging it. At 39.8 inches tall, it's compact and easy to store in a small shed or garage.
Full specifications
Every recorded spec
General
| Manufacturer | Cub Cadet |
|---|---|
| Model | 100 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1963–1965 |
Engine
| Make | Kohler |
|---|---|
| Model | K241 |
| Power | 10hp |
| Cylinders | 1 |
| Displacement | 23.9ci |
| Bore | 3.25in |
| Stroke | 2.87in |
Transmission
| Type | Shaft-driven gear type |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Dry Disc |
| Cab | Open Operator Station |
Power take-off
| Rear PTO | Transmission |
|---|
Dimensions
| Height | 39.8in |
|---|
Capacities
| Fuel tank | 1.64gal |
|---|
Head to head
100 vs. Lawn and Garden median
How the Cub Cadet 100 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 10 hp | 18 hp | -44% | 7th |
| Engine Displacement | 23.9 ci | 41.1 ci | -42% | 13th |
| Cylinders | 1 | 2 | -50% | 17th |
| Forward Gears | 3 | 6 | -50% | 10th |
| Height | 39.8 in | 42.9 in | -7% | 13th |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared Cub Cadet tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cub Cadet 1000 | 10 hp | 628 lb | 1974–1980 | Compare → |
| Cub Cadet 1015 | 10 hp | 396.8 lb | 1988–1991 | Compare → |
| Cub Cadet 102 | 10 hp | 778 lb | 1965–1967 | Compare → |
| Cub Cadet 1020 | 10 hp | 405.7 lb | 1988–1991 | Compare → |
| Cub Cadet 106 | 10 hp | 619 lb | 1969–1971 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens 1050 | 10 hp | 644 lb | 1966–1969 | Compare → |
| Farmall F-12 | 10 hp | 2,701 lb | 1932–1938 | Compare → |
| Hinomoto MB-10 | 10 hp | — | — | Compare → |
| John Deere 62 | 10 hp | 1,500 lb | — | Compare → |
| Kubota B-10 Bulltra | 10 hp | — | — | Compare → |
Explore
Cub Cadet siblings
Explore
Similar-spec models
Gallery

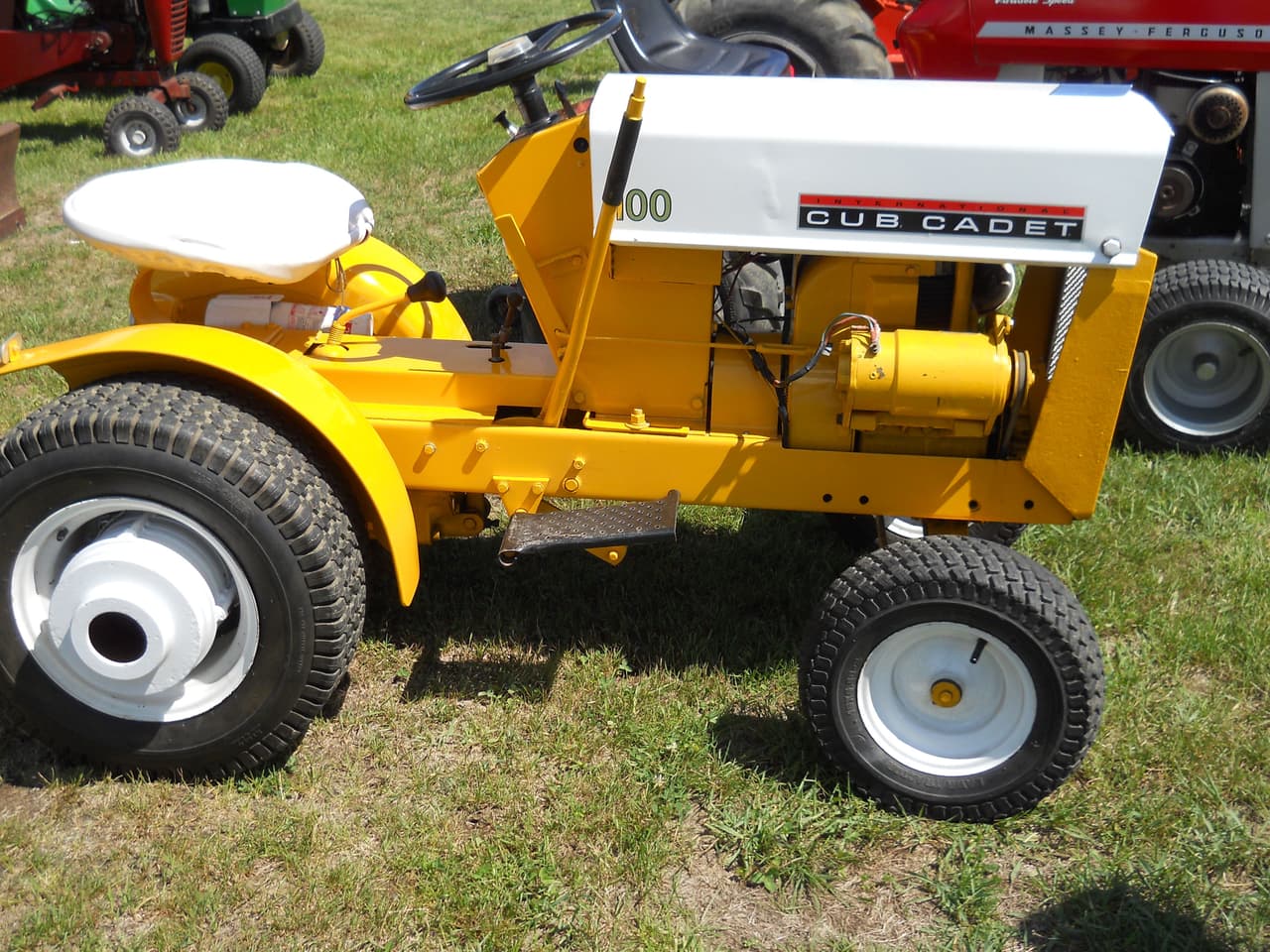

Cub Cadet 100 photos
FAQ
Common questions
When was the Cub Cadet 100 made?
The Cub Cadet 100 was manufactured from 1963 to 1965.
How much fuel does the Cub Cadet 100 hold?
The Cub Cadet 100 has a fuel capacity of 1.64 gal.
Which transmission does the Cub Cadet 100 use?
The Cub Cadet 100 is equipped with a Shaft-driven gear type transmission with 3 forward gears.
What is the engine power output of the Cub Cadet 100?
Rated engine output for the Cub Cadet 100 is 10 hp, delivered by a 1-cylinder engine. The engine displaces 23.9 ci.
How do I maintain a Cub Cadet 100?
Routine service for the Cub Cadet 100 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
