UtilityPerformance profile
Hinomoto MB-10
The Hinomoto MB-10 is a small utility tractor designed for light farm work. It has a 2-wheel drive system and a gear transmission with 6 forward gears and 2 reverse gears. This tractor is compact, measuring 70.1 inches long and 44.6 inches high to the steering wheel. The MB-10 is powered by an Aichi TE-80H engine. This engine is air-cooled and runs on kerosene fuel. It has one cylinder and produces 10 horsepower. The engine is naturally aspirated, which means it doesn't use a turbocharger. Compared to other tractors, the MB-10's engine size and power are very low. The tractor features an electric starter and an open center hydraulic system for attaching implements.
ManufacturerHinomotoPower10 hpEngine1-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 10hp
- Transmission
- Gear
At a glance
How the MB-10 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
10 hp · 1st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MB-10 ranks at the 1st percentile for engine power among recorded utility tractors.
Overview
About the Hinomoto MB-10
The Hinomoto MB-10 is a small utility tractor designed for light farm work. It has a 2-wheel drive system and a gear transmission with 6 forward gears and 2 reverse gears. This tractor is compact, measuring 70.1 inches long and 44.6 inches high to the steering wheel. The MB-10 is powered by an Aichi TE-80H engine. This engine is air-cooled and runs on kerosene fuel. It has one cylinder and produces 10 horsepower. The engine is naturally aspirated, which means it doesn't use a turbocharger. Compared to other tractors, the MB-10's engine size and power are very low. The tractor features an electric starter and an open center hydraulic system for attaching implements.
Full specifications
Every recorded spec
General
| Manufacturer | Hinomoto |
|---|---|
| Model | MB-10 |
| Category | Utility tractor |
| Type | 4x2 2WD |
Engine
| Make | Aichi |
|---|---|
| Model | TE-80H |
| Power | 10hp |
| Cylinders | 1 |
| Displacement | 23ci |
| Bore | 3.15in |
| Stroke | 2.95in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 70.1in |
|---|---|
| Height | 44.6in |
Head to head
MB-10 vs. Utility median
How the Hinomoto MB-10 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 10 hp | 55 hp | -82% | 1st |
| Engine Displacement | 23 ci | 183 ci | -87% | 1st |
| Cylinders | 1 | 4 | -75% | 1st |
| Forward Gears | 6 | 12 | -50% | 11th |
| Length | 70.1 in | 137 in | -49% | 1st |
| Height | 44.6 in | 94.1 in | -53% | 1st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Hinomoto tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hinomoto MB-1100 | 13 hp | 904 lb | — | Compare → |
| Hinomoto MB-140 | 14 hp | 1,195 lb | — | Compare → |
| Hinomoto E16 / E16D | 16 hp | — | 1977–1979 | Compare → |
| Hinomoto C142 | 17 hp | 1,263 lb | — | Compare → |
| Hinomoto C144 | 17 hp | 1,473 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens 1050 | 10 hp | 644 lb | 1966–1969 | Compare → |
| Cub Cadet 100 | 10 hp | — | 1963–1965 | Compare → |
| Cub Cadet 1000 | 10 hp | 628 lb | 1974–1980 | Compare → |
| Cub Cadet 1015 | 10 hp | 396.8 lb | 1988–1991 | Compare → |
| Cub Cadet 102 | 10 hp | 778 lb | 1965–1967 | Compare → |
Explore
Hinomoto siblings
Explore
Similar-spec models
Gallery

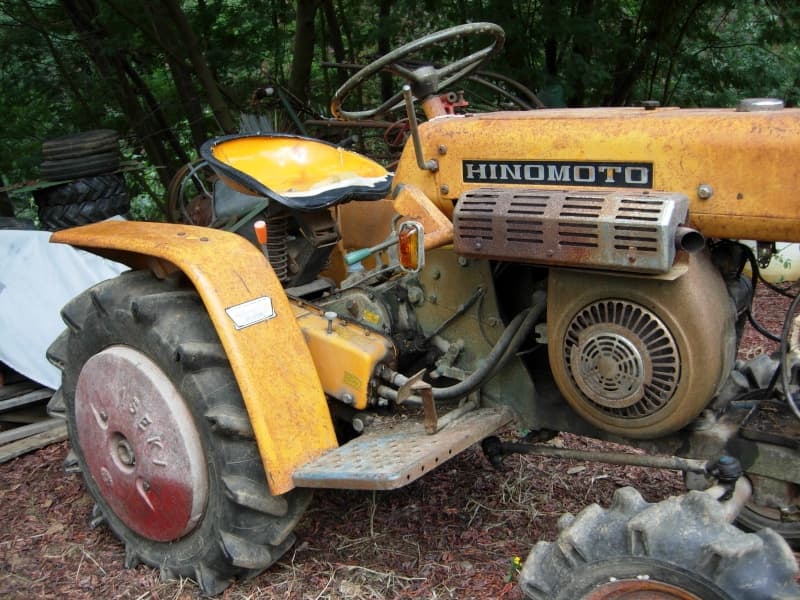

Hinomoto MB-10 photos
FAQ
Common questions
How powerful is the Hinomoto MB-10?
The Hinomoto MB-10 has an engine power output of 10 hp. It is powered by a 1-cylinder engine displacing 23 ci.
What type of hydraulic system does the Hinomoto MB-10 use?
Hydraulics on the Hinomoto MB-10 are Open Center.
What type of transmission does the Hinomoto MB-10 have?
The Hinomoto MB-10 uses a Gear transmission offering 6 forward gears.
What routine service does the Hinomoto MB-10 need?
Regular maintenance for the Hinomoto MB-10 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
