Cub Cadet 109
The Cub Cadet 109 is a compact lawn and garden tractor made from 1971 to 1974 in Louisville, Kentucky. It's designed for easy mowing and yard work with its 2WD system and manual steering. The tractor has a hydrostatic transmission, which means it can go forward and backward smoothly without changing gears. Under the hood, the Cub Cadet 109 has a small Kohler K241A engine. This engine is air-cooled and runs on gasoline. It has one cylinder and produces 10.1 hp at 3600 rpm, which is enough power for most lawn tasks. The engine size is below average compared to other tractors, but it spins very fast for its class. The tractor has lawn/turf tires and measures 68.9 inches long, 32.7 inches wide, and 40.9 inches tall. It comes with an open operator station and uses an electric starter for easy operation. The Cub Cadet 109 also has a front PTO and an optional sleeve hitch for attaching tools.
ManufacturerCub CadetPower10.1 hpEngine1-cylTransHydrostatic
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 10hp
- Transmission
- Hydrostatic
At a glance
How the 109 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
10.1 hp · 10th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The 109 ranks at the 10th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Cub Cadet 109
The Cub Cadet 109 is a compact lawn and garden tractor made from 1971 to 1974 in Louisville, Kentucky. It's designed for easy mowing and yard work with its 2WD system and manual steering. The tractor has a hydrostatic transmission, which means it can go forward and backward smoothly without changing gears. Under the hood, the Cub Cadet 109 has a small Kohler K241A engine. This engine is air-cooled and runs on gasoline. It has one cylinder and produces 10.1 hp at 3600 rpm, which is enough power for most lawn tasks. The engine size is below average compared to other tractors, but it spins very fast for its class. The tractor has lawn/turf tires and measures 68.9 inches long, 32.7 inches wide, and 40.9 inches tall. It comes with an open operator station and uses an electric starter for easy operation. The Cub Cadet 109 also has a front PTO and an optional sleeve hitch for attaching tools.
Full specifications
Every recorded spec
General
| Manufacturer | Cub Cadet |
|---|---|
| Model | 109 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1971–1974 |
Engine
| Make | Kohler |
|---|---|
| Model | K241A |
| Power | 10.1hp |
| Cylinders | 1 |
| Displacement | 23.9ci |
| Bore | 3.25in |
| Stroke | 2.87in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Dry Disc |
| Cab | Open |
Power take-off
| Rear PTO | Front, Independent with mechanical clutch |
|---|
Dimensions
| Length | 68.9in |
|---|---|
| Width | 32.7in |
| Height | 40.9in |
Head to head
109 vs. Lawn and Garden median
How the Cub Cadet 109 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 10.1 hp | 18 hp | -44% | 10th |
| Engine Displacement | 23.9 ci | 41.1 ci | -42% | 13th |
| Cylinders | 1 | 2 | -50% | 17th |
| Length | 68.9 in | 71.7 in | -4% | 38th |
| Width | 32.7 in | 43.3 in | -24% | 3rd |
| Height | 40.9 in | 42.9 in | -5% | 21st |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 269–380 models).
Compare to tractors with similar specs
Commonly compared Cub Cadet tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cub Cadet 104 | 10.1 hp | 604 lb | — | Compare → |
| Cub Cadet 105 | 10.1 hp | 624 lb | 1967–1969 | Compare → |
| Cub Cadet 108 | 10.1 hp | — | 1971–1974 | Compare → |
| Cub Cadet 100 | 10 hp | — | 1963–1965 | Compare → |
| Cub Cadet 1000 | 10 hp | 628 lb | 1974–1980 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Honda HT3810 | 10.1 hp | 545 lb | 1985–1989 | Compare → |
| John Deere L | 10.17 hp | 1,515 lb | 1937–1946 | Compare → |
| Bolens 1050 | 10 hp | 644 lb | 1966–1969 | Compare → |
| Farmall F-12 | 10 hp | 2,701 lb | 1932–1938 | Compare → |
| Hinomoto MB-10 | 10 hp | — | — | Compare → |
Explore
Cub Cadet siblings
Explore
Similar-spec models
Gallery

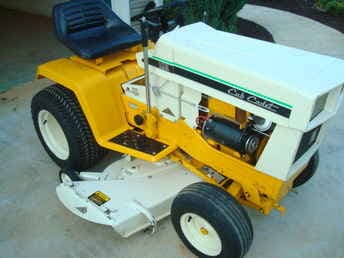

Cub Cadet 109 photos
FAQ
Common questions
When was the Cub Cadet 109 made?
The Cub Cadet 109 was manufactured from 1971 to 1974.
Which transmission does the Cub Cadet 109 use?
The Cub Cadet 109 is equipped with a Hydrostatic transmission.
What is the engine power output of the Cub Cadet 109?
Rated engine output for the Cub Cadet 109 is 10.1 hp, delivered by a 1-cylinder engine. The engine displaces 23.9 ci.
How do I maintain a Cub Cadet 109?
Routine service for the Cub Cadet 109 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
