Same brandCub Cadet 5254
The Cub Cadet 5254 is a compact utility tractor designed for small farms and large properties. It's a 4-wheel drive machine with a hydrostatic transmission, giving you smooth control over speed and direction. The tractor is powered by a Kawasaki gasoline engine with 2 cylinders and 25 horsepower, which is average for its size. This tractor is small and easy to maneuver, measuring 85 inches long, 45 inches wide, and 51 inches tall. It weighs 1,267 pounds, making it lighter than many other tractors. The Cub Cadet 5254 has a Category I hitch, allowing you to attach various tools and implements. It also features hydrostatic power steering and an open center hydraulic system for better control and performance. The electric starter and liquid-cooled engine make it easy to use in different weather conditions.

Key specifications
- Category
- Utility
- Engine power
- 25hp
- Operating weight
- 1,267 lb
- Transmission
- Hydrostatic
Category comparison
5254 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 5254 ranks at the 16th percentile for engine power among recorded utility tractors.
Overview
About the Cub Cadet 5254
The Cub Cadet 5254 is a compact utility tractor designed for small farms and large properties. It's a 4-wheel drive machine with a hydrostatic transmission, giving you smooth control over speed and direction. The tractor is powered by a Kawasaki gasoline engine with 2 cylinders and 25 horsepower, which is average for its size. This tractor is small and easy to maneuver, measuring 85 inches long, 45 inches wide, and 51 inches tall. It weighs 1,267 pounds, making it lighter than many other tractors. The Cub Cadet 5254 has a Category I hitch, allowing you to attach various tools and implements. It also features hydrostatic power steering and an open center hydraulic system for better control and performance. The electric starter and liquid-cooled engine make it easy to use in different weather conditions.
Full specifications
Recorded specifications
General
| Manufacturer | Cub Cadet |
|---|---|
| Model | 5254 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,267lb(574.7 kg) |
Engine
| Make | Kawasaki |
|---|---|
| Power | 25hp(18.64 kW) |
| Cylinders | 2 |
| Displacement | 45.5ci(0.75 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 3.07in(77.98 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 85in(2,159 mm) |
|---|---|
| Width | 45in(1,143 mm) |
| Height | 51in(1,295 mm) |
| Operating weight | 1,267lb(574.7 kg) |
Capacities
| Cooling system | 0.88gal(3.33 L) |
|---|
Closest alternatives
5254 compared with the nearest models by horsepower
The closest utility models to the Cub Cadet 5254 by rated horsepower are the Cub Cadet 5252 and the Cub Cadet 7252. The Cub Cadet 5252 matches it on rated power and weighs 70 lb less. The Cub Cadet 7252 matches it on rated power and weighs 330 lb more, at 64 lb per horsepower against 51 lb.
| Spec | Cub Cadet 5254 | Cub Cadet 5252 | Cub Cadet 7252 |
|---|---|---|---|
| Engine power | 25 hp18.6 kW | 25 hp18.6 kW | 25 hp18.6 kW |
| Operating weight | 1,267 lb575 kg | 1,200 lb544 kg | 1,597 lb724 kg |
| Weight per hp | 51 lb/hp31 kg/kW | 48 lb/hp29 kg/kW | 64 lb/hp39 kg/kW |
| Displacement | 45.5 ci0.75 L | 45.6 ci0.75 L | 45.6 ci0.75 L |
| Cylinders | 2 | 2 | 2 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive | 4WD | 2WD | 2WD |
Calculators
Calculators for the 5254
PTO power
About 21 to 23 PTO hp
Estimated from the 25 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 25 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
59 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
25 hp is 18.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Cub Cadet 5254
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the KawasakiAmazon
Fits the Kawasaki 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the KawasakiAmazon
Fits the Kawasaki 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the KawasakiAmazon
Fits the Kawasaki 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the KawasakiAmazon
Fits the Kawasaki 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Cub Cadet 5254 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Cub Cadet 5254 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Cub Cadet 5254 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
5254 vs. Utility median
Cub Cadet 5254 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 25 hp | 55 hp | -55% | 16th |
| Engine Displacement | 45.5 ci | 183 ci | -75% | 2nd |
| Cylinders | 2 | 4 | -50% | 3rd |
| Operating Weight | 1,267 lb | 5,303 lb | -76% | 2nd |
| Length | 85 in | 137 in | -38% | 3rd |
| Width | 45 in | 66 in | -32% | 10th |
| Height | 51 in | 94.1 in | -46% | 3rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Cub Cadet models
Other manufacturers
Models with similar horsepower
Gallery

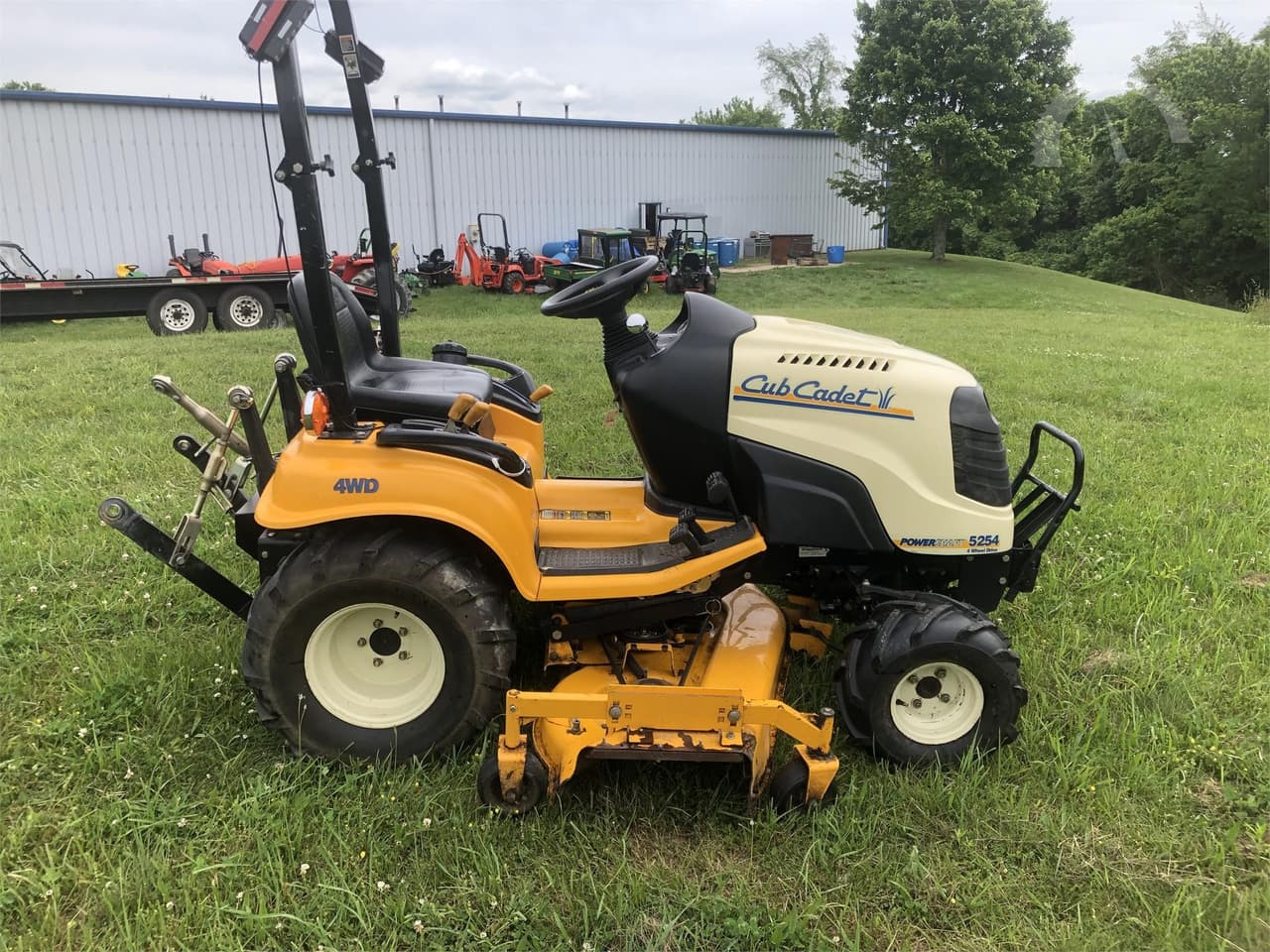

Cub Cadet 5254 photos






FAQ
Frequently asked questions
What is the engine power output of the Cub Cadet 5254?
Rated engine output for the Cub Cadet 5254 is 25 hp, delivered by a 2-cylinder engine. The engine displaces 45.5 ci.
Which transmission does the Cub Cadet 5254 use?
The Cub Cadet 5254 is equipped with a Hydrostatic transmission.
What type of hydraulic system does the Cub Cadet 5254 use?
Hydraulics on the Cub Cadet 5254 are Open Center.
What hitch category is the Cub Cadet 5254?
The Cub Cadet 5254 uses a Category I hitch.
What is the operating weight of the Cub Cadet 5254?
The Cub Cadet 5254 has an operating weight of about 1,267 lb.
How do I maintain a Cub Cadet 5254?
Routine service for the Cub Cadet 5254 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
