Cub Cadet 7254
The Cub Cadet 7254 is a utility tractor built for versatility and power. It features a 4-wheel drive system and hydrostatic power steering, making it easy to handle in various conditions. The tractor is powered by a Kawasaki FD750 engine, which is a 2-cylinder, liquid-cooled gasoline engine. With 25 horsepower, this tractor offers average power for its class, suitable for many farm tasks. This compact tractor measures 91 inches long, 48 inches wide, and 53 inches tall, making it a good fit for smaller farms or tight spaces. It has a Type I rear hitch, allowing it to connect with various implements. The 7254 model weighs 1,662 pounds, which is on the lighter side for utility tractors. Some notable features include a 10-inch ground clearance, a 58-inch wheelbase, and infinite forward and reverse gears in two ranges. An optional coolant heater is available for cold weather operation.
ManufacturerCub CadetPower25 hp(18.6 kW)Class25–40 HP tractors →Engine2-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 25hp
- Operating weight
- 1,662 lb
- Transmission
- Hydrostatic
Category comparison
7254 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
25 hp · 16th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 7254 ranks at the 16th percentile for engine power among recorded utility tractors.
Overview
About the Cub Cadet 7254
The Cub Cadet 7254 is a utility tractor built for versatility and power. It features a 4-wheel drive system and hydrostatic power steering, making it easy to handle in various conditions. The tractor is powered by a Kawasaki FD750 engine, which is a 2-cylinder, liquid-cooled gasoline engine. With 25 horsepower, this tractor offers average power for its class, suitable for many farm tasks. This compact tractor measures 91 inches long, 48 inches wide, and 53 inches tall, making it a good fit for smaller farms or tight spaces. It has a Type I rear hitch, allowing it to connect with various implements. The 7254 model weighs 1,662 pounds, which is on the lighter side for utility tractors. Some notable features include a 10-inch ground clearance, a 58-inch wheelbase, and infinite forward and reverse gears in two ranges. An optional coolant heater is available for cold weather operation.
Full specifications
Recorded specifications
General
| Manufacturer | Cub Cadet |
|---|---|
| Model | 7254 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,662lb(753.9 kg) |
Engine
| Make | Kawasaki |
|---|---|
| Model | FD750 |
| Power | 25hp(18.64 kW) |
| Cylinders | 2 |
| Displacement | 45.6ci(0.75 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 3.07in(77.98 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 91in(2,311 mm) |
|---|---|
| Width | 48in(1,219 mm) |
| Height | 53in(1,346 mm) |
| Operating weight | 1,662lb(753.9 kg) |
Capacities
| Cooling system | 0.88gal(3.33 L) |
|---|
Closest alternatives
7254 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 7254 are the Cub Cadet 5252 and the Cub Cadet 5254. The Cub Cadet 5252 matches it on rated power and weighs 460 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Cub Cadet 5254 matches it on rated power and weighs 400 lb less, carrying 51 lb per horsepower against 66 lb. Of the 3 models, the 7254 has the highest weight per horsepower at 66 lb per hp.
| Spec | Cub Cadet 7254 | Cub Cadet 5252 | Cub Cadet 5254 |
|---|---|---|---|
| Engine power | 25 hp18.6 kW | 25 hp18.6 kW | 25 hp18.6 kW |
| Operating weight | 1,662 lb754 kg | 1,200 lb544 kg | 1,267 lb575 kg |
| Weight per hp | 66 lb/hp40 kg/kW | 48 lb/hp29 kg/kW | 51 lb/hp31 kg/kW |
| Displacement | 45.6 ci0.75 L | 45.6 ci0.75 L | 45.5 ci0.75 L |
| Cylinders | 2 | 2 | 2 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive | 4WD | 2WD | 4WD |
Calculators
Calculators for the 7254
PTO power
About 21 to 23 PTO hp
Estimated from the 25 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 25 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
77 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
25 hp is 18.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
7254 vs. Utility median
Cub Cadet 7254 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 25 hp | 55 hp | -55% | 16th |
| Engine Displacement | 45.6 ci | 183 ci | -75% | 2nd |
| Cylinders | 2 | 4 | -50% | 3rd |
| Operating Weight | 1,662 lb | 5,303 lb | -69% | 8th |
| Length | 91 in | 137 in | -33% | 4th |
| Width | 48 in | 66 in | -27% | 14th |
| Height | 53 in | 94.1 in | -44% | 4th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Cub Cadet models
Other manufacturers
Models with similar horsepower
Gallery

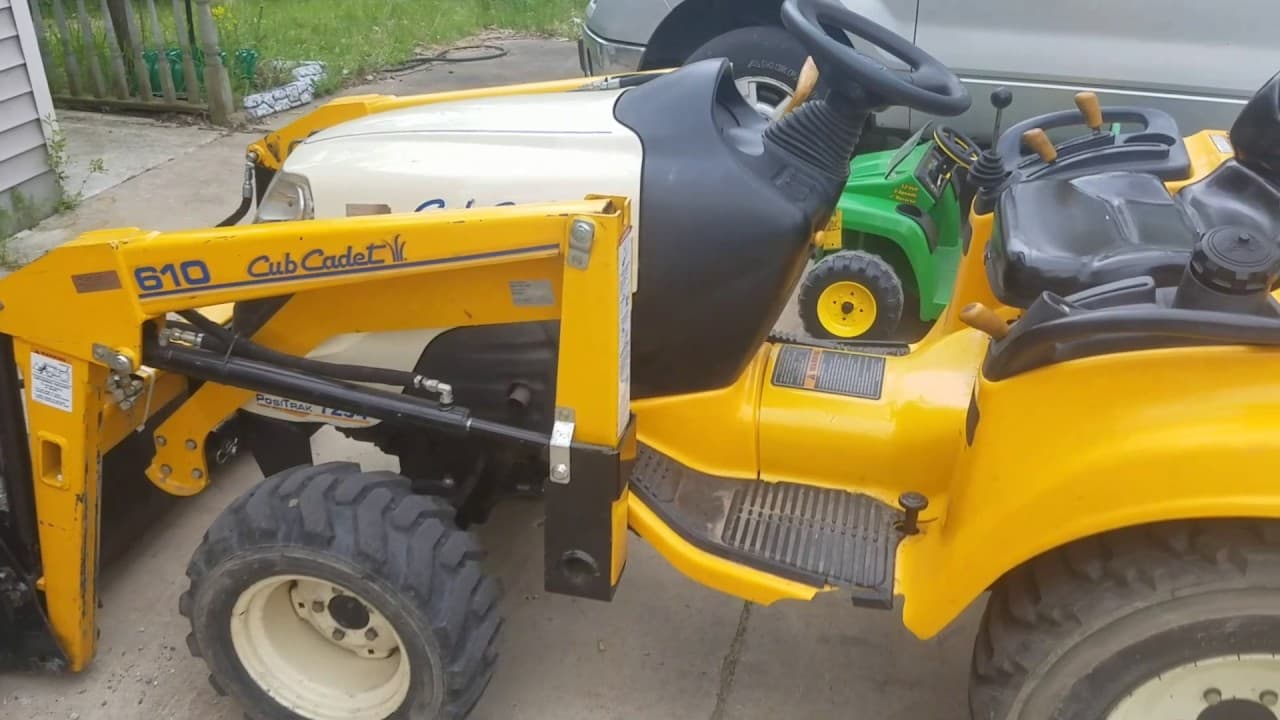

Cub Cadet 7254 photos
FAQ
Frequently asked questions
How much horsepower does the Cub Cadet 7254 have?
The Cub Cadet 7254 produces 25 hp from its 2-cylinder engine. Engine displacement is 45.6 ci.
What transmission is in the Cub Cadet 7254?
Transmission on the Cub Cadet 7254 is Hydrostatic.
How much does the Cub Cadet 7254 weigh?
The Cub Cadet 7254 weighs about 1,662 lb in operating condition.
What maintenance does the Cub Cadet 7254 require?
The Cub Cadet 7254 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
