Same brandLawn and Garden tractorsSpec sheet
Cub Cadet LTX 1050 KW

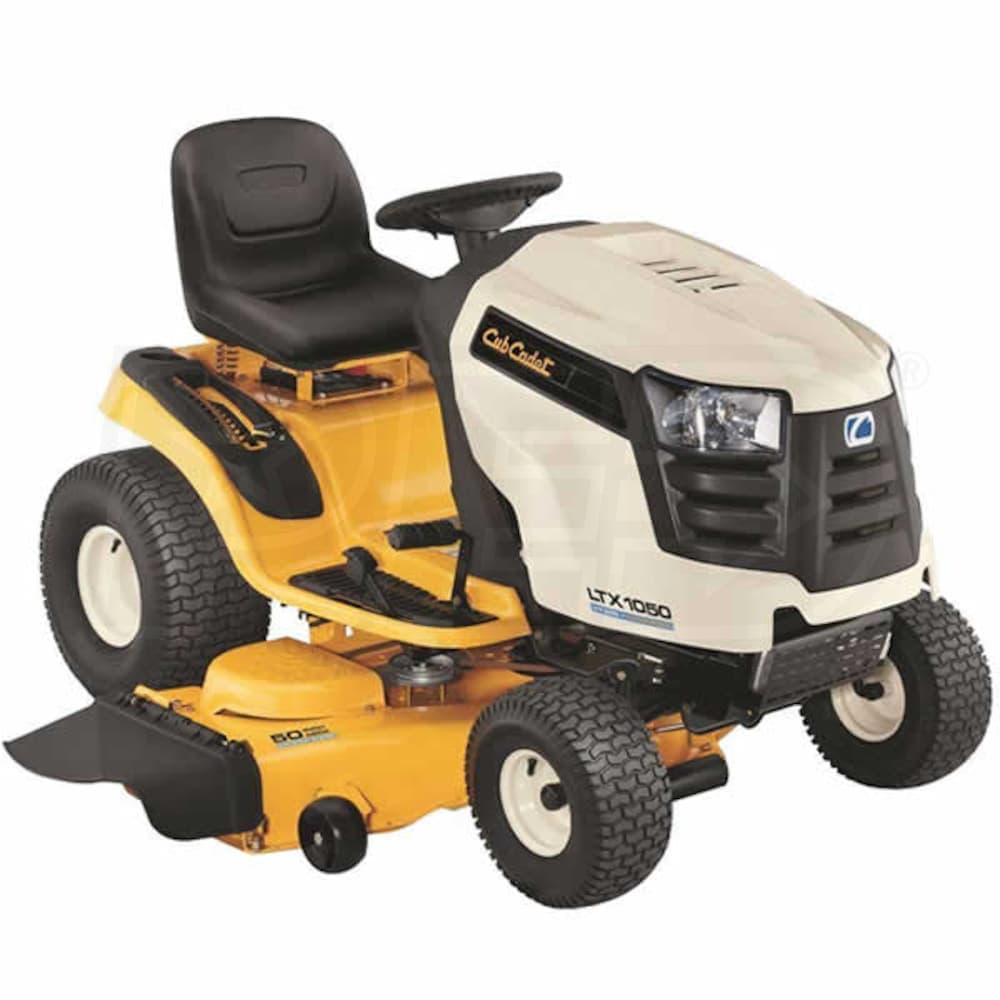

The Cub Cadet LTX 1050 KW is a lawn and garden tractor built from 2011 to 2014. It's designed for homeowners who need a reliable machine for mowing and light yard work. This tractor has a 2WD system with manual steering, making it easy to maneuver around gardens and lawns. Under the hood, you'll find a powerful Kawasaki FR651V engine. This air-cooled, V-twin gasoline engine packs 22 hp, which is above average for its class. The engine's 44.3 ci displacement is very high compared to similar tractors. The LTX 1050 KW features a hydrostatic transmission with infinite forward and reverse gears, allowing for smooth speed changes. It has an independent PTO with an electric clutch, perfect for attaching and using various lawn care tools. The tractor weighs 547 lb and has lawn/turf tires, with 15x6 in the front and 20x10 in the rear, providing good traction on grass.
ManufacturerCub CadetPower22 hp(16.4 kW)ClassUnder 25 HP tractors →Engine2-cylinderTransmissionHydrostatic
Key specifications
- Category
- Lawn and Garden
- Engine power
- 22hp
- Operating weight
- 547 lb
- Transmission
- Hydrostatic
Category comparison
LTX 1050 KW compared with its category
vs. Lawn and Garden medianDistribution
Engine Power (hp)
All recorded Lawn and Garden tractors
22 hp · 70th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The LTX 1050 KW ranks at the 70th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Cub Cadet LTX 1050 KW
The Cub Cadet LTX 1050 KW is a lawn and garden tractor built from 2011 to 2014. It's designed for homeowners who need a reliable machine for mowing and light yard work. This tractor has a 2WD system with manual steering, making it easy to maneuver around gardens and lawns. Under the hood, you'll find a powerful Kawasaki FR651V engine. This air-cooled, V-twin gasoline engine packs 22 hp, which is above average for its class. The engine's 44.3 ci displacement is very high compared to similar tractors. The LTX 1050 KW features a hydrostatic transmission with infinite forward and reverse gears, allowing for smooth speed changes. It has an independent PTO with an electric clutch, perfect for attaching and using various lawn care tools. The tractor weighs 547 lb and has lawn/turf tires, with 15x6 in the front and 20x10 in the rear, providing good traction on grass.
Full specifications
Recorded specifications
General
| Manufacturer | Cub Cadet |
|---|---|
| Model | LTX 1050 KW |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 2011–2014 |
| Operating weight | 547lb(248.1 kg) |
Engine
| Make | Kawasaki |
|---|---|
| Model | FR651V |
| Power | 22hp(16.41 kW) |
| Cylinders | 2 |
| Displacement | 44.3ci(0.73 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 2.99in(75.95 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual sector and pinion |
| Brakes | Disc |
| Cab | Open operator station |
Power take-off
| Rear PTO | Independent with electric clutch |
|---|
Dimensions
| Length | 68.9in(1,750 mm) |
|---|---|
| Operating weight | 547lb(248.1 kg) |
Closest alternatives
LTX 1050 KW compared with the nearest models by horsepower
Among lawn and garden tractors, the Cub Cadet XT1 LT46 and the Cub Cadet XT2 LX42 KH are closest to the Cub Cadet LTX 1050 KW in rated horsepower. The Cub Cadet XT1 LT46 matches it on rated power and weighs 140 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Cub Cadet XT2 LX42 KH matches it on rated power and weighs 100 lb less, carrying 20 lb per horsepower against 25 lb. Of the 3 models, the LTX 1050 KW has the highest weight per horsepower at 25 lb per hp.
| Spec | Cub Cadet LTX 1050 KW | Cub Cadet XT1 LT46 | Cub Cadet XT2 LX42 KH |
|---|---|---|---|
| Engine power | 22 hp16.4 kW | 22 hp16.4 kW | 22 hp16.4 kW |
| Operating weight | 547 lb248 kg | 408 lb185 kg | 450 lb204 kg |
| Weight per hp | 25 lb/hp15 kg/kW | 19 lb/hp11 kg/kW | 20 lb/hp12 kg/kW |
| Displacement | 44.3 ci0.73 L | 44.2 ci0.72 L | 44.2 ci0.72 L |
| Cylinders | 2 | 2 | 2 |
| Transmission | Hydrostatic | Belt-driven hydrostatic | Belt-driven hydrostatic |
| Drive | 2WD | 2WD | 2WD |
| Years built | 2011-2014 | 2015+ | 2015+ |
Calculators
Calculators for the LTX 1050 KW
PTO power
About 18 to 20 PTO hp
Estimated from the 22 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 22 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
29 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
22 hp is 16.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
LTX 1050 KW vs. Lawn and Garden median
Cub Cadet LTX 1050 KW compared with other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22 hp | 18 hp | +22% | 70th |
| Engine Displacement | 44.3 ci | 41.1 ci | +8% | 68th |
| Cylinders | 2 | 2 | at median | 50th |
| Operating Weight | 547 lb | 738 lb | -26% | 27th |
| Length | 68.9 in | 71.7 in | -4% | 38th |
Medians and percentiles are calculated from the lawn and garden tractors in the database that have a recorded value for each specification (sample size 314–380 models).
Same manufacturer
Other Cub Cadet models
Other manufacturers
Models with similar horsepower
Gallery
Cub Cadet LTX 1050 KW photos
FAQ
Frequently asked questions
When was the Cub Cadet LTX 1050 KW made?
The Cub Cadet LTX 1050 KW was manufactured from 2011 to 2014.
What is the operating weight of the Cub Cadet LTX 1050 KW?
The Cub Cadet LTX 1050 KW has an operating weight of about 547 lb.
Which transmission does the Cub Cadet LTX 1050 KW use?
The Cub Cadet LTX 1050 KW is equipped with a Hydrostatic transmission.
What is the engine power output of the Cub Cadet LTX 1050 KW?
Rated engine output for the Cub Cadet LTX 1050 KW is 22 hp, delivered by a 2-cylinder engine. The engine displaces 44.3 ci.
How do I maintain a Cub Cadet LTX 1050 KW?
Routine service for the Cub Cadet LTX 1050 KW covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
