Brand siblingAgriculturalPerformance profile
Custom H

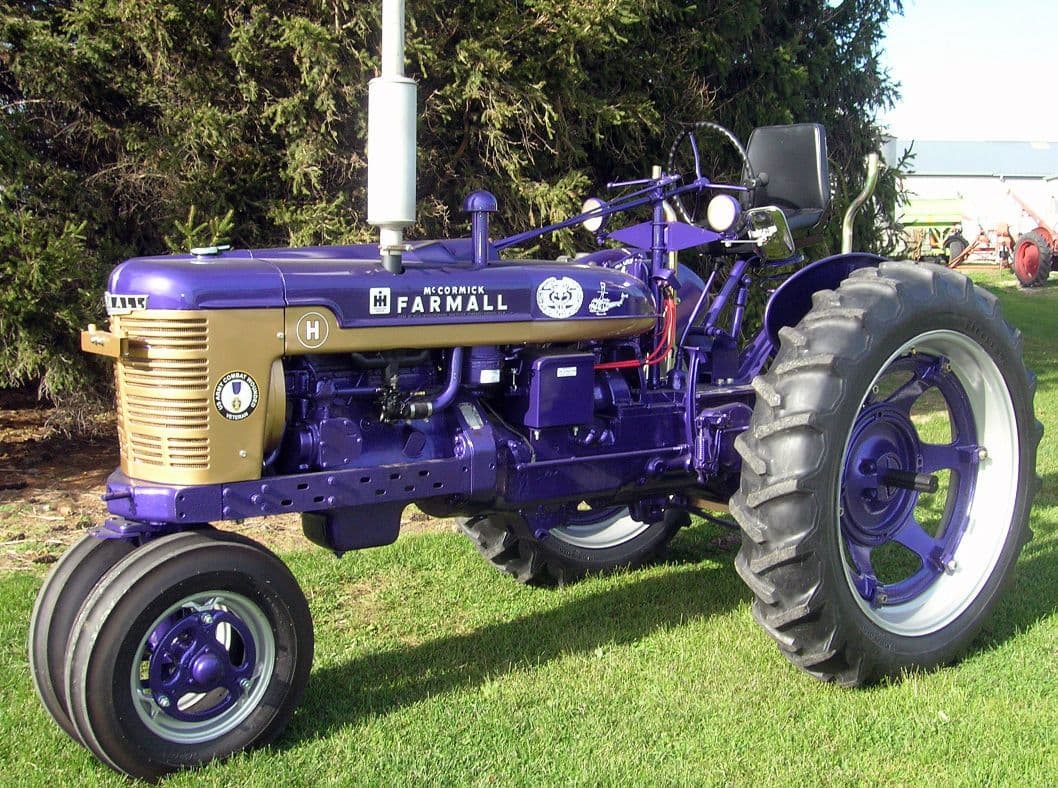

The Custom H tractor is a versatile machine built for farm work. It has a Chrysler 6A engine with 6 cylinders, running on gasoline. This engine is liquid-cooled and produces 56 horsepower at 1800 RPM, which is good for many farm tasks. The tractor has a gear transmission with 5 forward gears and 1 reverse gear. This gives the driver good control over speed and power. The Custom H is quite large, measuring 136.875 inches long and 80 inches tall. It weighs 4296 pounds, making it sturdy for tough jobs. The tractor uses agricultural tires on both front and rear, which are great for gripping in fields and on uneven ground.
ManufacturerCustomPower56 hpEngine6-cylTransGear
Quick specs
- Category
- Agricultural
- Engine Power Output
- 56hp
- Operating Weight
- 4,296 lb
- Transmission
- Gear
At a glance
How the H compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
56 hp · 12th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The H ranks at the 12th percentile for engine power among recorded agricultural tractors.
Overview
About the Custom H
The Custom H tractor is a versatile machine built for farm work. It has a Chrysler 6A engine with 6 cylinders, running on gasoline. This engine is liquid-cooled and produces 56 horsepower at 1800 RPM, which is good for many farm tasks. The tractor has a gear transmission with 5 forward gears and 1 reverse gear. This gives the driver good control over speed and power. The Custom H is quite large, measuring 136.875 inches long and 80 inches tall. It weighs 4296 pounds, making it sturdy for tough jobs. The tractor uses agricultural tires on both front and rear, which are great for gripping in fields and on uneven ground.
Full specifications
Every recorded spec
General
| Manufacturer | Custom |
|---|---|
| Model | H |
| Category | Agricultural tractor |
| Operating weight | 4,296lb |
Engine
| Make | Chrysler |
|---|---|
| Model | 6A |
| Power | 56hp |
| Cylinders | 6 |
| Displacement | 230.2ci |
| Bore | 3.25in |
| Stroke | 4.63in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Dimensions
| Length | 136.88in |
|---|---|
| Height | 80in |
| Operating weight | 4,296lb |
Head to head
H vs. Agricultural median
How the Custom H compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 56 hp | 110 hp | -49% | 12th |
| Engine Displacement | 230 ci | 336 ci | -31% | 21st |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 5 | 16 | -69% | 7th |
| Operating Weight | 4,296 lb | 10,914 lb | -61% | 8th |
| Length | 137 in | 173 in | -21% | 18th |
| Height | 80 in | 111 in | -28% | 13th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Custom tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT55 | 56 hp | 6,225 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400 | 56 hp | 3,571 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400F | 56 hp | 3,858 lb | — | Compare → |
| AGCO ST55 | 55.6 hp | 4,417 lb | — | Compare → |
| Allis Chalmers 615 | 56.9 hp | — | 1966–1974 | Compare → |
Explore
Custom siblings
Explore
Similar-spec models
Gallery
Custom H photos
FAQ
Common questions
What is the engine power output of the Custom H?
Rated engine output for the Custom H is 56 hp, delivered by a 6-cylinder engine. The engine displaces 230.2 ci.
What is the operating weight of the Custom H?
In working trim, the Custom H comes in at roughly 4,296 lb.
Which transmission does the Custom H use?
The Custom H is equipped with a Gear transmission with 5 forward gears.
How do I maintain a Custom H?
Routine service for the Custom H covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
