Same brandDeutz-Fahr Agrotron 230
The Deutz-Fahr Agrotron 230 is a powerful 4WD tractor built for tough farm work. It has a strong Deutz diesel engine with 6 cylinders and 230 horsepower. This engine is turbocharged, which means it can do more work with less fuel. The tractor has a manual transmission with 40 forward gears and 40 reverse gears, giving the driver lots of control. This Agrotron model is big and sturdy. It's about 202 inches long and 129 inches tall. It weighs 19,249 pounds, which helps it grip the ground well. The tractor has special ag tires on both the front and back to handle farm fields. With its 4x4 MFWD (Mechanical Front Wheel Drive) system, it can tackle tough terrain and pull heavy loads easily.

Key specifications
- Category
- Agricultural
- Engine power
- 230hp
- Operating weight
- 19,249 lb
- Transmission
- Manual
Category comparison
Agrotron 230 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
This model
The Agrotron 230 ranks at the 85th percentile for engine power among recorded agricultural tractors.
Overview
About the Deutz-Fahr Agrotron 230
The Deutz-Fahr Agrotron 230 is a powerful 4WD tractor built for tough farm work. It has a strong Deutz diesel engine with 6 cylinders and 230 horsepower. This engine is turbocharged, which means it can do more work with less fuel. The tractor has a manual transmission with 40 forward gears and 40 reverse gears, giving the driver lots of control. This Agrotron model is big and sturdy. It's about 202 inches long and 129 inches tall. It weighs 19,249 pounds, which helps it grip the ground well. The tractor has special ag tires on both the front and back to handle farm fields. With its 4x4 MFWD (Mechanical Front Wheel Drive) system, it can tackle tough terrain and pull heavy loads easily.
Full specifications
Recorded specifications
General
| Manufacturer | Deutz-Fahr |
|---|---|
| Model | Agrotron 230 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 19,249lb(8,731 kg) |
Engine
| Make | Deutz |
|---|---|
| Power | 230hp(171.5 kW) |
| Cylinders | 6 |
| Displacement | 436.05ci(7.15 L) |
| Bore | 4.25in(108 mm) |
| Stroke | 5.12in(130 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 40 |
| Reverse gears | 40 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 201.97in(5,130 mm) |
|---|---|
| Height | 128.74in(3,270 mm) |
| Operating weight | 19,249lb(8,731 kg) |
Closest alternatives
Agrotron 230 compared with the nearest models by horsepower
The closest agricultural models to the Deutz-Fahr Agrotron 230 by rated horsepower are the Deutz-Fahr AgroStar 8.31 and the Fendt Favorit 824. The Deutz-Fahr AgroStar 8.31 matches it on rated power at almost the same operating weight. The Fendt Favorit 824 matches it on rated power and weighs 1,850 lb less, carrying 76 lb per horsepower against 84 lb.
| Spec | Deutz-Fahr Agrotron 230 | Deutz-Fahr AgroStar 8.31 | Fendt Favorit 824 |
|---|---|---|---|
| Engine power | 230 hp171.5 kW | 230 hp171.5 kW | 230 hp171.5 kW |
| Operating weight | 19,249 lb8,731 kg | 19,293 lb8,751 kg | 17,397 lb7,891 kg |
| Weight per hp | 84 lb/hp51 kg/kW | 84 lb/hp51 kg/kW | 76 lb/hp46 kg/kW |
| Displacement | 436.1 ci7.15 L | 584 ci9.57 L | 419.2 ci6.87 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Manual | Manual | Manual |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the Agrotron 230
PTO power
About 191 to 207 PTO hp
Estimated from the 230 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 230 hp tractor can run
Maximum size is about a 27.5 ft rotary cutter or a 23.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
97 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
230 hp is 171.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Deutz-Fahr Agrotron 230
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the DeutzAmazon
Fits the Deutz 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Deutz-Fahr Agrotron 230 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Deutz-Fahr Agrotron 230 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Deutz-Fahr Agrotron 230 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Agrotron 230 vs. Agricultural median
Deutz-Fahr Agrotron 230 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 230 hp | 110 hp | +109% | 85th |
| Engine Displacement | 436 ci | 336 ci | +30% | 76th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 40 | 16 | +150% | 96th |
| Operating Weight | 19,249 lb | 10,914 lb | +76% | 81st |
| Length | 202 in | 173 in | +17% | 79th |
| Height | 129 in | 111 in | +16% | 89th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 795–1,130 models).
Same manufacturer
Other Deutz-Fahr models
Other manufacturers
Models with similar horsepower
Gallery

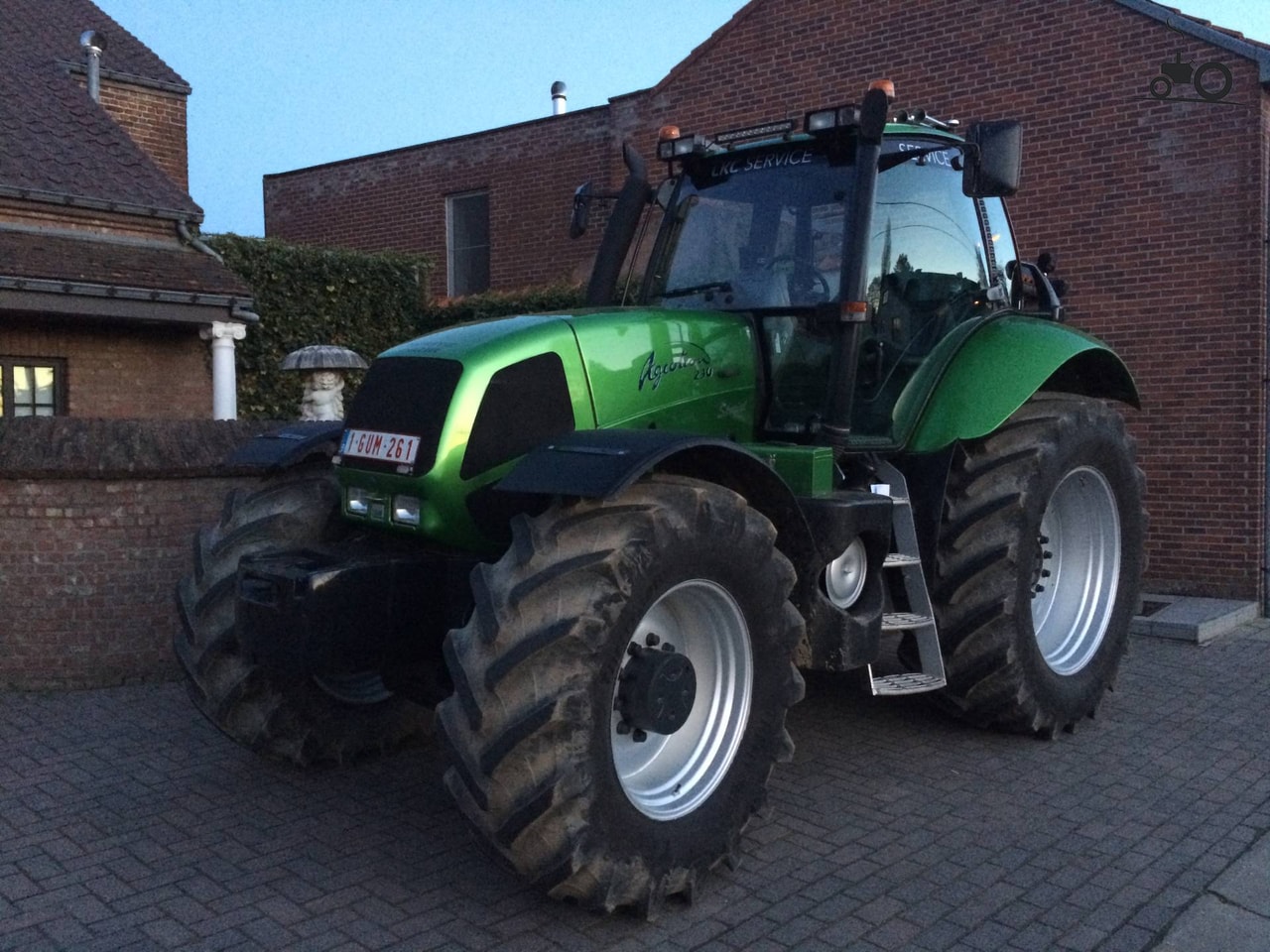

Deutz-Fahr Agrotron 230 photos



FAQ
Frequently asked questions
What is the engine power output of the Deutz-Fahr Agrotron 230?
Rated engine output for the Deutz-Fahr Agrotron 230 is 230 hp, delivered by a 6-cylinder engine. The engine displaces 436.05 ci.
Which transmission does the Deutz-Fahr Agrotron 230 use?
The Deutz-Fahr Agrotron 230 is equipped with a Manual transmission with 40 forward gears.
What is the operating weight of the Deutz-Fahr Agrotron 230?
The Deutz-Fahr Agrotron 230 has an operating weight of about 19,249 lb.
How do I maintain a Deutz-Fahr Agrotron 230?
Routine service for the Deutz-Fahr Agrotron 230 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
