Row CropPerformance profile

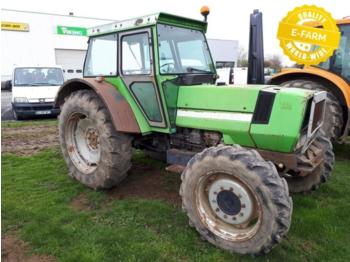

Deutz-Fahr DX 90
The Deutz-Fahr DX 90 is a row crop tractor made from 1978 to 1983. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor comes with a fully synchronized transmission that offers 15 forward gears and 5 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the DX 90 has a Deutz-Fahr F5L 912 engine. This 5-cylinder diesel engine is air-cooled and naturally aspirated. It has an average displacement of 287.4 ci and produces 102 hp at 2300 rpm, which is slightly above average for its class. The tractor weighs 9856 lb and measures 170.1 inches long and 102.4 inches tall. It's equipped with agricultural tires and a Category II rear hitch, making it suitable for various farming operations.
ManufacturerDeutz-FahrPower102 hpEngine5-cylTransFully synchronized
Quick specs
- Category
- Row Crop
- Engine Power Output
- 102hp
- Operating Weight
- 9,856 lb
- Transmission
- Fully synchronized
At a glance
How the DX 90 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
102 hp · 26th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The DX 90 ranks at the 26th percentile for engine power among recorded row crop tractors.
Overview
About the Deutz-Fahr DX 90
The Deutz-Fahr DX 90 is a row crop tractor made from 1978 to 1983. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor comes with a fully synchronized transmission that offers 15 forward gears and 5 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the DX 90 has a Deutz-Fahr F5L 912 engine. This 5-cylinder diesel engine is air-cooled and naturally aspirated. It has an average displacement of 287.4 ci and produces 102 hp at 2300 rpm, which is slightly above average for its class. The tractor weighs 9856 lb and measures 170.1 inches long and 102.4 inches tall. It's equipped with agricultural tires and a Category II rear hitch, making it suitable for various farming operations.
Full specifications
Every recorded spec
General
| Manufacturer | Deutz-Fahr |
|---|---|
| Model | DX 90 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1978–1983 |
| Operating weight | 9,856lb |
Engine
| Make | Deutz-Fahr |
|---|---|
| Model | F5L 912 |
| Power | 102hp |
| Cylinders | 5 |
| Displacement | 287.4ci |
| Bore | 3.94in |
| Stroke | 4.72in |
Transmission
| Type | Fully synchronized |
|---|---|
| Forward gears | 15 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 170.1in |
|---|---|
| Height | 102.4in |
| Operating weight | 9,856lb |
Head to head
DX 90 vs. Row Crop median
How the Deutz-Fahr DX 90 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 102 hp | 138 hp | -26% | 26th |
| Engine Displacement | 287 ci | 391 ci | -26% | 29th |
| Cylinders | 5 | 6 | -17% | 31st |
| Forward Gears | 15 | 16 | -6% | 33rd |
| Operating Weight | 9,856 lb | 12,307 lb | -20% | 31st |
| Length | 170 in | 180 in | -5% | 36th |
| Height | 102 in | 114 in | -10% | 24th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared Deutz-Fahr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Deutz-Fahr Agrotron 106 MK3 | 102 hp | 11,047 lb | — | Compare → |
| Deutz-Fahr DX 110 | 102 hp | 10,297 lb | — | Compare → |
| Deutz-Fahr Agrotron 105 | 100 hp | 9,922 lb | — | Compare → |
| Deutz-Fahr Agrotron 105 MK3 | 100 hp | 10,253 lb | — | Compare → |
| Deutz-Fahr Agrotron 106 | 100 hp | 11,047 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
Explore
Deutz-Fahr siblings
Explore
Similar-spec models
Gallery
Deutz-Fahr DX 90 photos
FAQ
Common questions
When was the Deutz-Fahr DX 90 made?
The Deutz-Fahr DX 90 was manufactured from 1978 to 1983.
What hitch category is the Deutz-Fahr DX 90?
The Deutz-Fahr DX 90 uses a Category II hitch.
What is the engine power output of the Deutz-Fahr DX 90?
Rated engine output for the Deutz-Fahr DX 90 is 102 hp, delivered by a 5-cylinder engine. The engine displaces 287.4 ci.
What is the operating weight of the Deutz-Fahr DX 90?
In working trim, the Deutz-Fahr DX 90 comes in at roughly 9,856 lb.
Which transmission does the Deutz-Fahr DX 90 use?
The Deutz-Fahr DX 90 is equipped with a Fully synchronized transmission with 15 forward gears.
How do I maintain a Deutz-Fahr DX 90?
Routine service for the Deutz-Fahr DX 90 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
