Row Crop tractorsSpec sheet
Deutz-Fahr Agrotron 110
The Deutz-Fahr Agrotron 110 is a powerful row crop tractor built for tough farm work. It has a strong 4-wheel drive system that helps it handle rough terrain. The tractor is powered by a Deutz diesel engine with 6 cylinders and 105 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The Agrotron 110 has a special transmission with 24 forward and 24 reverse gears. This gives the driver lots of options to find the right speed for any job. The tractor is big and sturdy, measuring 178 inches long and 113 inches tall. It weighs 11,047 pounds, which is about average for tractors of this type. The tractor has a Category III/II hitch, making it easy to attach different farm tools. It also has a comfortable cab for the driver to work in all day long. Deutz-Fahr is known for making reliable tractors, and the Agrotron 110 is no exception. Its engine size and power are average compared to other tractors, but it has a very high engine speed. This means it can work quickly and efficiently on many farm tasks. With its mix of power, comfort, and versatility, the Agrotron 110 is a great choice for farmers who need a dependable tractor for their fields.
ManufacturerDeutz-FahrPower105 hp(78.3 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionFour-speed power shift
Key specifications
- Category
- Row Crop
- Engine power
- 105hp
- Operating weight
- 11,047 lb
- Transmission
- Four-speed power shift
Category comparison
Agrotron 110 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
105 hp · 28th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Agrotron 110 ranks at the 28th percentile for engine power among recorded row crop tractors.
Overview
About the Deutz-Fahr Agrotron 110
The Deutz-Fahr Agrotron 110 is a powerful row crop tractor built for tough farm work. It has a strong 4-wheel drive system that helps it handle rough terrain. The tractor is powered by a Deutz diesel engine with 6 cylinders and 105 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The Agrotron 110 has a special transmission with 24 forward and 24 reverse gears. This gives the driver lots of options to find the right speed for any job. The tractor is big and sturdy, measuring 178 inches long and 113 inches tall. It weighs 11,047 pounds, which is about average for tractors of this type. The tractor has a Category III/II hitch, making it easy to attach different farm tools. It also has a comfortable cab for the driver to work in all day long. Deutz-Fahr is known for making reliable tractors, and the Agrotron 110 is no exception. Its engine size and power are average compared to other tractors, but it has a very high engine speed. This means it can work quickly and efficiently on many farm tasks. With its mix of power, comfort, and versatility, the Agrotron 110 is a great choice for farmers who need a dependable tractor for their fields.
Full specifications
Recorded specifications
General
| Manufacturer | Deutz-Fahr |
|---|---|
| Model | Agrotron 110 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 11,047lb(5,011 kg) |
Engine
| Make | Deutz |
|---|---|
| Model | BF6L1012E |
| Power | 105hp(78.3 kW) |
| Cylinders | 6 |
| Displacement | 292.16ci(4.79 L) |
| Bore | 3.7in(93.98 mm) |
| Stroke | 4.52in(114.8 mm) |
Transmission
| Type | Four-speed power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 178in(4,521 mm) |
|---|---|
| Height | 113in(2,870 mm) |
| Operating weight | 11,047lb(5,011 kg) |
Tires
| Front | 16.9 |
|---|---|
| Rear | 18.4 |
Closest alternatives
Agrotron 110 compared with the nearest models by horsepower
The closest row crop models to the Deutz-Fahr Agrotron 110 by rated horsepower are the Massey Ferguson 6265 and the CaseIH 5130. The Massey Ferguson 6265 matches it on rated power and weighs 1,060 lb less, carrying 95 lb per horsepower against 105 lb. The CaseIH 5130 matches it on rated power and weighs 1,590 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Agrotron 110 has the highest weight per horsepower at 105 lb per hp.
| Spec | Deutz-Fahr Agrotron 110 | Massey Ferguson 6265 | CaseIH 5130 |
|---|---|---|---|
| Engine power | 105 hp78.3 kW | 105 hp78.3 kW | 105 hp78.3 kW |
| Operating weight | 11,047 lb5,011 kg | 9,985 lb4,529 kg | 9,458 lb4,290 kg |
| Weight per hp | 105 lb/hp64 kg/kW | 95 lb/hp58 kg/kW | 90 lb/hp55 kg/kW |
| Displacement | 292.2 ci4.79 L | 243.5 ci3.99 L | 359 ci5.88 L |
| Cylinders | 6 | 4 | 6 |
| Transmission | Four-speed power shift | Four-speed power shift (DynaShift, DynaShuttle) | Power shuttle |
| Drive | 4WD | 2WD | 2WD |
| Years built | - | 1999-2003 | 1990-1997 |
Calculators
Calculators for the Agrotron 110
PTO power
About 87 to 95 PTO hp
Estimated from the 105 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 105 hp tractor can run
Maximum size is about a 12.5 ft rotary cutter or a 10.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
122 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
105 hp is 78.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Agrotron 110 vs. Row Crop median
Deutz-Fahr Agrotron 110 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 138 hp | -24% | 28th |
| Engine Displacement | 292 ci | 391 ci | -25% | 31st |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 11,047 lb | 12,307 lb | -10% | 39th |
| Length | 178 in | 180 in | -1% | 48th |
| Height | 113 in | 114 in | 0% | 47th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 1,140–1,417 models).
Same manufacturer
Other Deutz-Fahr models
Other manufacturers
Models with similar horsepower
Gallery

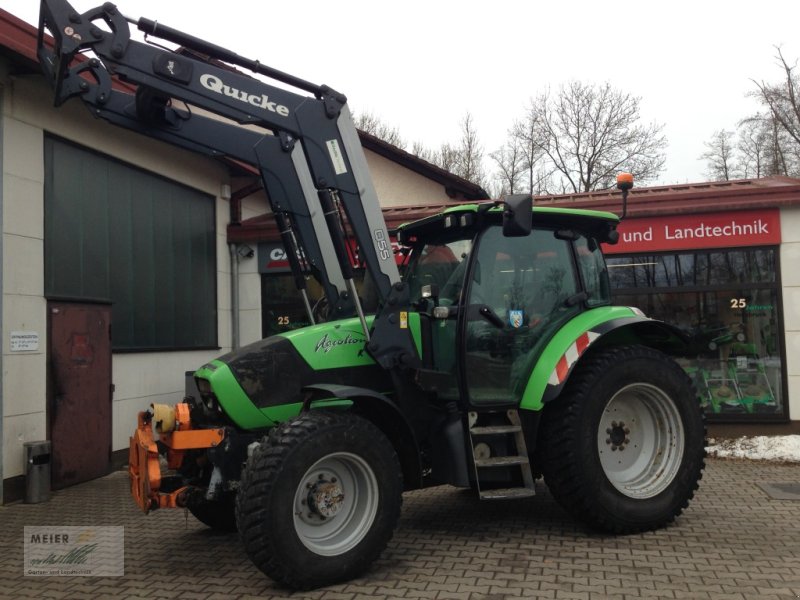

Deutz-Fahr Agrotron 110 photos
FAQ
Frequently asked questions
What is the engine power output of the Deutz-Fahr Agrotron 110?
Rated engine output for the Deutz-Fahr Agrotron 110 is 105 hp, delivered by a 6-cylinder engine. The engine displaces 292.16 ci.
What is the operating weight of the Deutz-Fahr Agrotron 110?
The Deutz-Fahr Agrotron 110 has an operating weight of about 11,047 lb.
Which transmission does the Deutz-Fahr Agrotron 110 use?
The Deutz-Fahr Agrotron 110 is equipped with a Four-speed power shift transmission with 24 forward gears.
What are the factory tire sizes for the Deutz-Fahr Agrotron 110?
The Deutz-Fahr Agrotron 110 comes with 16.9 front tires and 18.4 rear tires.
What three-point hitch category does the Deutz-Fahr Agrotron 110 use?
The Deutz-Fahr Agrotron 110 has a Category III/II three-point hitch.
How do I maintain a Deutz-Fahr Agrotron 110?
Routine service for the Deutz-Fahr Agrotron 110 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
