Utility
Eagle Manufacturing H 16-30
The Eagle Manufacturing H 16-30 is a utility tractor built for standard tread applications. This 2WD tractor has a manual steering system and a gear transmission with 2 forward gears and 1 reverse gear. It's powered by a liquid-cooled, 2-cylinder kerosene engine with a very high displacement of 804 ci. The engine features 4 valves and is naturally aspirated, running at a low 450 rpm. This tractor is quite large, measuring 141 inches long, 70 inches wide, and 78 inches tall. It's a heavy machine, weighing 7,100 lb, which is above average for its class. The H 16-30 has steel rear tires that are 52 inches in diameter and 12 inches wide. One unique feature is its hand-crank starter, which was common for tractors of its era. The H 16-30 is designed for farmers who need a sturdy, powerful utility tractor for various farm tasks.
ManufacturerEagle ManufacturingEngine2-cylTransGear
Quick specs
- Category
- Utility
- Operating Weight
- 7,100 lb
- Transmission
- Gear
Overview
About the Eagle Manufacturing H 16-30
The Eagle Manufacturing H 16-30 is a utility tractor built for standard tread applications. This 2WD tractor has a manual steering system and a gear transmission with 2 forward gears and 1 reverse gear. It's powered by a liquid-cooled, 2-cylinder kerosene engine with a very high displacement of 804 ci. The engine features 4 valves and is naturally aspirated, running at a low 450 rpm. This tractor is quite large, measuring 141 inches long, 70 inches wide, and 78 inches tall. It's a heavy machine, weighing 7,100 lb, which is above average for its class. The H 16-30 has steel rear tires that are 52 inches in diameter and 12 inches wide. One unique feature is its hand-crank starter, which was common for tractors of its era. The H 16-30 is designed for farmers who need a sturdy, powerful utility tractor for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Eagle Manufacturing |
|---|---|
| Model | H 16-30 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,100lb |
Engine
| Make | Eagle Manufacturing |
|---|---|
| Cylinders | 2 |
| Displacement | 804ci |
| Bore | 8in |
| Stroke | 8in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 2 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 141in |
|---|---|
| Width | 70in |
| Height | 78in |
| Operating weight | 7,100lb |
Head to head
H 16-30 vs. Utility median
How the Eagle Manufacturing H 16-30 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 804 ci | 183 ci | +339% | 97th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 2 | 12 | -83% | 1st |
| Operating Weight | 7,100 lb | 5,303 lb | +34% | 68th |
| Length | 141 in | 137 in | +3% | 56th |
| Width | 70 in | 66 in | +6% | 61st |
| Height | 78 in | 94.1 in | -17% | 24th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
- Eagle Manufacturing H 16-30 vs. Eagle Manufacturing E 20-35 →
- Eagle Manufacturing H 16-30 vs. Fox River Tractor Company 18-35 →
- Eagle Manufacturing H 16-30 vs. Fox River Tractor Company 20-40 →
- Eagle Manufacturing H 16-30 vs. Eagle Manufacturing H 20-40 →
- Eagle Manufacturing H 16-30 vs. The Elmer Co. 20-40 →
Commonly compared Eagle Manufacturing tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Eagle Manufacturing 6A | — | 5,000 lb | — | Compare → |
| Eagle Manufacturing 6C | — | 3,250 lb | — | Compare → |
| Eagle Manufacturing D 12-22 | — | 5,200 lb | — | Compare → |
| Eagle Manufacturing D 16-30 | — | — | — | Compare → |
| Eagle Manufacturing D 8-16 | — | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Eagle Manufacturing siblings
Explore
Similar-spec models
Gallery

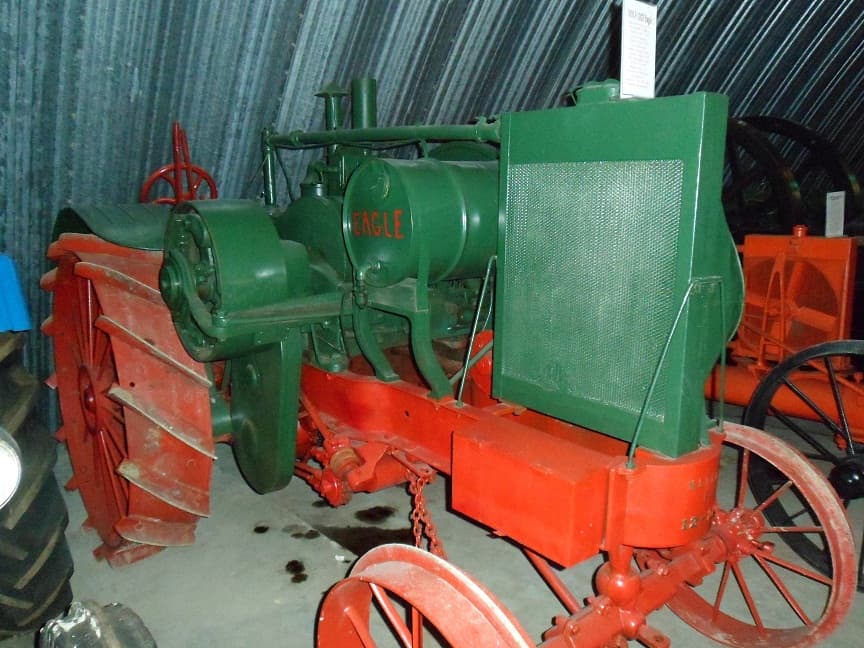

Eagle Manufacturing H 16-30 photos
FAQ
Common questions
What engine configuration does the Eagle Manufacturing H 16-30 use?
The Eagle Manufacturing H 16-30 is equipped with a 2-cylinder engine displacing 804 ci.
How much does the Eagle Manufacturing H 16-30 weigh?
The Eagle Manufacturing H 16-30 weighs about 7,100 lb in operating condition.
What transmission is in the Eagle Manufacturing H 16-30?
Transmission on the Eagle Manufacturing H 16-30 is Gear, with 2 forward speeds.
What maintenance does the Eagle Manufacturing H 16-30 require?
Like any tractor, the Eagle Manufacturing H 16-30 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
