Row Crop
Farmall 756
The Farmall 756 is a row crop tractor made from 1967 to 1971. It's a 2WD tractor with hydrostatic power steering, making it easy to control. The tractor has a gear-type transmission with 8 forward and 4 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmall 756 has a 6-cylinder diesel engine made by International Harvester. The engine is liquid-cooled and has an average displacement of 310 ci. It runs at a very high 2300 rpm, which means it can handle tough jobs. The tractor weighs 8350 lb, which is on the lighter side compared to other tractors. It has a rear hitch for attaching tools and two PTO speeds (540 and 1000 rpm) for powering equipment. Farmers can also add extras like hydraulic remotes and a differential lock if they need them.
ManufacturerFarmallEngine6-cylTransGear type with dry disc clutch
Quick specs
- Category
- Row Crop
- Operating Weight
- 8,350 lb
- Transmission
- Gear type with dry disc clutch
Overview
About the Farmall 756
The Farmall 756 is a row crop tractor made from 1967 to 1971. It's a 2WD tractor with hydrostatic power steering, making it easy to control. The tractor has a gear-type transmission with 8 forward and 4 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the Farmall 756 has a 6-cylinder diesel engine made by International Harvester. The engine is liquid-cooled and has an average displacement of 310 ci. It runs at a very high 2300 rpm, which means it can handle tough jobs. The tractor weighs 8350 lb, which is on the lighter side compared to other tractors. It has a rear hitch for attaching tools and two PTO speeds (540 and 1000 rpm) for powering equipment. Farmers can also add extras like hydraulic remotes and a differential lock if they need them.
Full specifications
Every recorded spec
General
| Manufacturer | Farmall |
|---|---|
| Model | 756 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1967–1971 |
| Operating weight | 8,350lb |
Engine
| Make | International Harvester |
|---|---|
| Model | D310 |
| Cylinders | 6 |
| Displacement | 310ci |
| Bore | 3.88in |
| Stroke | 4.38in |
Transmission
| Type | Gear type with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Independent hydraulic disc |
| Cab | Open operator station |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 163.8in |
|---|---|
| Width | 91.7in |
| Height | 81.9in |
| Operating weight | 8,350lb |
Tires
| Front | 6.50-16 |
|---|---|
| Rear | 15.5-38 |
Capacities
| Cooling system | 5.88gal |
|---|
Head to head
756 vs. Row Crop median
How the Farmall 756 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 310 ci | 391 ci | -21% | 33rd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 8,350 lb | 12,307 lb | -32% | 22nd |
| Length | 164 in | 180 in | -9% | 28th |
| Width | 91.7 in | 91.2 in | +1% | 51st |
| Height | 81.9 in | 114 in | -28% | 14th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Farmall tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Farmall 100 | — | 3,000 lb | 1954–1956 | Compare → |
| Farmall 1066 | 108 hp | 12,150 lb | 1971–1976 | Compare → |
| Farmall 1206 | 110 hp | 10,115 lb | 1965–1967 | Compare → |
| Farmall 1256 | 113 hp | 10,405 lb | 1967–1969 | Compare → |
| Farmall 130 | — | 2,800 lb | 1956–1958 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Farmall siblings
Explore
Similar-spec models
Gallery

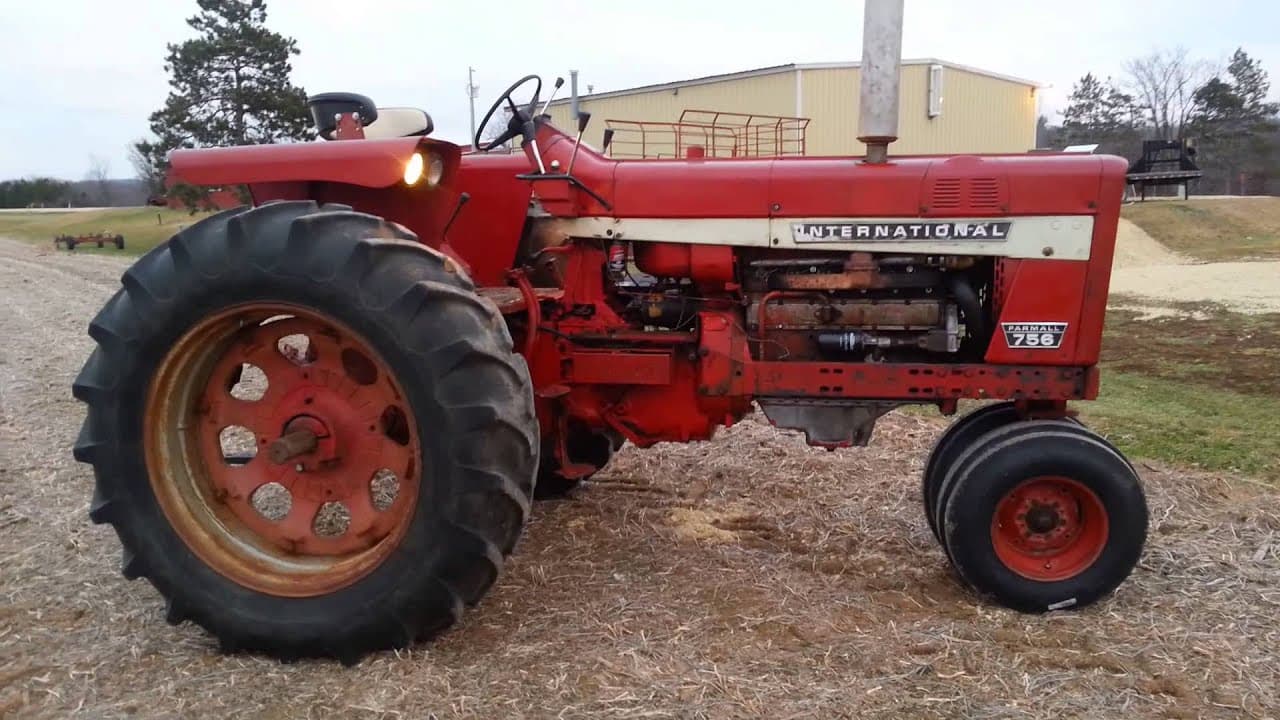

Farmall 756 photos
FAQ
Common questions
When was the Farmall 756 in production?
Farmall 756 production started in 1967 and ended in 1971.
What engine configuration does the Farmall 756 use?
The Farmall 756 is equipped with a 6-cylinder engine displacing 310 ci.
How much does the Farmall 756 weigh?
The Farmall 756 weighs about 8,350 lb in operating condition.
What transmission is in the Farmall 756?
Transmission on the Farmall 756 is Gear type with dry disc clutch, with 8 forward speeds.
What are the factory tire sizes for the Farmall 756?
The Farmall 756 comes with 6.50-16 front tires and 15.5-38 rear tires.
What three-point hitch category does the Farmall 756 use?
The Farmall 756 has a Category II three-point hitch.
What maintenance does the Farmall 756 require?
Like any tractor, the Farmall 756 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
